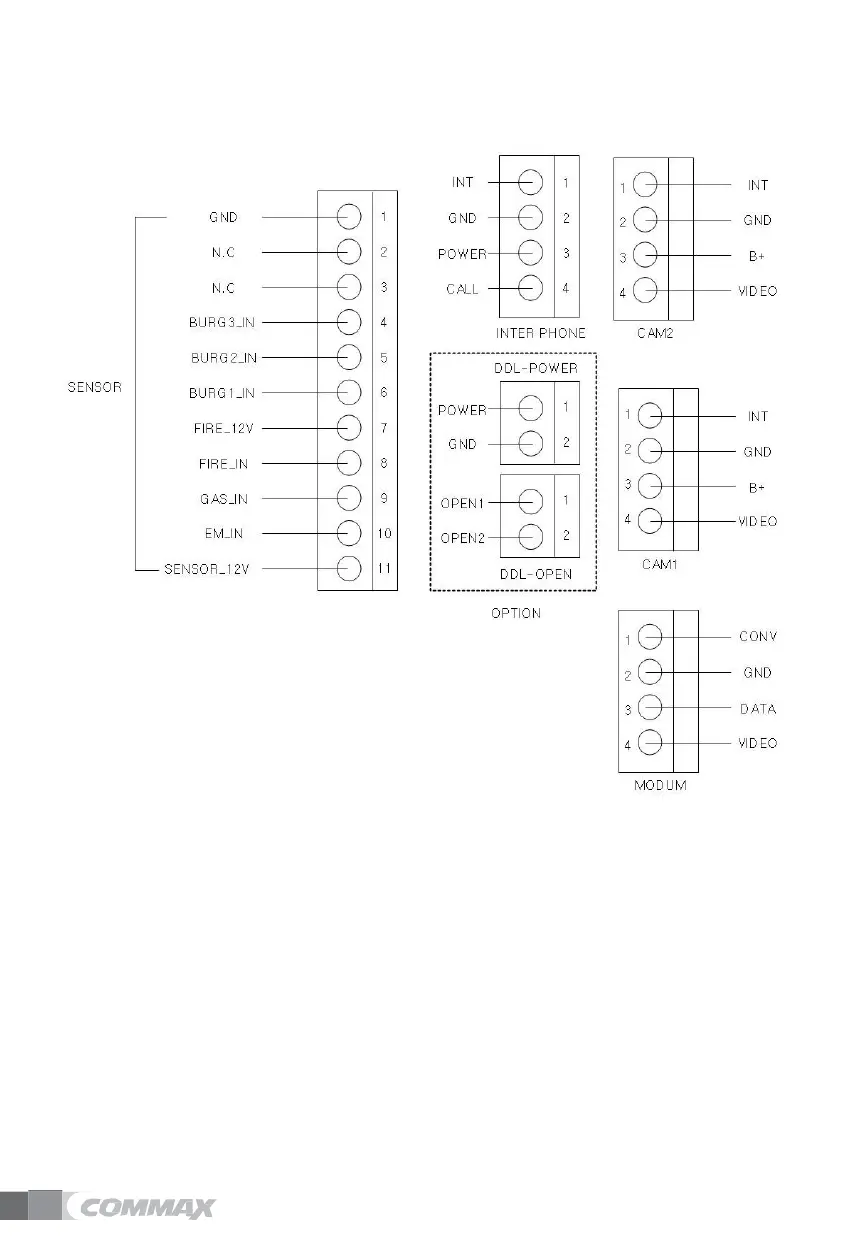

10.Wiring Diagram and components
Precautions when wiring
1)
When installing in the area where the high-voltage line passes around, use the coaxial wire to wire the
metal pipe.
2)
It may be short-circuited if internal wires are exposed due to scratches on the wire sheath, which may
cause malfunction.
3)
Turn off the monitor’s power switch when connecting the monitor to the camera.
4)
The wiring between camera and monitor is polarity.
5)
When connecting various sensors, be careful about power and polarity..
