Commell MS-C75 - CPU and Memory Setup

MS-C75 User’s Manual
-13-
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket rPGA988 for Intel Ivy Bridge Processor, Please
follow the instructions to install the CPU properly.

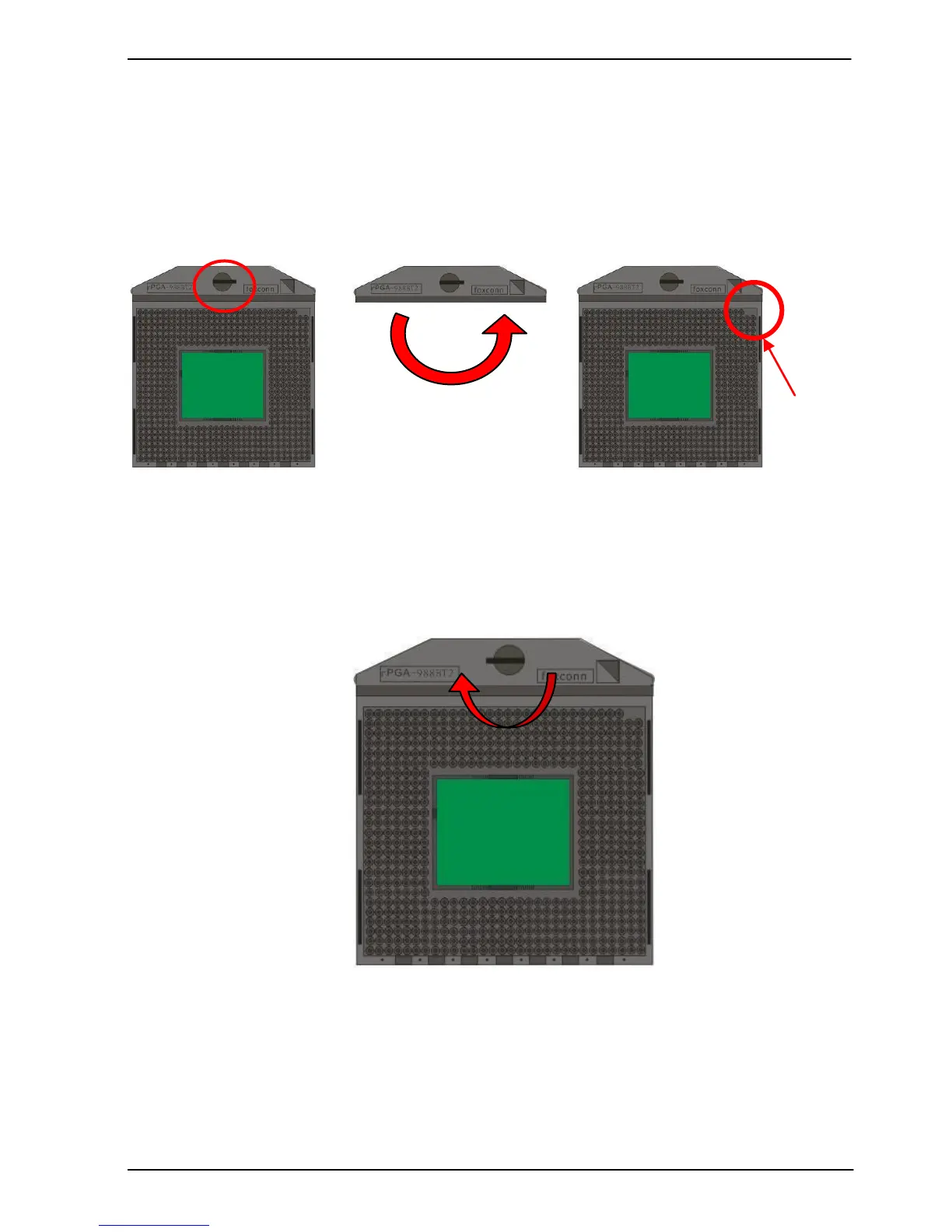

1. Use a slotted screwdrive to
unlock the CPU socket
Unlock way
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Socket CPU
Check point
