2.15 <Switch and Indicator>
The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.

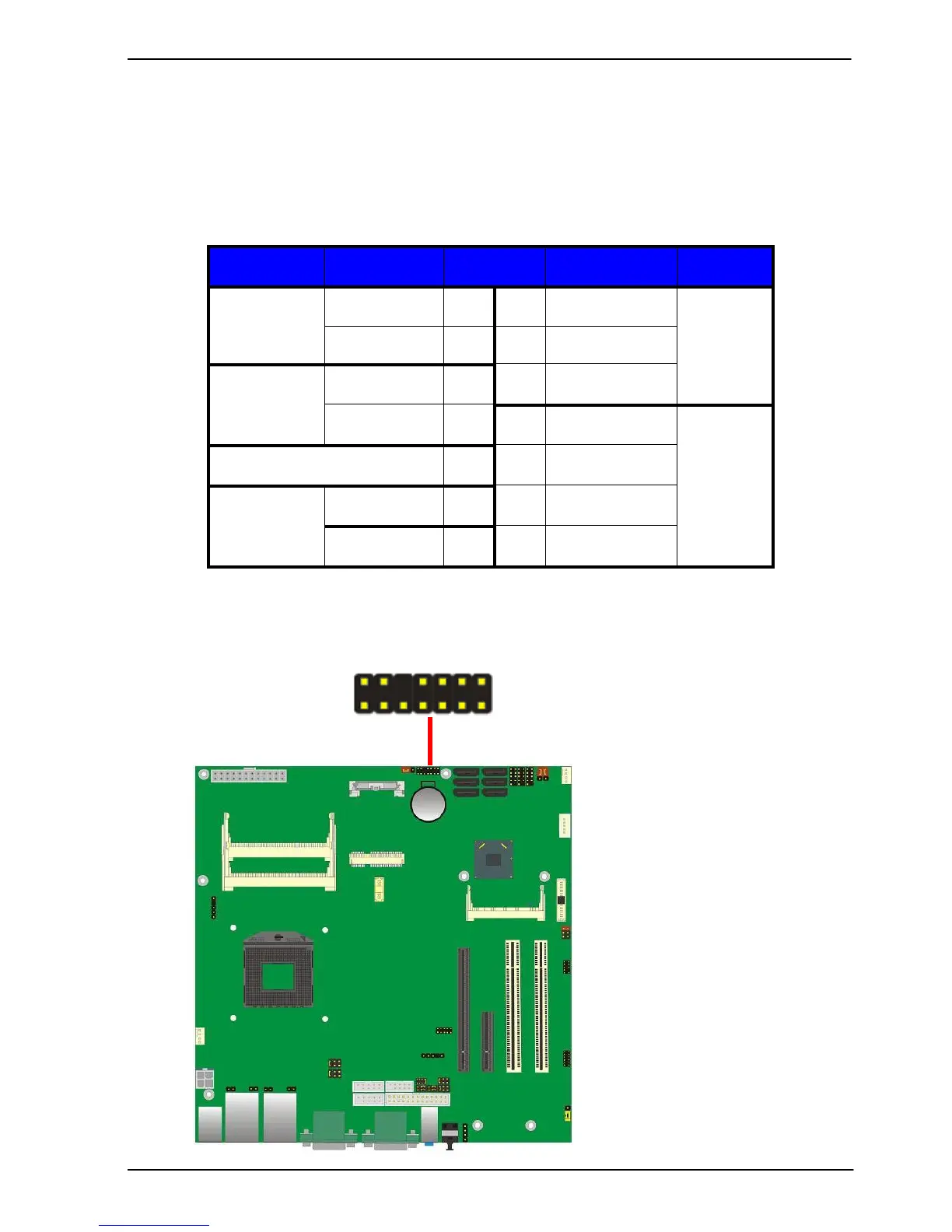

Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function
Signal
PIN
Signal
Function
IDE LED
HDLED+
1
2
PWRLED+
Power
LED
HDLED-
3
4
N/C
Reset
Reset+
5
6
PWRLED-
Reset-
7
8
SPK+
Speaker
N/C
9
10
N/C
Power
Button
PWRBT+
11
12
N/C
PWRBT-
13
14
SPK-
13 1
JFRNT
14 2
