2.8.2 <Digital Display>

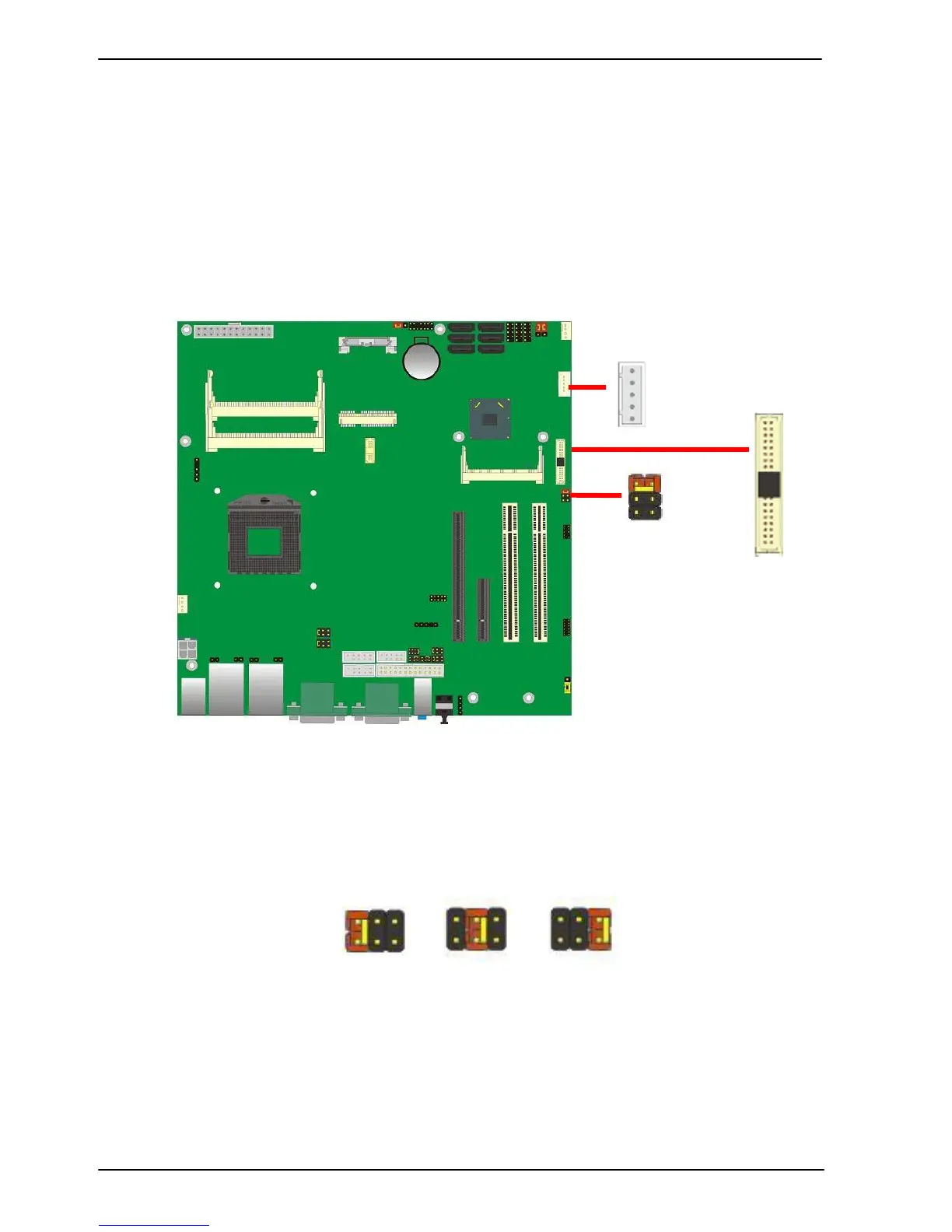

The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels,
supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter
connector and one jumper for panel voltage setting.
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: Others will cause damages.
JVLCD
5 6
1 2
5
CN_LVDS
1 2
1
1
2
3
4
5
6
CN_INV
