Commell MS-C75 - PCIE Mini Card and SIM Interface

MS-C75 User’s Manual
-30-
2.12 <PCIE Mini Card and SIM Interface>
The board provides two PCIe mini card sockets and a SIM socket.
MINI_CARD1 is the Mini-PCIe slot for long size Mini-PCIe cards.
Please be noted that the MPX-SDVOD card must be placed in this slot.
The MPX-SDVOD card will not work if it is placed in other slot.
Please also be noted that this slot is the only slot for MPX-SDVOX card but a
customized BIOS is needed for the MPX-SDVOX card. Please contact Commell for
customized BIOS for your MPX-SDVOX card.
MINI_CARD1 slot and option support mSATA ,but SATA6 will be disable.

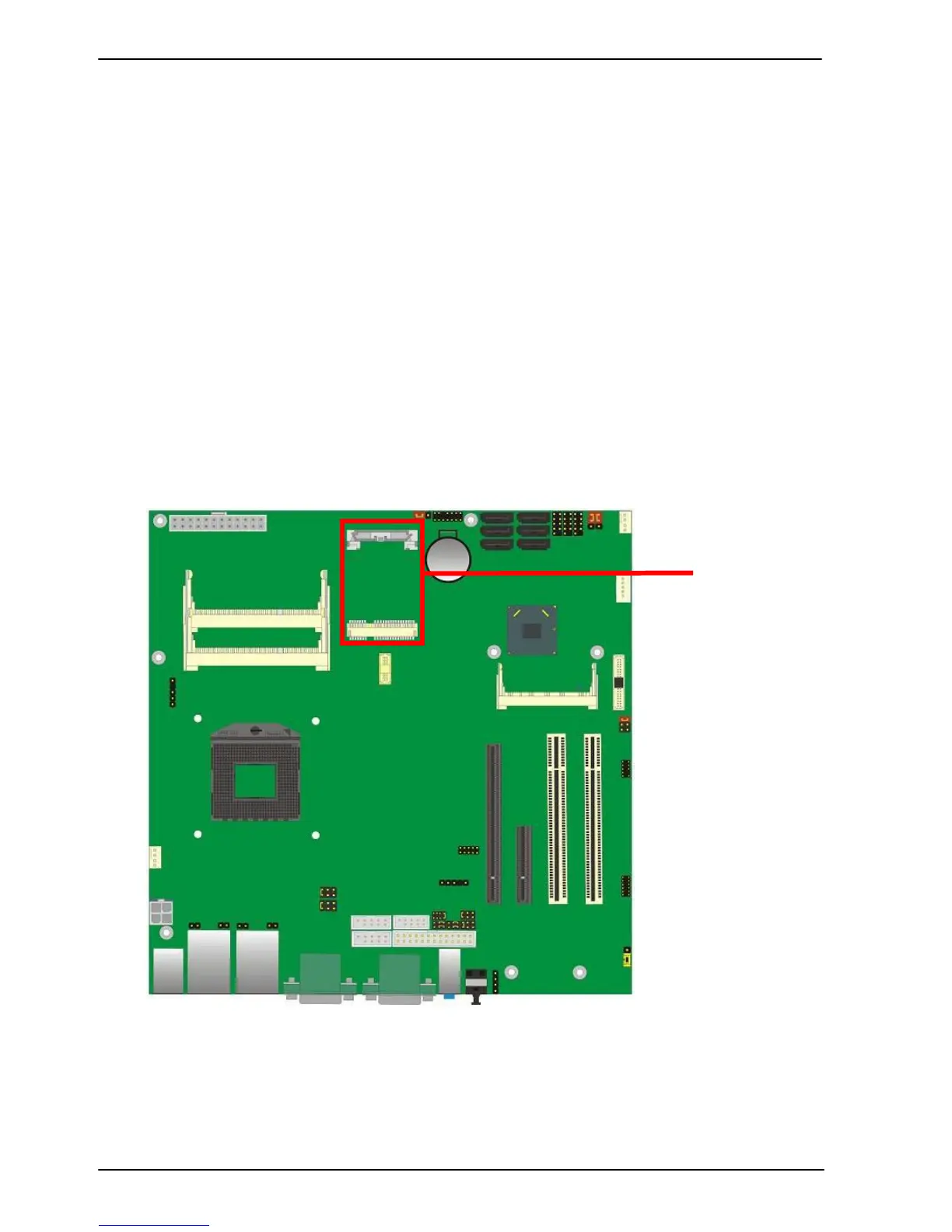

MINI_CARD1
