2.8.3 <DVI Interface>
The board provides one 20-pin DVI connector,
Supports up to 1920 x 1080 resolution.
Connector: CN_DVI
Type: onboard 20-pin connector for DVI connector
Connector model: HIROSE DF13-20DP-1.25V
Pin Number
Assignment
Pin Number
Assignment
1
+5V
2
+3.3V
3
HPD
4
Ground
5
TMDSTX0N
6
TMDSTX0P
7
Ground
8
TMDSTX1N
9
TMDSTX1P
10
Ground
11
TMDSTX2N
12
TMDSTX2P
13
Ground
14
TMDSTXCN
15
TMDSTXCP
16
Ground
17
DVI_DA
18
DVI_SL
19
AUXN
20
AUXP

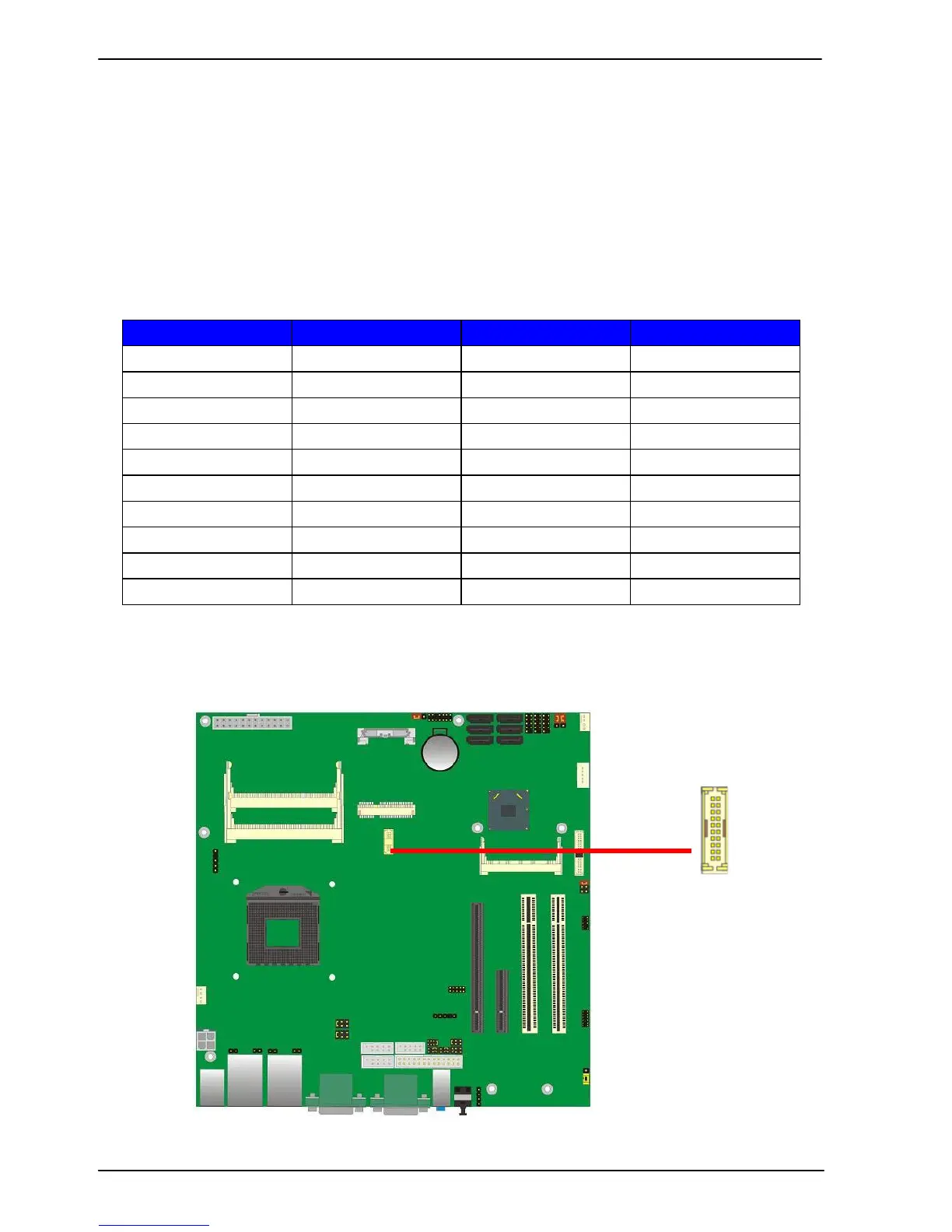

CN_DVI
1 2
19 20
