Connector: CN_USB2/1/5
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin
Description
Pin
Description
1
VCC (5V_SB/ 5V)
2
VCC (5V_SB/ 5V)
3
Data0-
4
Data1-
5
Data0+
6
Data1+
7
Ground
8
Ground
9
Ground
10
N/C

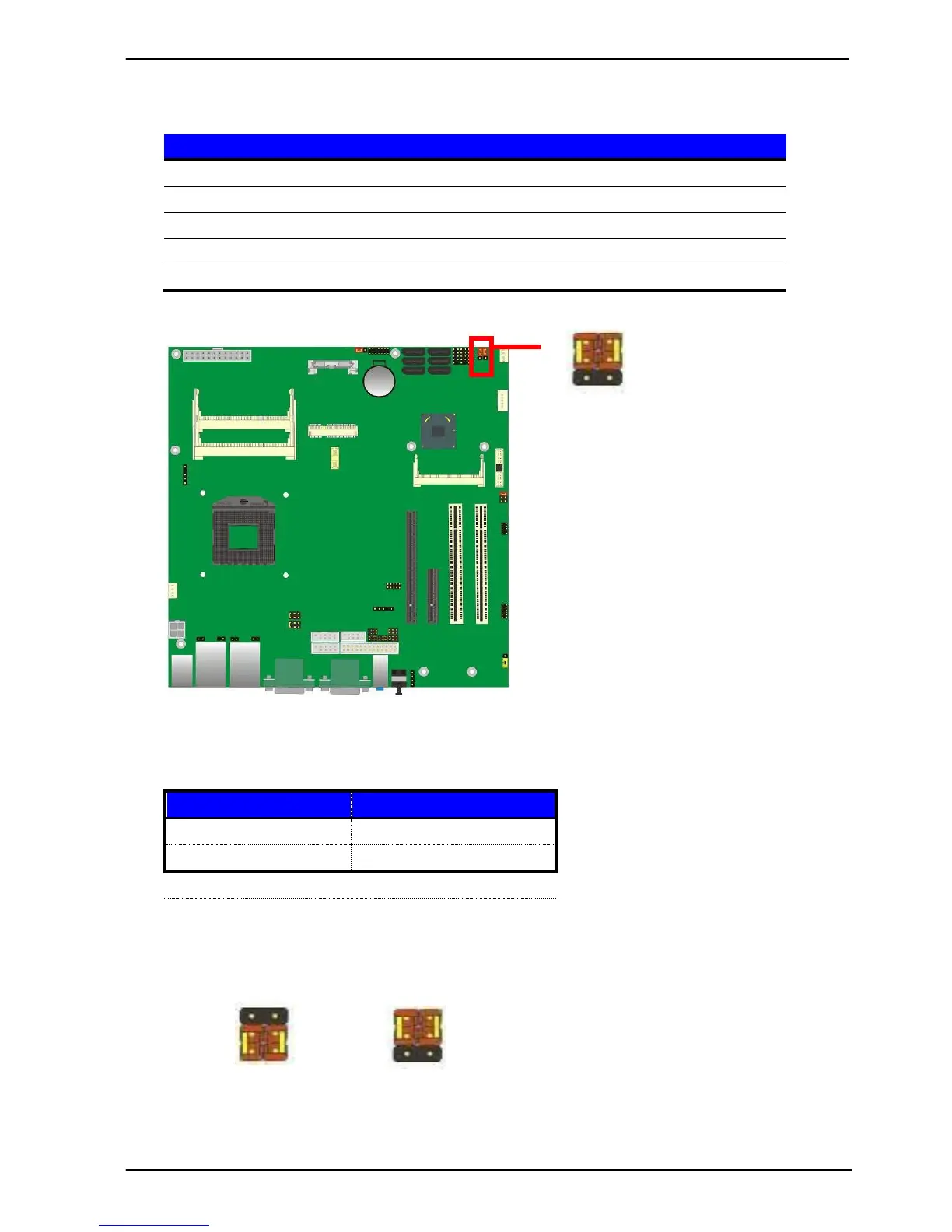

Connector: JVUSB
Type: 6-pin Power select jumper
Pin
Description
1-3 & 2-4
5V_SB
3-5 & 4-6
5V
Default: 1-3 & 2-4
Effective patterns of connection: 1-3 & 2-4 or 3-5 & 4-6
Warning: Others will cause damages.
JVUSB
1 2
2
6
2
6
1
5
1
5
9 10
