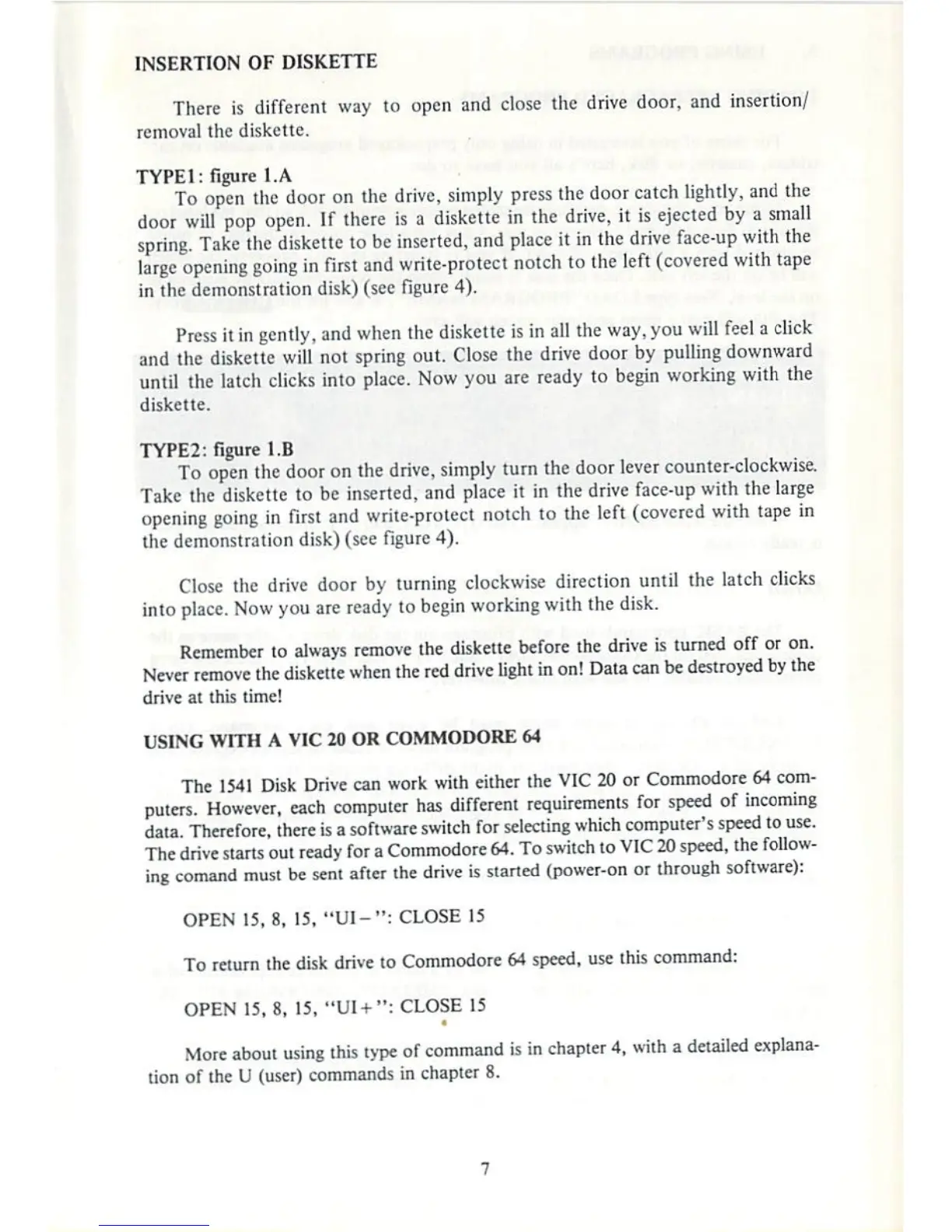

INSERTION OF DISKETTE
There is different way to open and close the drive door, and insertion/
removal the diskette.
TYPE1: figure l.A ,.._,.•
To open the door on the drive, simply press the door catch lightly, anil LSie
door will pop open. If there is a diskette in ihc drive, it is ejected by a small
spring. Take the diskette to be inserted, and place it in the drive face-up with the
large opening going in first and write-protect notch to the left (covered with tape
in the demonstration disk) (sec figure 4).
Press it in gently, and when the diskette is in all the way, you will feel a click
and the diskette will not spring out. Close the drive door by pulling downward
until the latch clicks into place. Now you are ready to begin working with the
diskette.
TYPE2: figure 1,B
To open the door on the drive, simply turn the door Sever counter-clockwise.
Take the diskette to be inserted, and place it in the drive face-up with the large
opening going in first and write-protect notch to the Seft (covered with tape in
the demonstration disk) {see figure 4).
Close the drive door by turning clockwise direction unti! the latch clicks
into place. Now you are ready to begin working with the disk.
Remember to always remove the diskette before the drive is turned off or on.
Never remove the diskette when the red drive light in on! Data can be destroyed by the
drive at this time!
USING WITH A VIC 20 OR COMMODORE 64
The 1541 Disk Drive can work with either the VIC 20 or Commodore 64 com
puters. However, each computer has different requirements for speed of incoming
data. Therefore, there is a software switch for selecting which computer's speed to use.
The drive starts out ready for a Commodore 64. To switch to VIC 20 speed, the follow
ing comand must be sent after the drive is started (power-on or through software):
OPEN 15, 8. 15, -UI-": CLOSE 15
To return the disk drive to Commodore 64 speed, use this command:
OPEN 15, 8, 15, "U1+": CLOSE 15
More about using this type of command is in chapter 4, wiih a detailed explana
tion of the U (user) commands in chapter 8.
