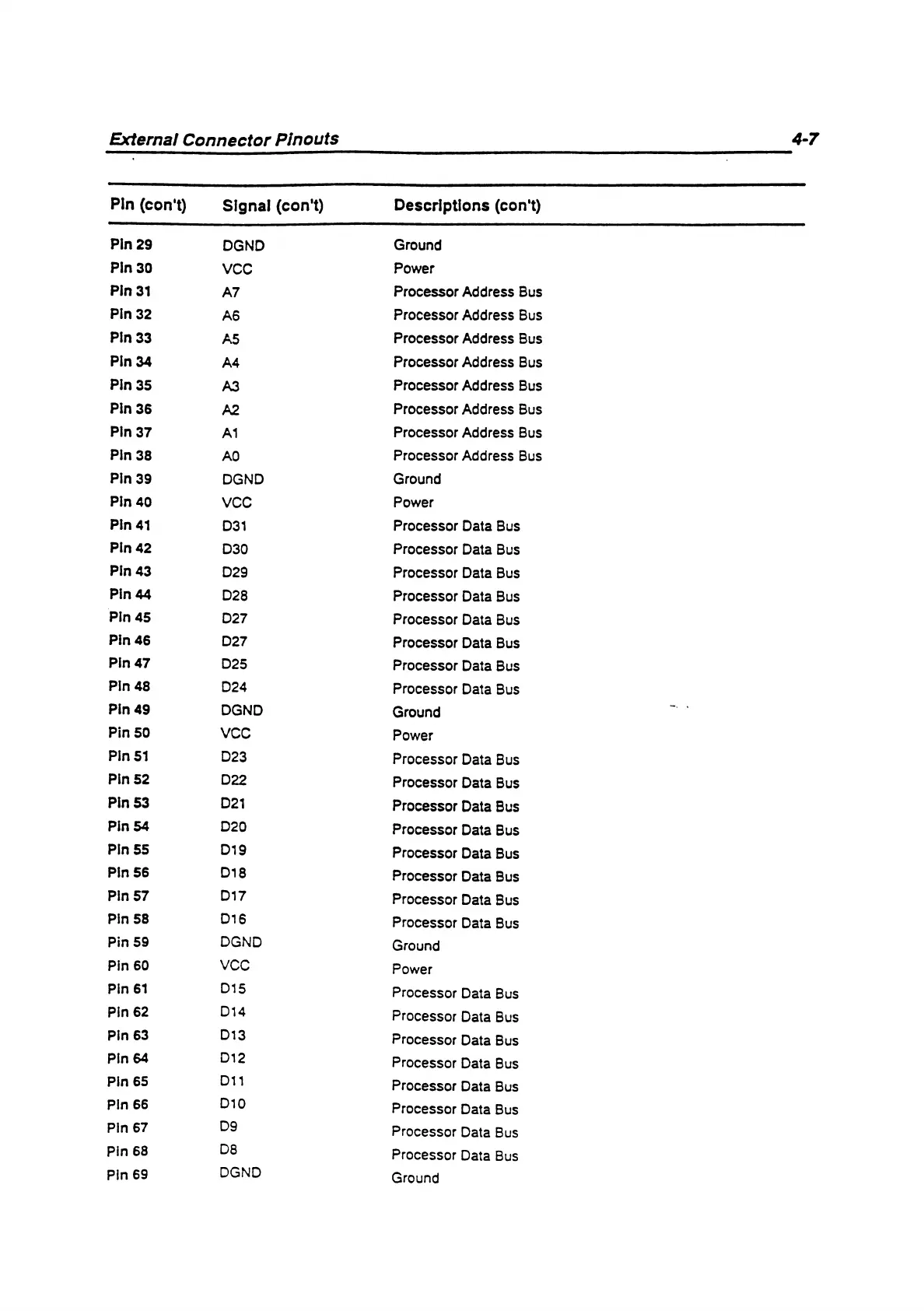

Externa/ Connector Pinouts
4-7
Pin (con't) Signal (con't) Descriptions (con't)
Pin 29
DGND
Pin 30
VCC
Pin 31
A7
Pin 32
A6
Pin 33
A5
Pin 34
A4
Pin 35
A3
Pin 36
A2
Pin 37
A1
Pin 38
A0
Pin 39 DGND
Pin 40
VCC
Pin 41
D31
Pin 42
D30
Pin 43
D29
Pin 44
D28
Pin 45
D27
Pin 46
D27
Pin 47
D25
Pin 48 D24
Pin 49
DGND
Pin 50
VCC
Pin 51
D23
Pin 52
D22
Pin 53
D21
Pin 54
D20
Pin 55
D19
Pin 56
D18
Pin 57
D17
Pin 58 Dl 6
Pin 59
DGND
Pin 60
VCC
Pin 61
D15
Pin 62
D14
Pin 63
D13
Pin 64 D12
Pin 65
D11
Pin 66
D10
Pin 67
D9
Pin 68
D8
Pin 69
DGND
G round
Power
Processor Address Bus
Processor Address Bus
Processor Address Bus
Processor Address Bus
Processor Address Bus
Processor Address Bus
Processor Address Bus
Processor Address Bus
Ground
Power
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Ground
Power
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Ground
Power
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Ground
