4-8

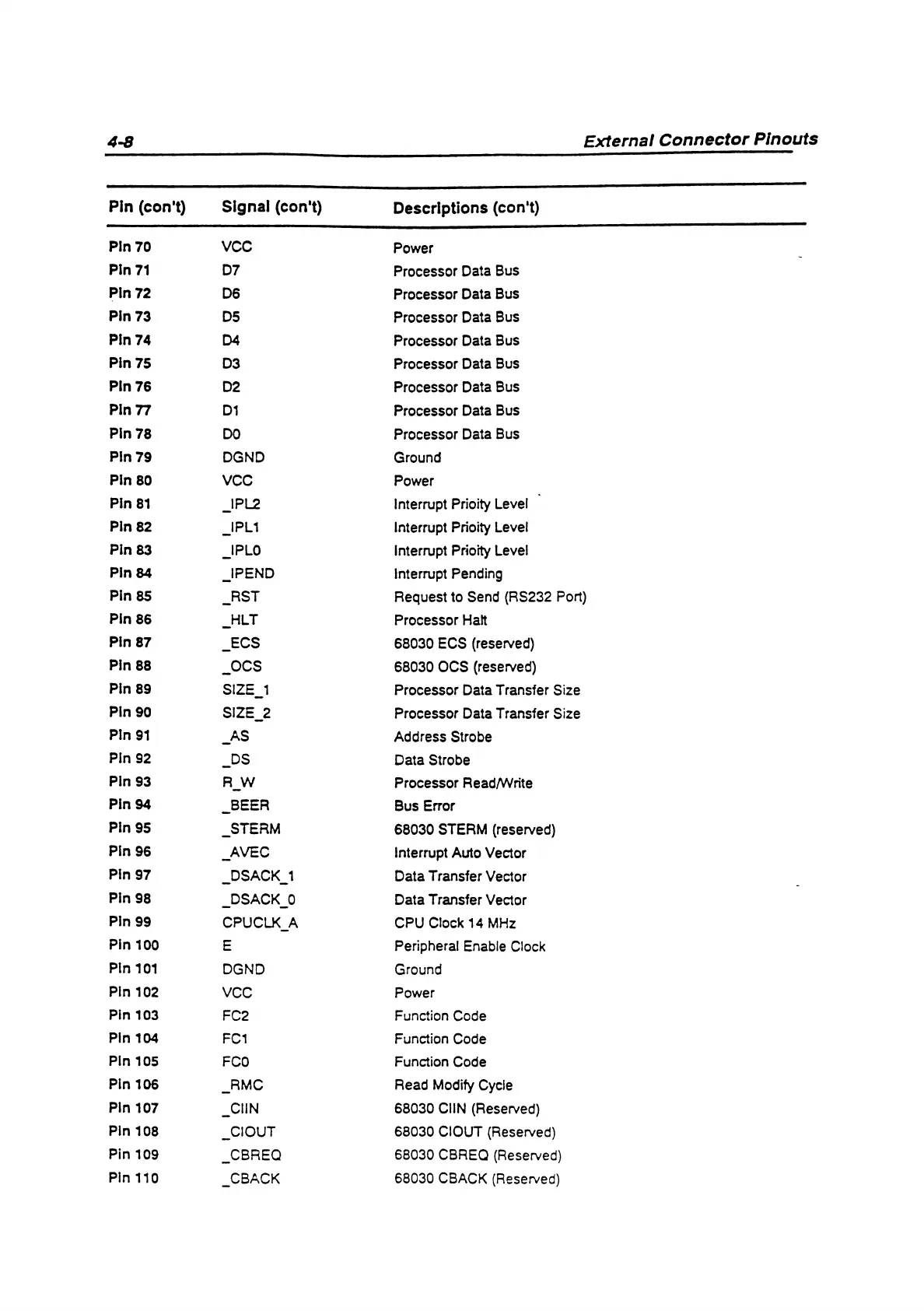

ExternaI Connector PInouts
Pin (con't) Signal (con't) Descrlptions (con't)
Pln 70
VCC
Pin 71
D7
Pin 72
D6
Pln 73
D5
Pln 74
D4
Pln 75
D3
Pln 76
D2
Pln 77
D1
Pln 78
DO
Pln 79
DGND
Pln 80
VCC
Pln 81
_IPL2
Pln 82
_IPL1
Pin 83
_IPL0
Pln 84
JPEND
Pln 85
_RST
Pin 86
_HLT
Pln 87
_ECS
Pln 88
_OCS
Pin 89
S!ZE_1
Pln 90
SIZE_2
Pln 91
_AS
Pln 92
_DS
Pln 93
R_W
Pln 94
_BEER
Pln 95
_STERM
Pln 96
_AVEC
Pln 97
_DSACK_1
Pln 98
_DSACK_0
Pln 99
CPUCLK_A
Pin 100
E
Pin 101
DGND
Pln 102
VCC
Pin 103
FC2
Pln 104
FC1
Pln 105
FCO
Pln 106
_RMC
Pln 107
_ CIIN
Pin 108
_ CIOUT
Pin 109
_CBREQ
Pin 110
CBACK
Power
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Processor Data Bus
Ground
Power
Interrupt Prioity Level
Interrupt Prioity Level
Interrupt Prioity Level
Interrupt Pending
Request to Send (RS232 Port)
Processor Halt
68030 ECS (reserved)
68030 OCS (reserved)
Processor Data Transfer Size
Processor Data Transfer Size
Address Strobe
Data Strobe
Processor Read/Write
Bus Error
68030 STERM (reserved)
Interrupt Auto Vector
Data Transfer Vector
Data Transfer Vector
CPU Clock 14 MHz
Peripheral Enable Clock
Ground
Power
Function Code
Function Code
Function Code
Read Modify Cycle
68030 CIIN (Reserved)
68030 CIOUT (Reserved)
68030 CBREQ (Reserved)
68030 CBACK (Reserved)
