5-4

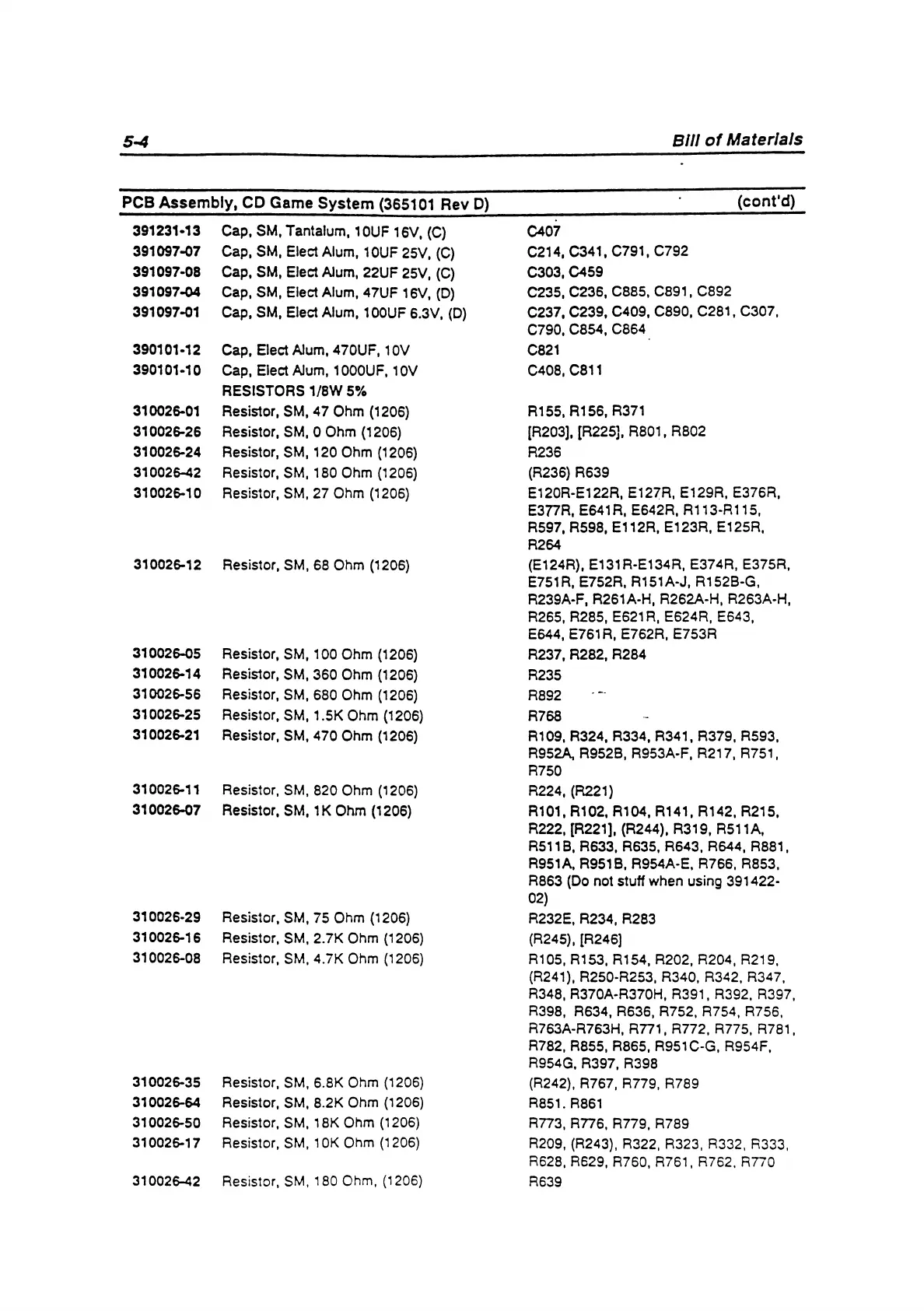

Bill of Materials
•
PCB Assembly, CD Game System (365101 Rev D)
(cont'd)
391231-13
Cap, SM, Tantalum, 10UF 16V. (C)
C407
391097-07
Cap, SM, Elect Alum, 10UF 25V, (C)
C214, C341.C791.C792
391097-08
Cap, SM, Elect Alum, 22UF 25V, (C)
C303, C459
391097-04
Cap, SM, Elect Alum, 47UF 16V. (D)
C235, C236, C885, C891, C892
391097-01
Cap. SM. Elect Alum, 100UF 6.3V, (D)
C237. C239, C409, C890, C281, C307,
C790, C854, C864
390101-12 Cap, Elect Alum, 470UF, 10V C821
390101-10 Cap, Elect Alum, 1000UF, 10V
RESISTORS 1/8W 5%
C408, C811
310026-01 Resistor, SM, 47 Ohm (1206)
R155.R156, R371
310026-26 Resistor, SM, 0 Ohm (1206)
[R203], [R225J. R801, R802
310026-24 Resistor, SM, 120 Ohm (1206)
R236
310026-42 Resistor, SM, 180 Ohm (1206) (R236) R639
310026-10 Resistor. SM, 27 Ohm (1206)
E120R-E122R, E127R, E129R, E376R,
E377R, E641R, E642R, R113-R115,
R597, R598, E112R, E123R, E125R,
R264
310026-12
Resistor, SM, 68 Ohm (1206)
(E124R), E131R-E134R, E374R, E375R,
E751R, E752R, R151A-J, R152B-G,
R239A-F, R261A-H, R262A-H, R263A-H,
R265, R285, E621R, E624R, E643,
E644, E761R, E762R, E753R
310026-05
Resistor, SM, 100 Ohm (1206) R237, R282, R284
310026-14
Resistor, SM, 360 Ohm (1206)
R235
310026-56
Resistor, SM, 680 Ohm (1206)
R892
310026-25
Resistor, SM, 1.5K Ohm (1206)
R768
310026-21
Resistor, SM, 470 Ohm (1206)
R109, R324, R334, R341, R379, R593,
R952A, R952B, R953A-F, R217, R751,
R750
310026-11
Resistor, SM, 820 Ohm (1206)
R224, (R221)
310026-07
Resistor. SM. 1K Ohm (1206)
R101, R102, R104, R141, R142, R215,
R222, [R221], (R244), R319, R511A,
R511B, R633. R635, R643, R644. R881,
R951A, R951B, R954A-E, R766, R853,
R863 (Do not stuft when using 391422-
02)
310026-29
Resistor, SM, 75 Ohm (1206)
R232E, R234, R283
310026-16
Resistor, SM, 2.7K Ohm (1206)
(R245), [R246)
310026-08 Resistor, SM, 4.7K Ohm (1206)
R105, R153, R154, R202, R204, R219,
(R241), R250-R253, R340, R342, R347,
R348, R370A-R370H, R391, R392, R397,
R398, R634, R636, R752, R754, R756,
R763A-R763H, R771, R772, R775, R781,
R782, R855, R865, R951C-G, R954F.
R954G, R397, R398
310026-35 Resistor, SM, 6.8K Ohm (1206)
(R242), R767, R779, R789
310026-64 Resistor, SM, 8.2K Ohm (1206)
R851. R861
310026-50
Resistor, SM, 18K Ohm (1206)
R773, R776, R779, R789
310026-17
Resistor, SM, 10K Ohm (1206)
R209, (R243), R322, R323, R332, R333,
R628, R629, R760, R761, R762, R770
310026-42
Resistor, SM, 180 Ohm, (1206)
R639
