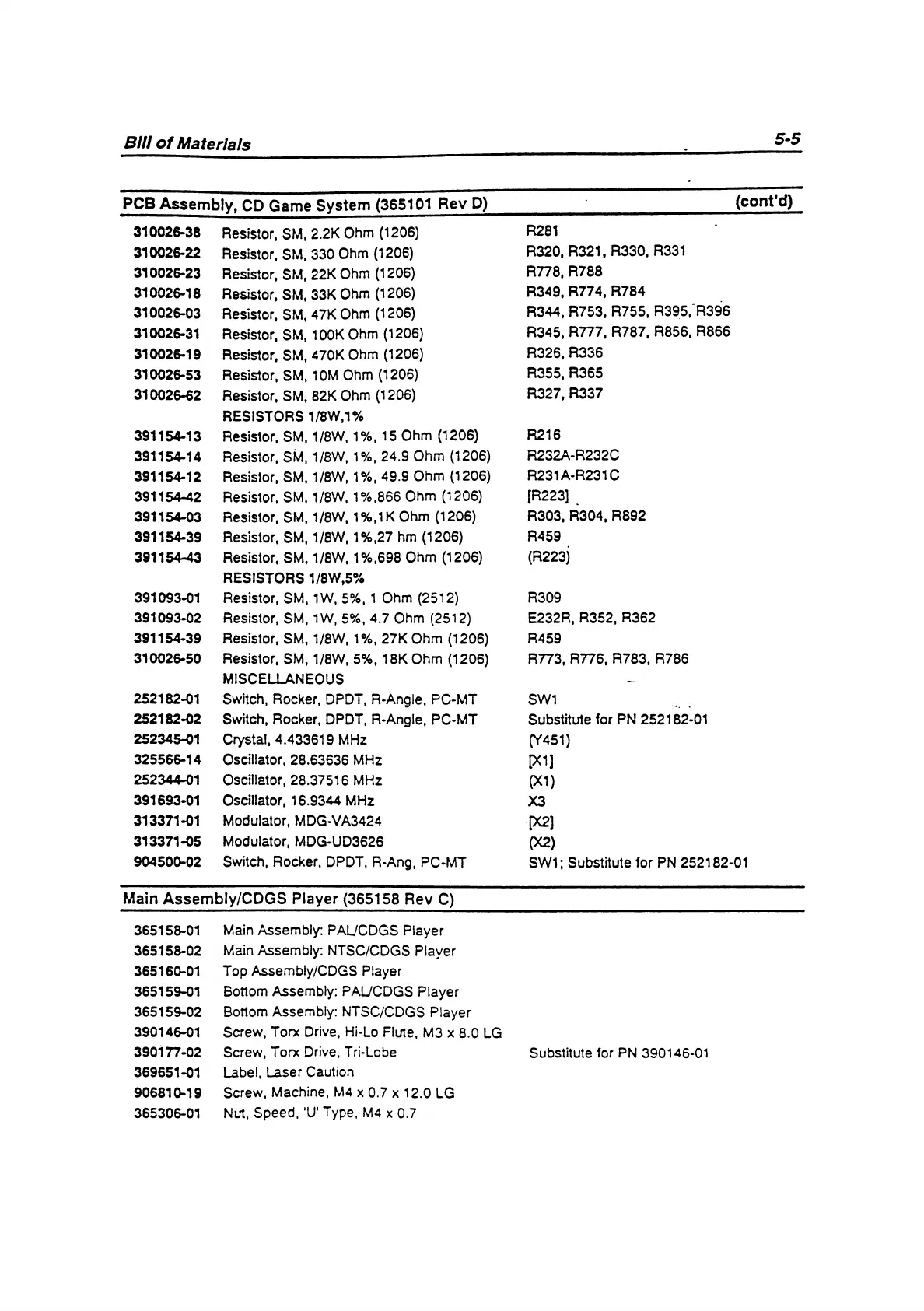

Bill of Materials
5-5
PCB Assembly, CD Game System (365101 Rev D)
(cont'd)
310026-38
Resistor, SM, 2.2K Ohm (1206)
R281
310026-22
Resistor. SM. 330 Ohm (1206)
R320. R321, R330, R331
310026-23
Resistor. SM, 22K Ohm (1206)
R778, R788
310026-18
Resistor, SM, 33K Ohm (1206)
R349, R774, R784
310026-03
Resistor, SM, 47K Ohm (1206)
R344, R753, R755, R395/R396
310026-31
Resistor, SM, 100K Ohm (1206)
R345, R777, R787. R856, R866
310026-19
Resistor, SM, 470K Ohm (1206)
R326, R336
310026-53 Resistor, SM, 10M Ohm (1206)
R355, R365
310026-62
Resistor, SM, 82K Ohm (1206)
R327, R337
RESISTORS 1/8W,1%
391154-13
Resistor, SM. 1/8W, 1%, 15 Ohm (1206)
R216
391154-14 Resistor, SM, 1/8W, 1%. 24.9 Ohm (1206) R232A-R232C
391154-12 Resistor, SM. 1/8W, 1%, 49.9 Ohm (1206) R231A-R231C
391154-42
Resistor, SM, 1/8W, 1%,866 Ohm (1206) [R223]
391154-03 Resistor. SM, 1/8W, 1%,1KOhm (1206)
R303, R304, R892
391154-39
Resistor, SM, 1/8W, 1%,27 hm (1206) R459
391154-43
Resistor, SM, 1/8W, 1%,698 Ohm (1206)
(R223)
RESISTORS 1/8W,5%
391093-01
Resistor, SM. 1W, 5%. 1 Ohm (2512)
R309
391093-02
Resistor, SM, 1W, 5%, 4.7 Ohm (2512)
E232R, R352, R362
391154-39
Resistor, SM, 1/8W, 1%, 27K Ohm (1206)
R459
310026-50
Resistor, SM, 1/8W, 5%, 18K Ohm (1206)
R773, R776, R783. R786
MISCELLANEOUS
. —
252182-01
Switch, Rocker, DPDT, R-Angle, PC-MT
SW1
252182-02
Switch, Rocker, DPDT, R-Angle, PC-MT
Substitute tor PN 252182-01
252345-01
Crystal, 4.433619 MHz
(Y451)
325566-14
Oscillator, 28.63636 MHz
[X1]
252344-01
Oscillator, 28.37516 MHz
PCI)
391693-01 Oscillator, 16.9344 MHz
X3
313371-01
Modulator, MDG-VA3424
1X2]
313371-05
Modulator, MDG-UD3626
(X2)
904500-02
Switch, Rocker, DPDT, R-Ang, PC-MT
SW1; Substitute for PN 252182-01
Main Assem bly/CDGS Player (365158 Rev C)
365158-01 Main Assembly: PAUCDGS Player
365158-02
Main Assembly: NTSC/CDGS Player
365160-01
Top Assembly/CDGS Player
365159-01
Bottom Assembly: PALVCDGS Player
365159-02
Bottom Assembly: NTSC/CDGS Player
390146-01
Screw, Torx Drive, Hi-Lo Flute, M3 x 8.0 LG
390177-02 Screw, Torx Drive, Tri-Lobe
Substitute for PN 390146-01
369651-01
Label, Laser Caution
906810-19 Screw, Machine, M4 x 0.7 x 12.0 LG
365306-01 Nut, Speed, 'U' Type, M4 x 0.7
