5-6

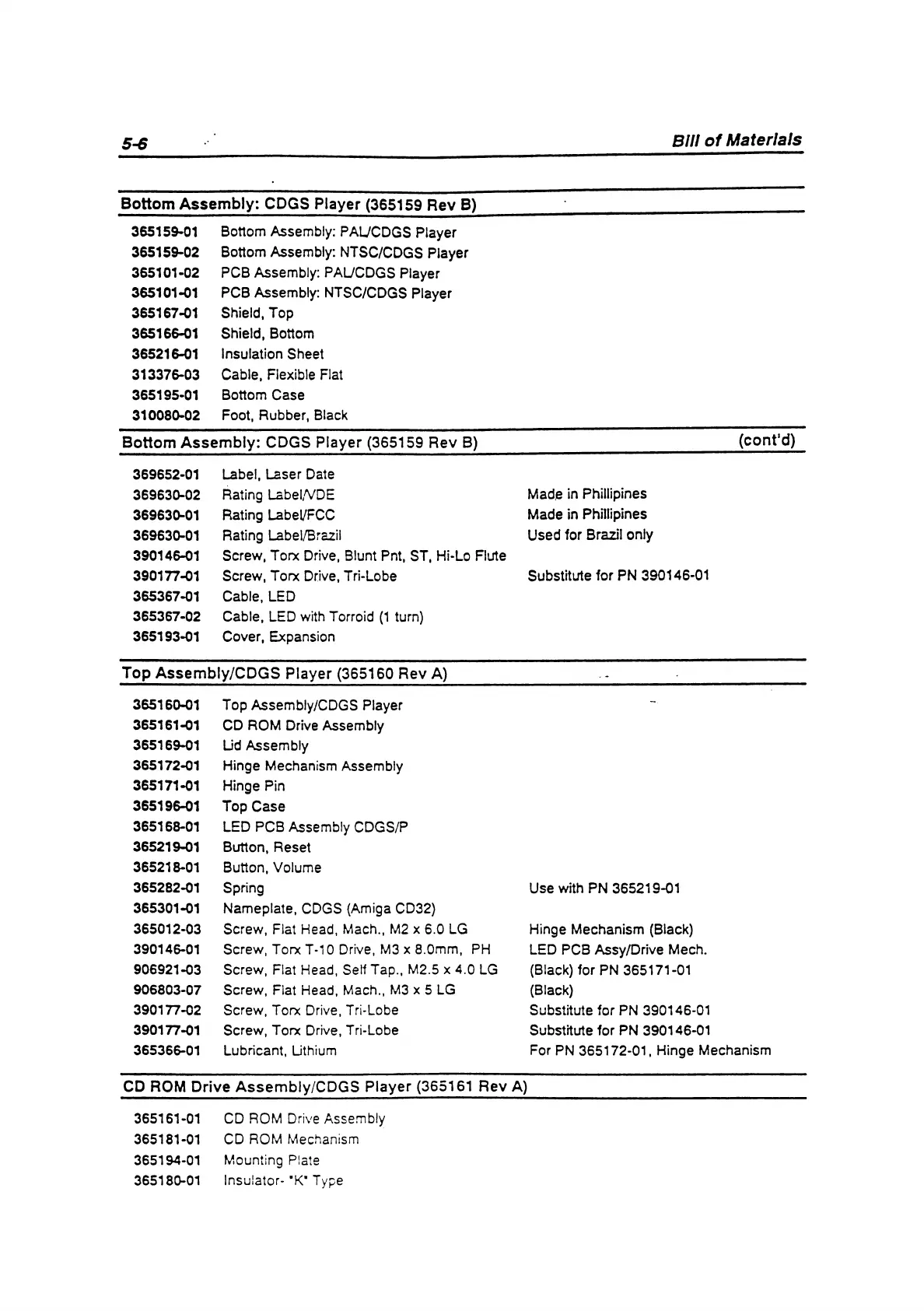

Bill of Materials
Bottom Assem bly: CDGS Player (365159 Rev B)
365159-01
Bottom Assembly: PAL/CDGS Player
365159-02
Bottom Assembly: NTSC/CDGS Player
365101-02
PCB Assembly: PAL/CDGS Player
365101-01
PCB Assembly: NTSC/CDGS Player
365167-01
Shield, Top
365166*01
Shield, Bottom
365216-01
Insulation Sheet
313376-03 Cable, Flexible Flat
365195-01
Bottom Case
310080-02 Foot, Rubber, Black
Bottom Assem bly: CDGS Player (365159 Rev B)
(cont’d)
369652-01 Label, Laser Date
369630-02
Rating Label/VDE
Made in Phillipines
369630-01 Rating Label/FCC Made in Phillipines
369630-01
Rating Label/Brazil Used for Brazil only
390146-01
Screw, Torx Drive, Blunt Pnt, ST, Hi-Lo Flute
390177-01 Screw, Torx Drive, Tri-Lobe Substitute for PN 390146-01
365367-01 Cable, LED
365367-02
Cable, LED with Torroid (1 turn)
365193-01 Cover, Expansion
Top A ssem bly/CDG S Player (365160 Rev A)
365160-01
Top Assembly/CDGS Player
-
365161-01
CD ROM Drive Assembly
365169-01
Lid Assembly
365172-01
Hinge Mechanism Assembly
365171-01 Hinge Pin
365196-01 Top Case
365168-01
LED PCB Assembly CDGS/P
365219-01
Button, Reset
365218-01
Button, Volume
365282-01
Spring
Use with PN 365219-01
365301-01
Nameplate, CDGS (Amiga CD32)
365012-03
Screw, Flat Head, Mach., M2 x 6.0 LG
Hinge Mechanism (Black)
390146-01 Screw, Torx T-10 Drive, M3 x 8.0mm, PH
LED PCB Assy/Drive Mech.
906921-03 Screw, Flat Head, Seit Tap., M2.5 x 4.0 LG
(Black) for PN 365171-01
906803-07 Screw, Flat Head, Mach., M3 x 5 LG
(Black)
390177-02 Screw, Torx Drive, Tri-Lobe
Substitute for PN 390146-01
390177-01
Screw, Torx Drive, Tri-Lobe
Substitute for PN 390146-01
365366-01
Lubricant, Lithium
For PN 365172-01, Hinge Mechanism
CD ROM Drive Assem bly/CDGS Player (365161 Rev A)
365161-01 CD ROM Drive Assembly
365181-01
CD ROM Mechanism
365194-01 Mounting Plate
365180-01
Insulator- "K* Type
