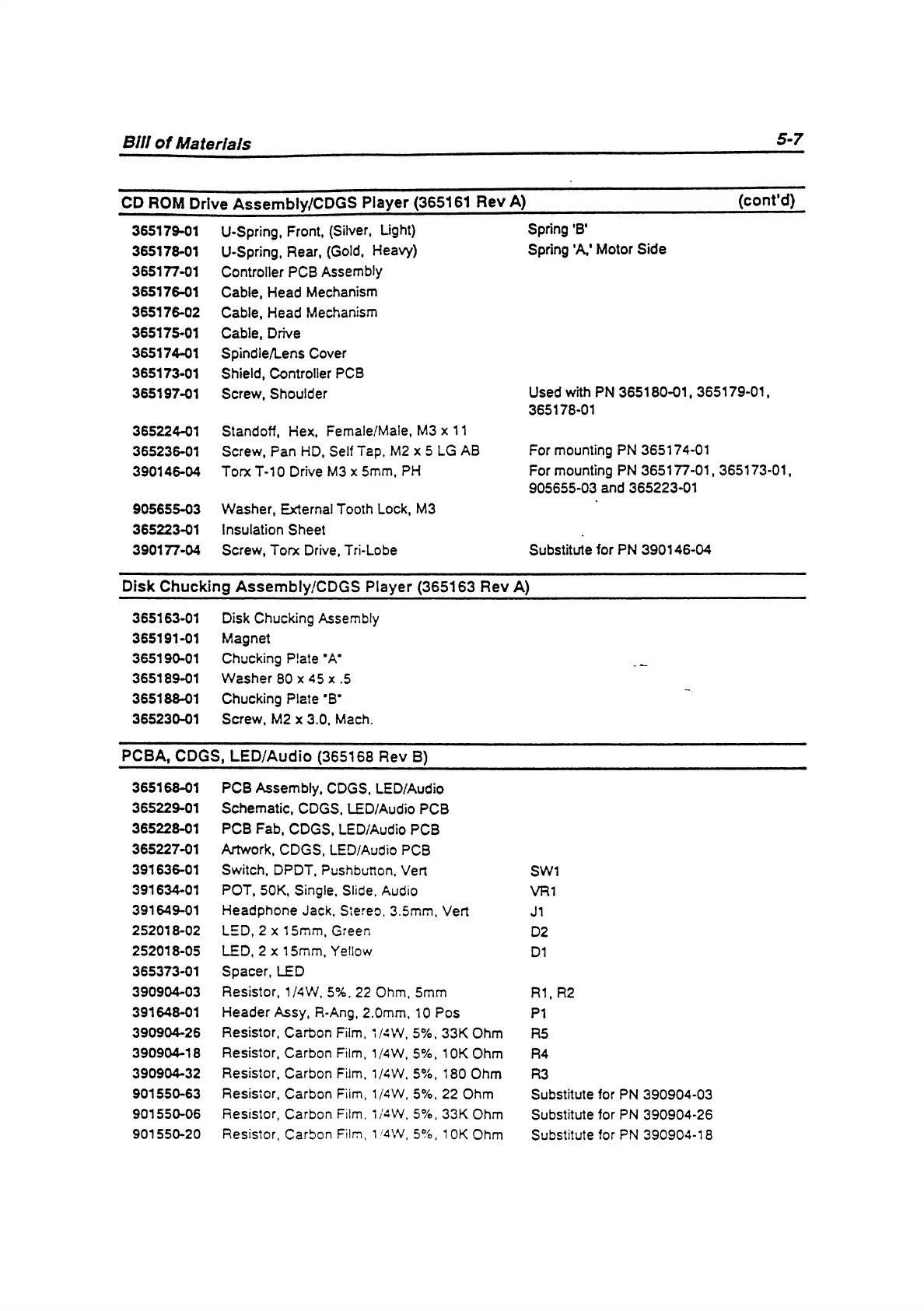

Bill of Materials
5-7
CD ROM Drive Assembly/CDGS Player (365161 Rev A)
(cont’d)
365179-01 U-Spring, Front, (Silver, Light)
Spring ’B*
365178-01 U-Spring, Rear, (Gold, Heavy)
Spring ’A,’ Motor Side
365177-01
Controller PCB Assembly
365176-01
Cable, Head Mechanism
365176-02 Cable, Head Mechanism
365175-01
Cable, Drive
365174-01
Spindle/Lens Cover
365173-01 Shield, Controller PCB
365197-01 Screw, Shoulder
Used with PN 365180-01, 365179-01,
365178-01
365224-01
Standoff, Hex, Female/Male, M3 x 11
365236-01 Screw, Pan HD, Seif Tap, M2 x 5 LG AB
Formounting PN 365174-01
390146-04
Torx T-10 Drive M3 x 5mm, PH
Formounting PN 365177-01,365173-01,
905655-03 and 365223-01
905655-03 Washer, External Tooth Lock, M3
365223-01
Insulation Sheet
390177-04
Screw, Torx Drive, Tri-Lobe Substitute for PN 390146-04
Disk Chucking Assembly/CDGS Player (365163 Rev A)
365163-01 Disk Chucking Assembly
365191-01
Magnet
365190-01 Chucking Plate mAm
365189-01
Washer 80 x 45 x .5
365188-01
Chucking Plate ’B*
365230-01
Screw, M2 x 3.0, Mach.
PCBA, CDGS, LED/Audio (365168 Rev B)
365168-01
PCB Assembly, CDGS, LED/Audio
365229-01
Schematic, CDGS, LED/Audio PCB
365228-01
PCB Fab, CDGS, LED/Audio PCB
365227-01
Artwork, CDGS, LED/Audio PCB
391636-01
Switch, DPDT, Pushbutton, Vert
SW1
391634-01
POT, 50K, Single, Slide, Audio
VR1
391649-01
Headphone Jack, Stereo, 3.5mm, Vert
J1
252018-02
LED, 2 x 15mm, Green
D2
252018-05 LED, 2 x 15mm, Yellow
D1
365373-01 Spacer, LED
390904-03
Resistor, 1/4W, 5%. 22 Ohm, 5mm
R1, R2
391648-01
Header Assy, R-Ang, 2.0mm, 10 Pos
P1
390904-26
Resistor, Carbon Film, 1/4W, 5%, 33K Ohm
R5
390904-18
Resistor, Carbon Film, 1/4W, 5%, 10K Ohm
R4
390904-32 Resistor, Carbon Film, 1/4W, 5%, 180 Ohm
R3
901550-63
Resistor, Carbon Fiim, 1/4W, 5%, 22 Ohm
Substitute for PN 390904-03
901550-06
Resistor, Carbon Film, 1/4W, 5%, 33K Ohm
Substitute for PN 390904-26
901550-20
Resistor, Carbon Film, 1/'4W, 5%, 10K Ohm
Substitute for PN 390904-18
