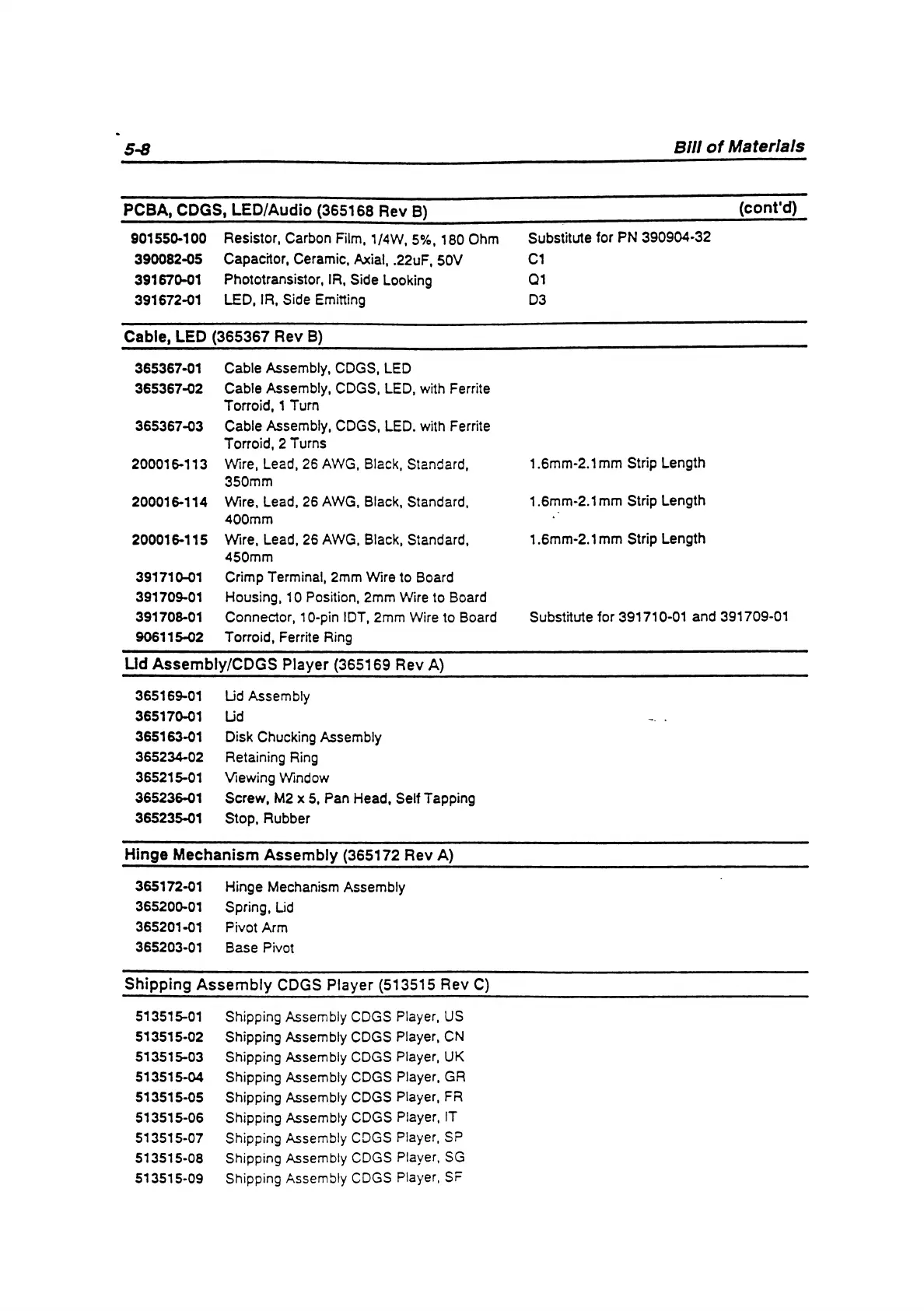

5-8
Bill of Materials
PCBA, CDGS, LED/Audio (365168 Rev B)
(cont’d)
901550-100
Resistor, Carbon Film, 1/4W, 5%, 180 Ohm
Substitute for PN 390904*32
390082-05
Capacitor, Ceramic, Axial, ,22uF. 50V
C1
391670-01
Phototransistor, IR, Side Looking
Q1
391672-01
LED, IR, Side Emitting
D3
Cable, LED (365367 Rev B)
365367-01
Cable Assembly, CDGS, LED
365367-02 Cable Assembly, CDGS. LED, with Ferrite
Torroid, 1 Turn
365367-03
Cable Assembly, CDGS, LED. with Ferrite
Torroid, 2 Turns
200016-113 Wire, Lead, 26 AWG, Black, Standard,
350mm
1.6mm-2.1mm Strip Length
200016-114
Wire, Lead, 26 AWG, Black, Standard,
400mm
1,6mm-2.1 mm Strip Length
200016-115
Wire, Lead, 26 AWG, Black, Standard,
450mm
1.6mm-2.1mm Strip Length
391710-01
Crimp Terminal, 2mm Wire to Board
391709-01
Housing, 10 Position, 2mm Wire to Board
391708-01 Connector, 10-pin IDT, 2mm Wire to Board
Substitute for 391710-01 and 391709-01
906115-02 Torroid, Ferrite Ring
Lid Assembly/CDGS Player (365169 Rev A)
365169-01
Lid Assembly
365170-01 üd
.
365163-01
Disk Chucking Assembly
365234-02 Retaining Ring
365215-01 Viewing Window
365236-01
Screw, M2 x 5, Pan Head, Seif Tapping
365235-01
Stop, Rubber
Hinge Mechanism Assembly (365172 Rev A)
365172-01
Hinge Mechanism Assembly
365200-01
Spring, Lid
365201-01 Pivot Arm
365203-01
Base Pivot
Shipping Assembly CDGS Player (513515 Rev C)
513515-01 Shipping Assembly CDGS Player, US
513515-02
Shipping Assembly CDGS Player, CN
513515-03
Shipping Assembly CDGS Player, UK
513515-04 Shipping Assembly CDGS Player, GR
513515-05
Shipping Assembly CDGS Player, FR
513515-06
Shipping Assembly CDGS Player, IT
513515-07
Shipping Assembly CDGS Player, SP
513515-08
Shipping Assembly CDGS Player, SG
513515-09
Shipping Assembly CDGS Player, SF
