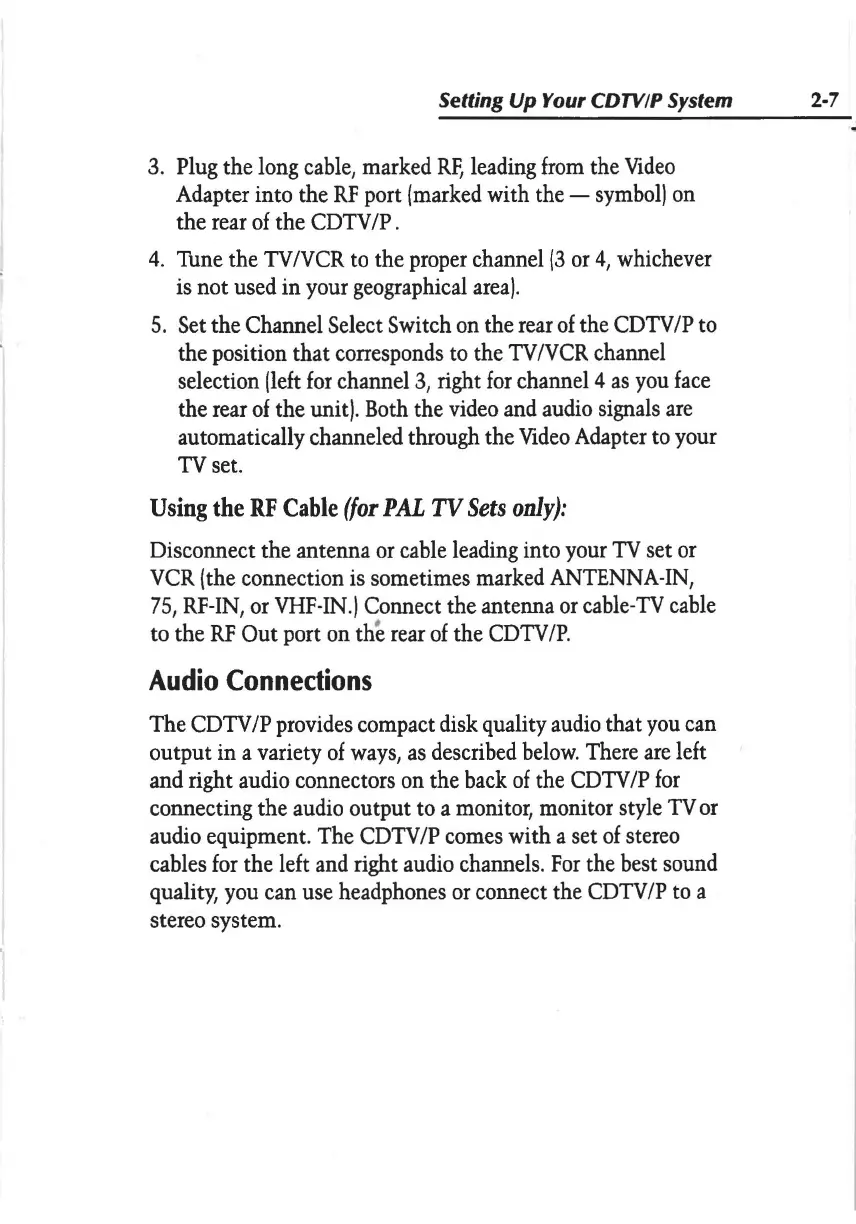

Setting

Up

Your CDTV/P System 2-7

3.

Plug

the

long

cable,

marked

RF,

leading

from

the

Video

Adapter into the

RF

port

(marked

with the -

symbol)

on

the

rear

of

the

CDTV

IP

.

4.

Tune

the

TV/VCR

to

the

proper

channel

(3

or

4,

whichever

is not used in your

geographical

area).

5.

Set

the Channel Select Switch

on

the

rear

of

the

CDTV

IP

to

the position that corresponds to the

TV/VCR

channel

selection

(left

for

channel

3,

right

for

channel 4

as

you

face

the

rear

of

the unit).

Both

the

video

and

audio

signals

are

automatically channeled through the

Video

Adapter

to

your

TV

set.

Using

the

RF

Cable

(for

PAL

TV

Sets

only):

Disconnect the antenna

or

cable

leading into

your

TV

set

or

VCR

(the connection is sometimes marked

ANTENNA-IN,

75,

RF-IN,

or

VHF-IN.)

Connect the antenna

or

cable-TV

cable

to the

RF

Out port

on

the

rear

of

the

CDTV

IP.

Audio

Connections

The

CDTV

IP

provides

compact disk quality

audio

that

you

can

output in a variety

of

ways,

as

described

below.

There

are

left

and right audio connectors

on

the

back

of

the

CDTV

IP

for

connecting the

audio

output to a

monitor,

monitor style

TV

or

audio equipment. The

CDTV

IP

comes

with a set

of

stereo

cables

for

the left

and

right

audio

channels.

For

the best

sound

quality,

you

can

use

headphones

or

connect the

CDTVIP

to

a

stereo system.

-
