M900 GNSS Receiver User Guide
13

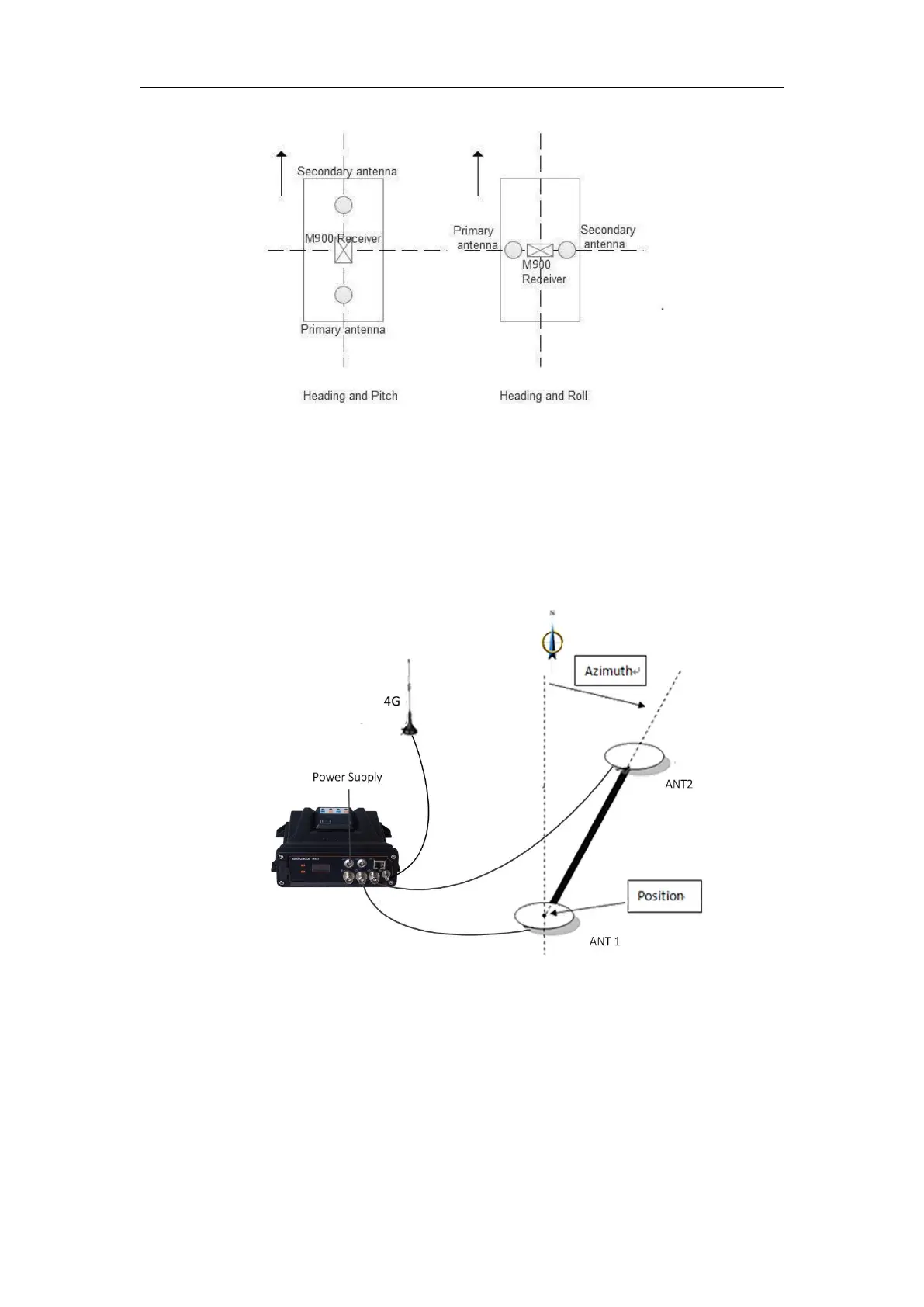

3.2.4 M900 connection view
M900 is mainly used for challenging guidance and positioning applications including
fleet management, marine, UGV and related unmanned control systems. The GNSS
antennas are fixed on top of machine. The below figure explains the connection of
each equipment.
4. Receiver configuration through a web browser
M900 has the advanced built-in web server, you can access the web setting page and
do configurations by LAN or WIFI. This section describes how to change receiver
