5. Transport and installation
25
5 Tra ns por t an d i ns tal l ati on

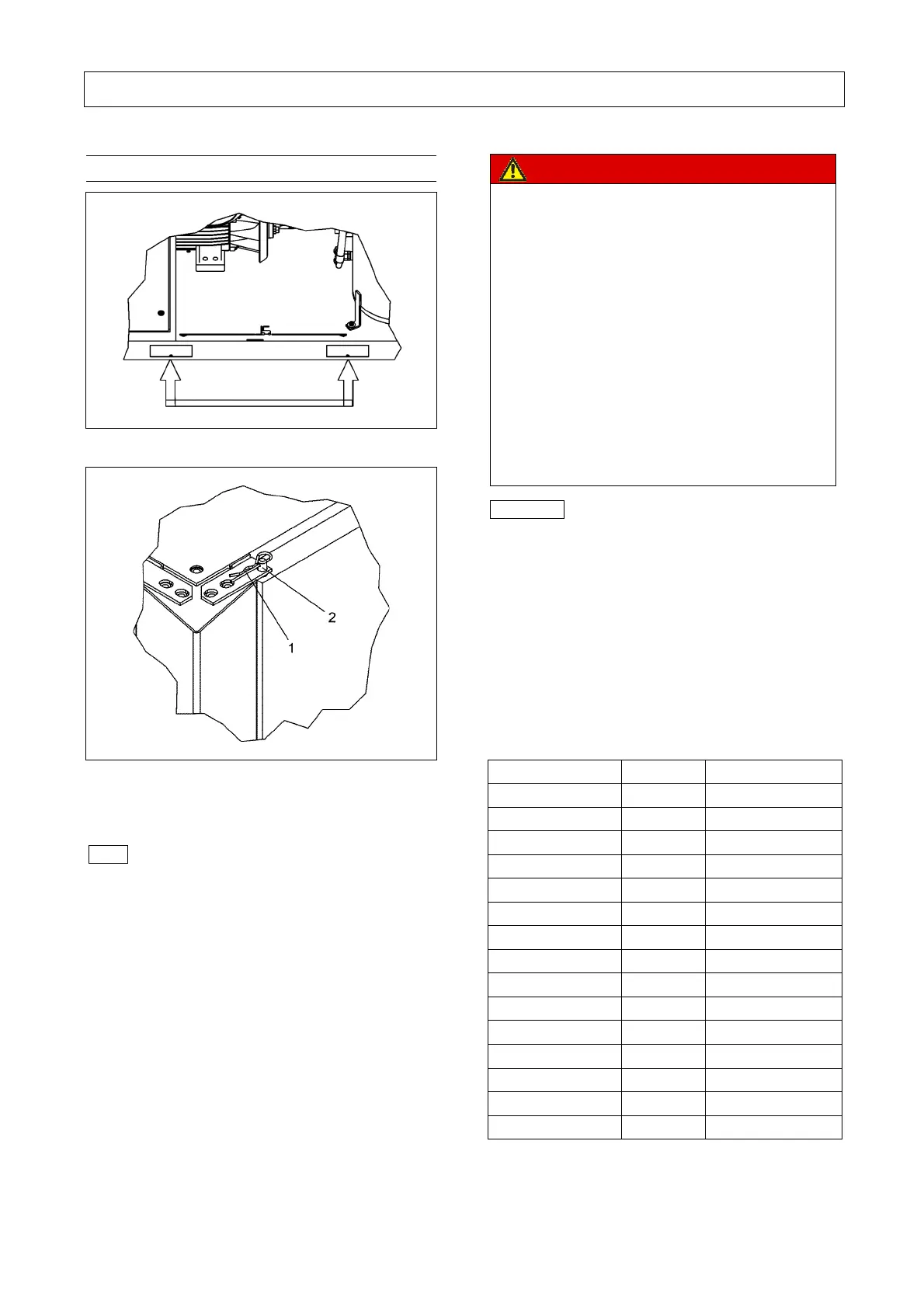

5.1 Transport
Fig. 6
Fig. 7
1 Wire pin
2 Hinge pin
Note
The wire pins (-1- Fig. 7) and the doors must be
removed prior to transportation.
Danger
The compressor must be lifted using a
suitable forklift truck which complies with
the local safety regulations.
The length of the forks must correspond at
least to the width of the unit (see Chapter
11.2).
Before lifting, all loose or slewable parts of
the machine have to be firmly secured.
It is strictly prohibited to work or stand in
the danger zone of a lifted load.
The proper lifting of the load (according to
the operating instructions of the load
suspension device) has to be ensured.
Important
Never lift or lash the compressor and its hood via
the enclosure. The screw compressor is lifted with
the help of a fork lift truck (Fig. 6). The separation
of the forks and their length must be taken into
account for transportation.
Only use the identified lifting points. Do not slide
the unit when it is standing on the floor.
Weights
The values listed below are approximate values, they
refer to a screw compressor unit including oil fill:
