11. Annex
64
11.2 Layout plan
(all dimensions in mm)

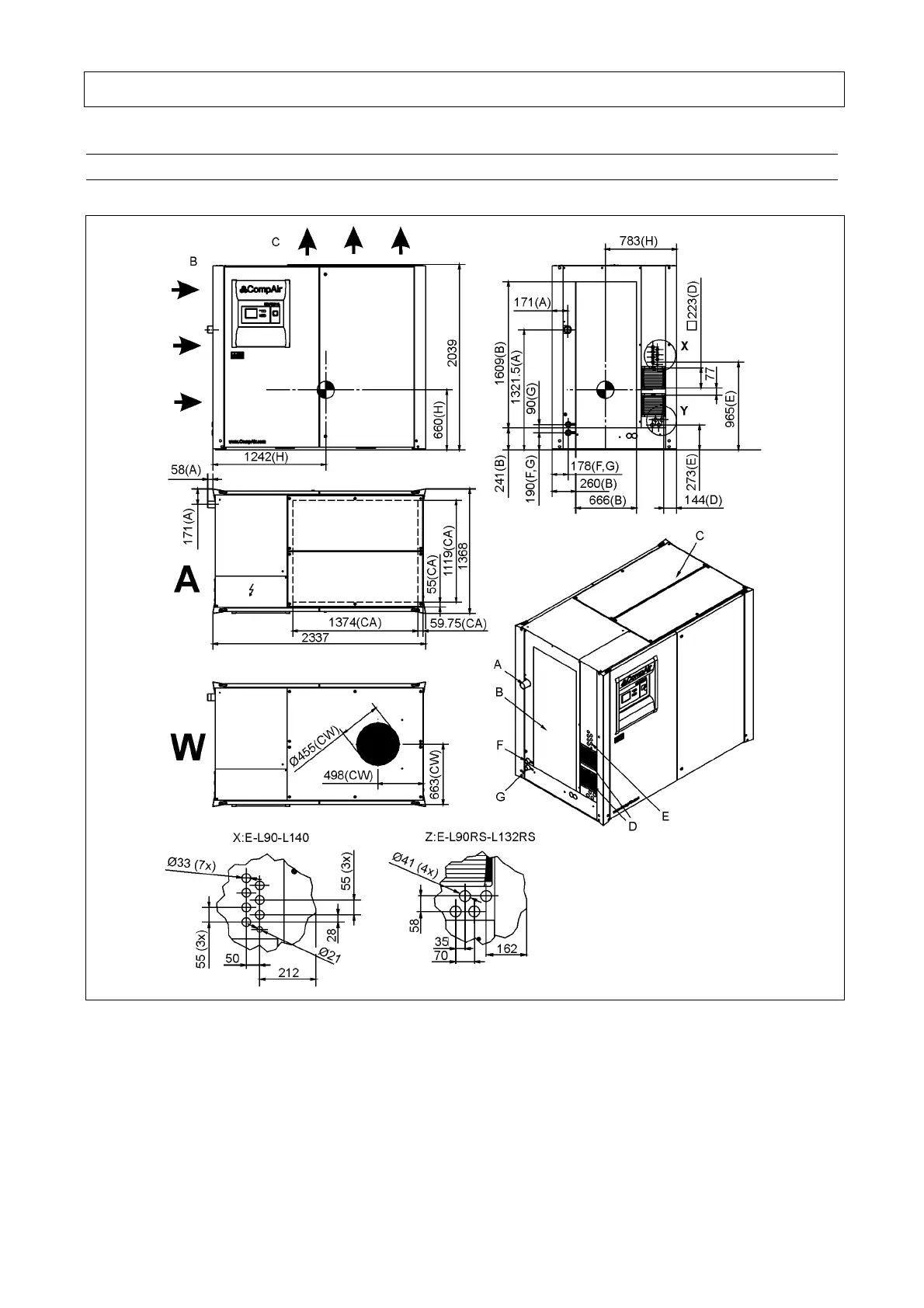

Fig. 30
A Compressed air connection
Europe version: male screwed thread R 1 1/2“ DIN 2999
Canada USA version: male screwed thread NPT 1 1/2 - 11-1/2
B Cooling air inlet
C Cooling air outlet
D Cooling-air inlet, control cabinet (L90RS - L132RS only)
E Openings for inlet cable
F Cooling water inlet
G Cooling water outlet
H Center of gravity
