6. Preparations for commissioning
33
6.5 Oil level check
Warning
Only check the oil level when the screw
compressor unit is out of operation and
depressurized!
The pressure reservoir can be under
pressure and the oil hot. Warning: Danger
of scalding!
Important
Do not spill oil! Check for leakage!

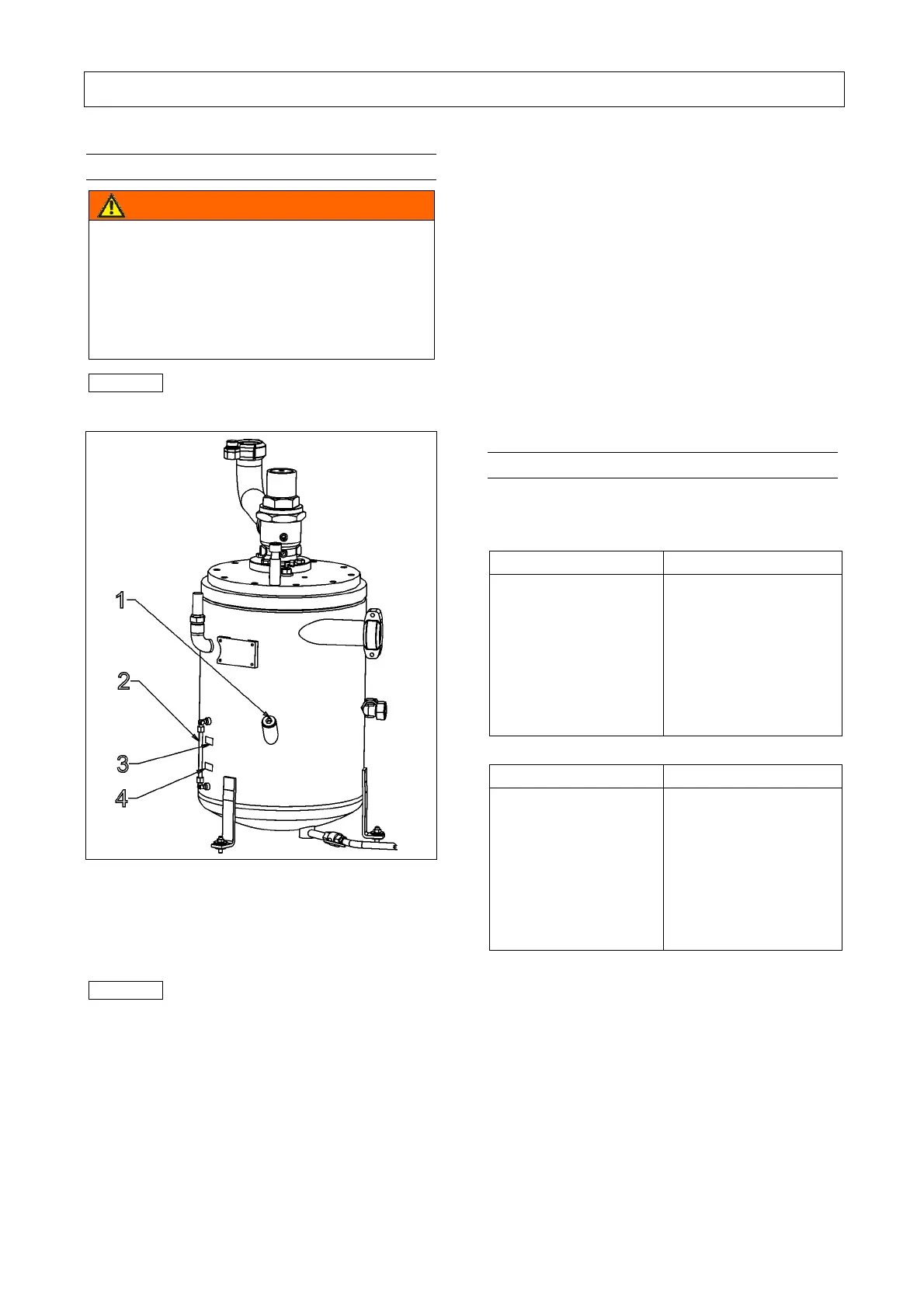

Fig. 14
1 Oil filler cap R1"
2 Oil-level indicator
3 Maximum oil level
4 Minimum oil level
Important
Do not mix oils of different specifications.
Machines which are delivered without oil must first
be filled to the max. mark in the pressure reservoir
sight glass (see also chapters 9.4 and 9.15)
Check the oil level as follows:
• Stop the compressor, with the stop button.
• Wait at least 5 minutes for the oil to settle and for
the air to disperse
• The oil level is checked with the help of the
transparent plastic tube at the pressure reservoir
(- 2 - Fig. 14) after every stop and at regular
intervals. If required, top up oil
• The oil level must be between the maximum level
(- 3 - Fig. 14) and minimum level (- 4 - Fig. 14)
marked on the oil reservoir.
Also see chapter 9 “Service and maintenance”
6.6 Sound pressure level
Sound pressure level measured in dB(A) according to
ISO 2151 under full load at a distance of 1 m (tolerance:
± 3 dB(A)):
