Service Reference Guide, dc7700 433612-001 7–19
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

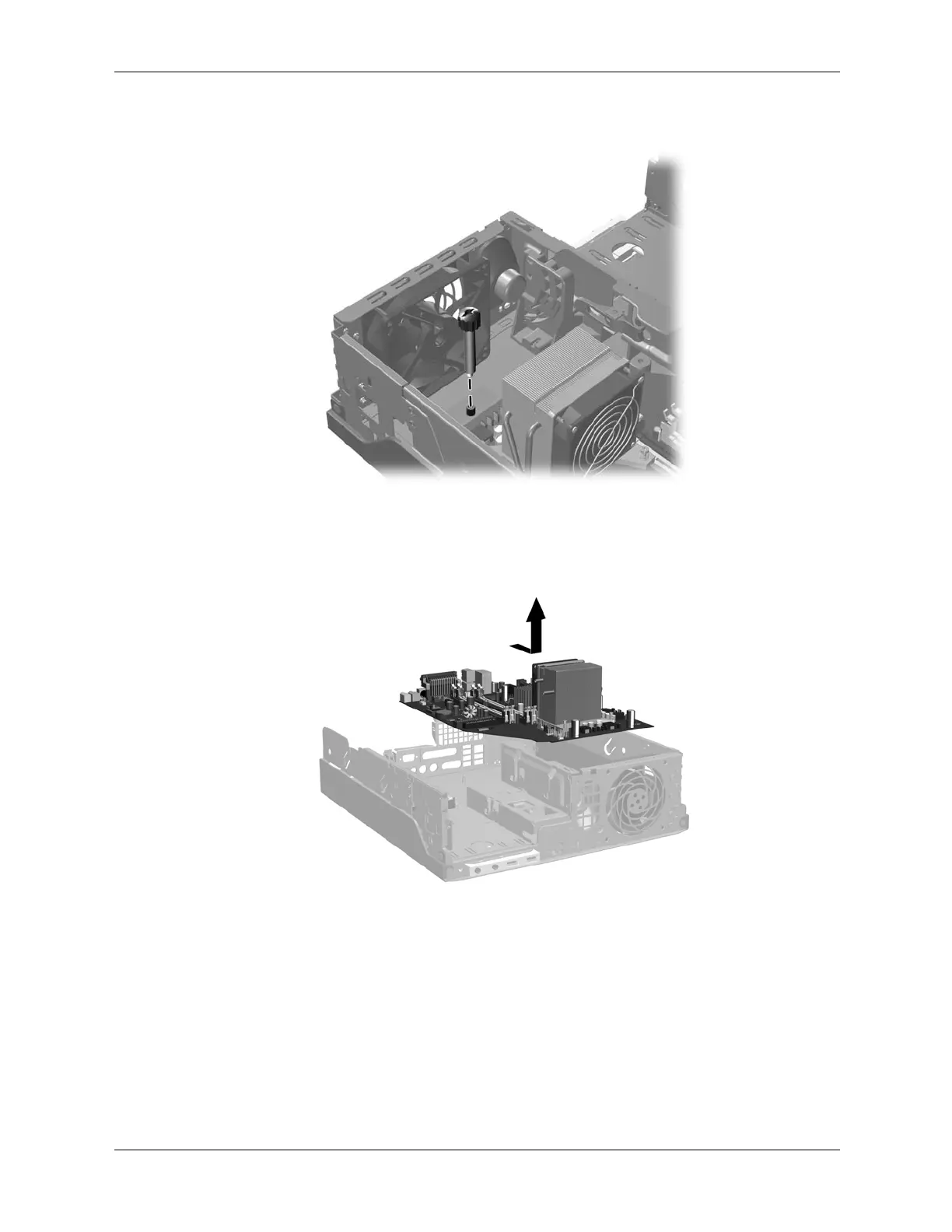

12. Remove the long mounting screw that secures the system board tray to the chassis.
13. Slide the system board tray assembly towards the front of the chassis about 6 cm (1/4 inch)
and lift the system board up and out of the chassis.
