7–20 433612-001 Service Reference Guide, dc7700
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

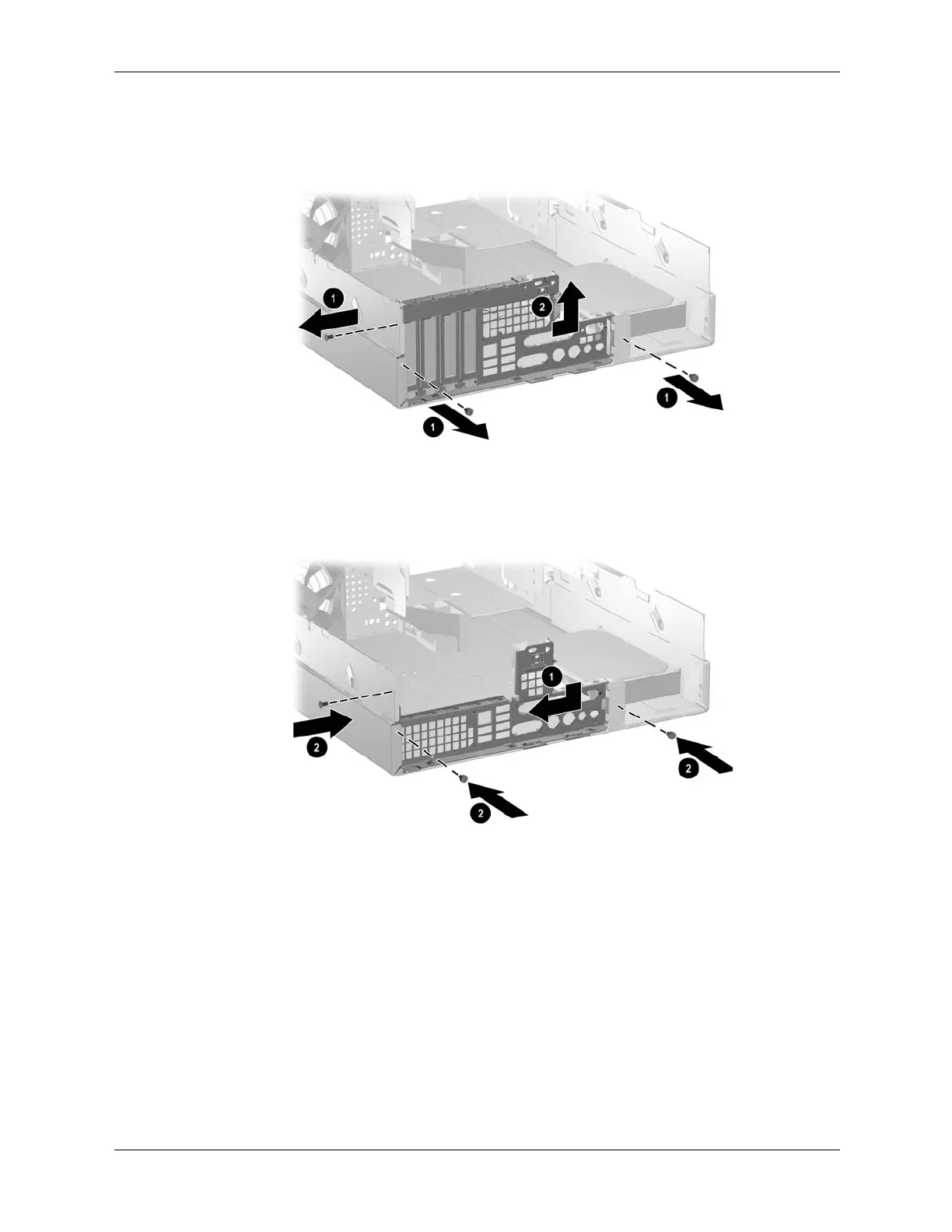

14. Remove the three screws that secure the backwall assembly to the chassis 1, then slide the
backwall assembly a few millimeters/inches toward the space vacated by the power supply
and lift out(2.
15. Slide the new backwall onto the rear chassis 1. Secure it with the three screws removed from
the old backwall 2.
