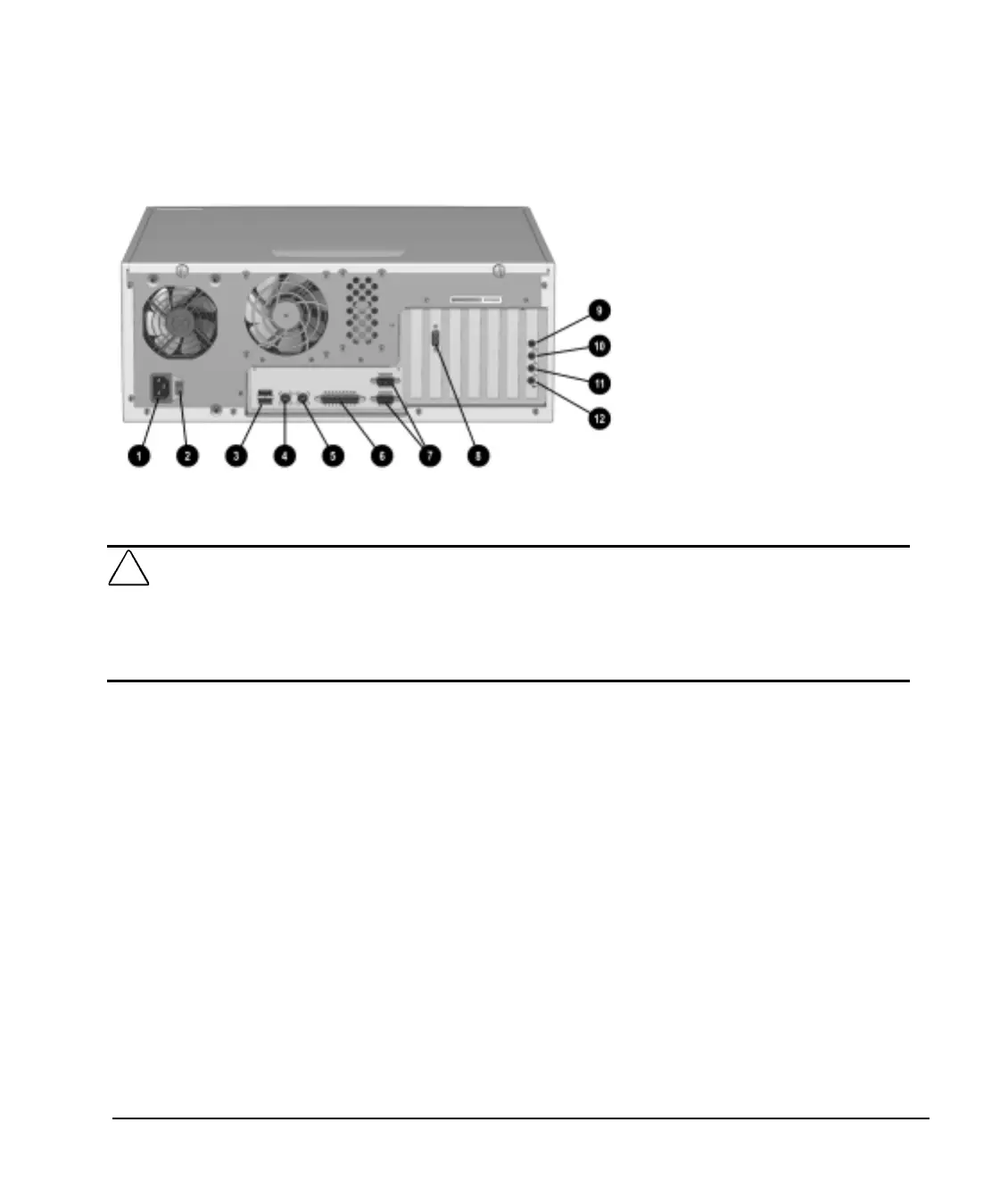

Rear Panel Connectors
Rear Panel Connectors
!
WARNING:
To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
Disconnect power from the computer by unplugging the power cord from either the electrical outlet or
the computer.
1
Power Cord Connector
2
Voltage Select Switch
3
Two Universal Serial Bus (USB) Connectors
4
Keyboard Connector
5
Mouse Connector
6
Parallel Connector
7
Serial Connectors
8
Monitor Connector
9
Headphone Connector (on select models)
-
Line-Out Audio Connector (on select models)
q
Line-In Audio Connector (on select models)
w
Microphone Connector (on select models)
NOTE: Audio features are available on select models only.
