Guide to Features & Upgrades
1-5
Writer: Holly Jahangiri Saved By: Elizabeth Hedstrom Saved Date: 01/12/99 10:53 AM
Pages: 9 Words: 1256 Template: c:\msoffice\templates\comm.dot
File Name d_Ch1.doc Part Number 166811-003

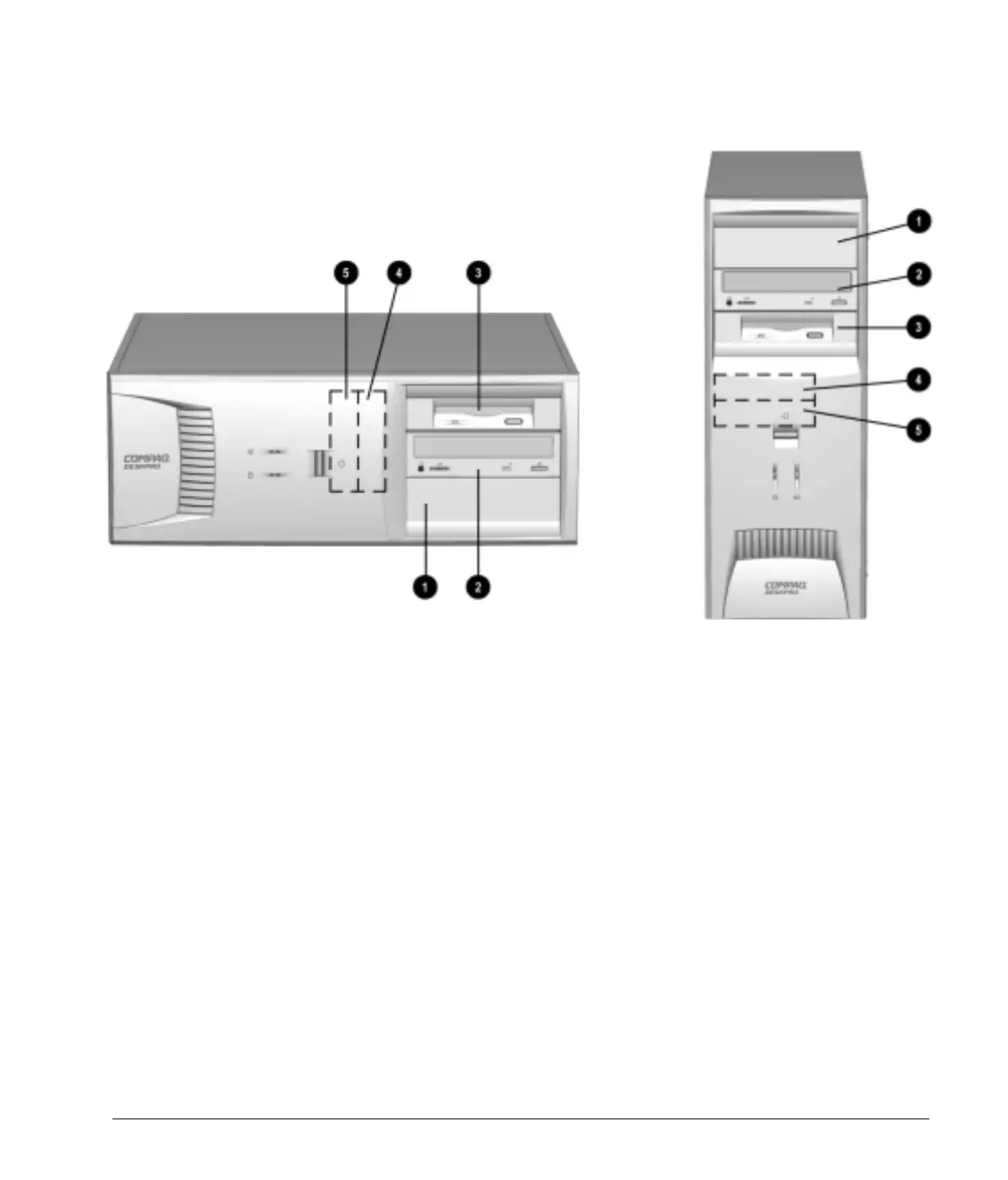

Drive Positions
Desktop Drive Positions
Minitower Drive Positions
12
Two 5.25-inch, half-height bays for optional drives (labeled as drive bays 1 and 2)
3
One standard 3.5-inch, 1.44-MB diskette drive mounted with a drive adapter in the
5.25-inch, one-third height bay (labeled as drive bay 3)
45
Two internal 3.5-inch, one-third height bays for hard drives (labeled as drive bays 4
and 5)
NOTE: Drive bay numbers are stamped on the chassis, behind the front bezel.
To verify the type and size of the storage devices installed in your computer, run Compaq
Computer Setup. Refer to the
Software Reference Guide
for more information.
