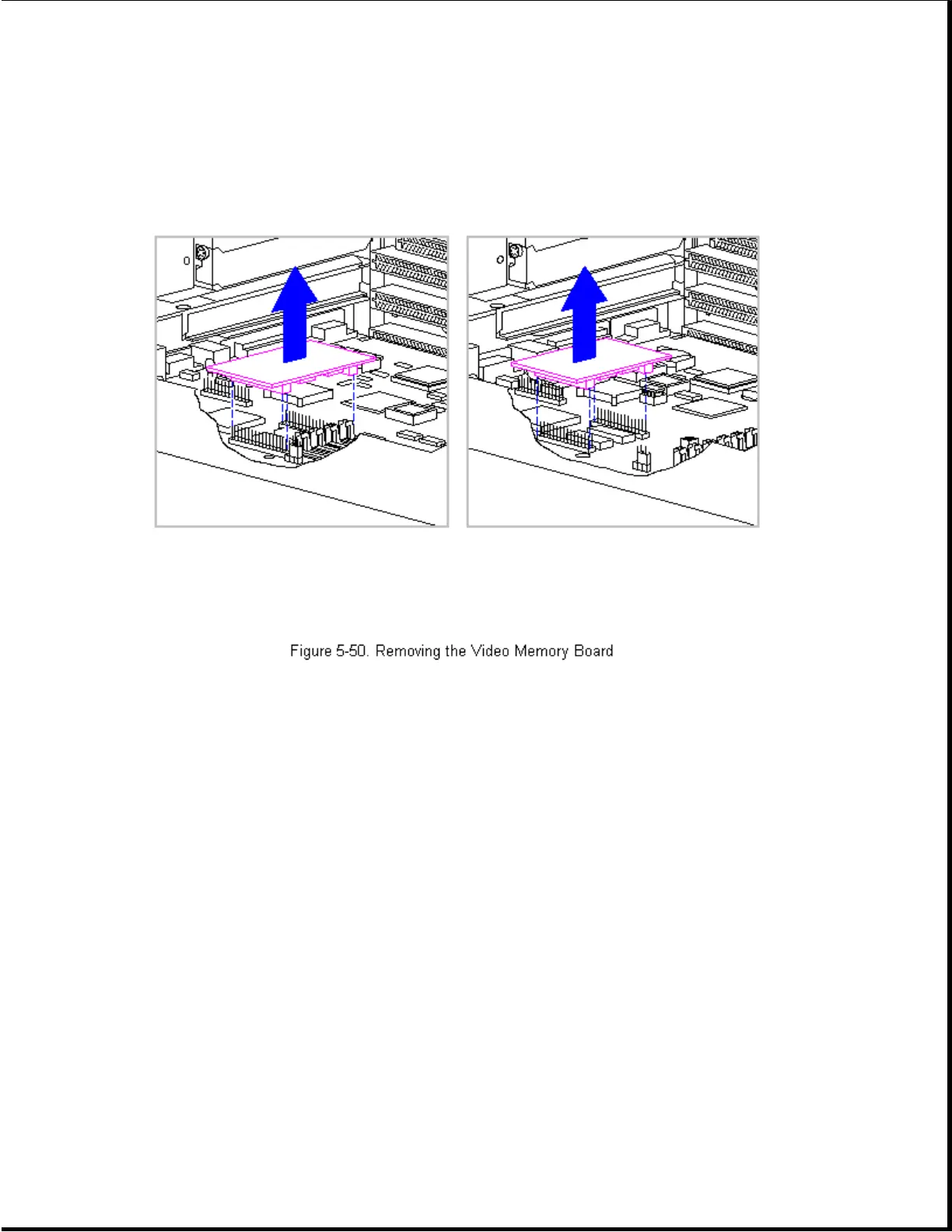

Reverse the above procedure to install a video memory board.
Chapter 5.19 QVision 2000+ Controller Memory Board
The QVision 2000+ Graphics Controller is installed in a PCI slot.
Reference Section 5.11 for removal and replacement of the board. To remove
and replace the 2 MB VRAM upgrade module on the board, complete the
following steps.
1. Complete the steps in Section 5.3 to prepare the computer for
disassembly.
2. Complete the steps in Unit Cover Removal and Replacement in Section 5.4
to gain access to the system board.
3. Complete the steps in Section 5.11 to remove the QVision 2000+ board.
4. Remove the video memory board as shown in Figure 5-51.
