Compaq Prolinea Family

13 - 14 OFF TI Sync Negotiation Enabled
===========================================================================
1.05 GB SCSI Hard Drive Jumper Settings

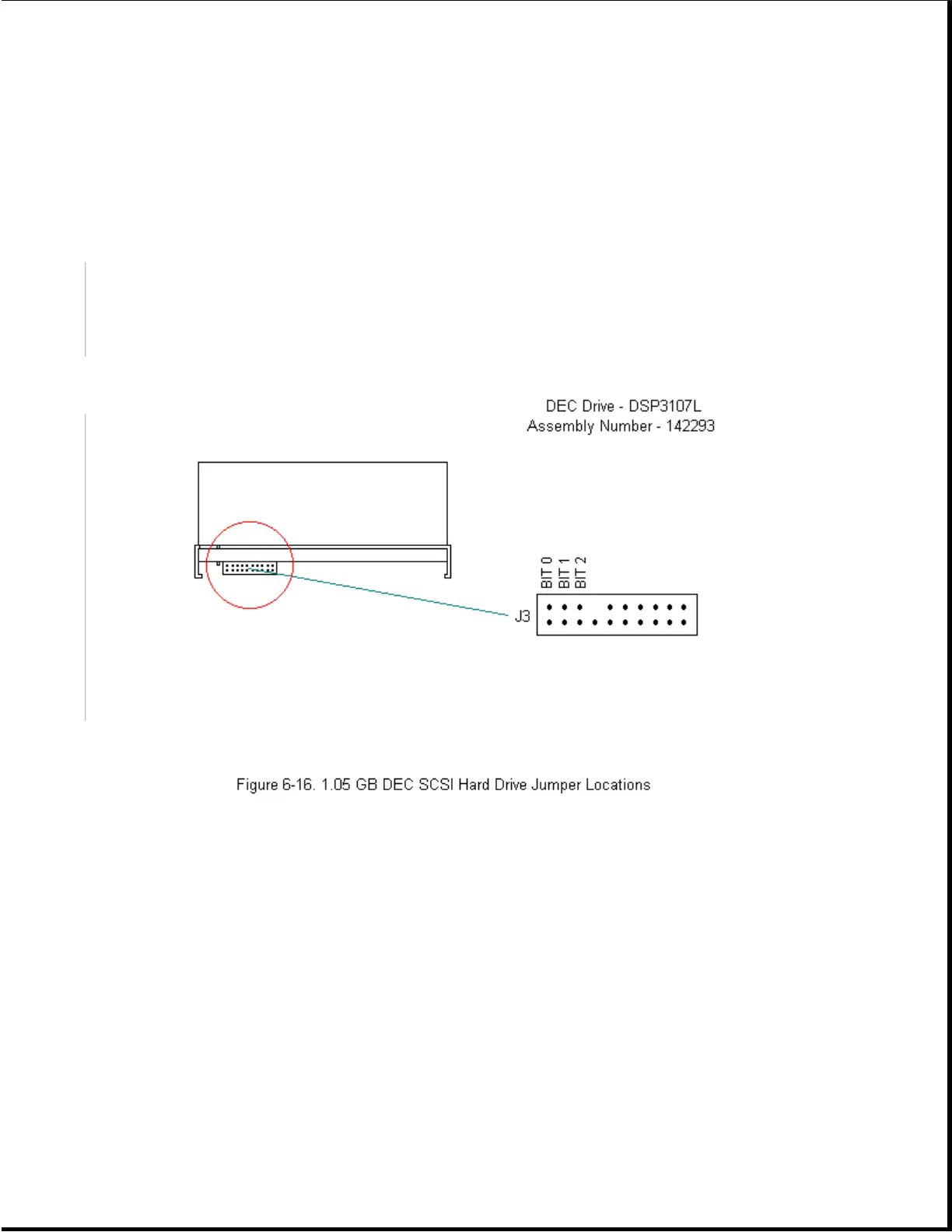

The jumper locations for the 1.05 GB SCSI hard drives are shown in Figures
6-16 through 6-21. See Tables 6-15 through 6-19 for jumper settings.
Table 6-15. 1.05 GB SCSI-2 DEC Hard Drive Jumper Options (Shipped
configuration below)
===========================================================================
Jumper Option Description
===========================================================================
1 - 2 PARK SCSI Address, Bit 0
3 - 4 PARK SCSI Address, Bit 1
5 - 6 OPEN SCSI Address, Bit 2
7 OPEN Fault LED
8 key
9 OPEN Busy LED
