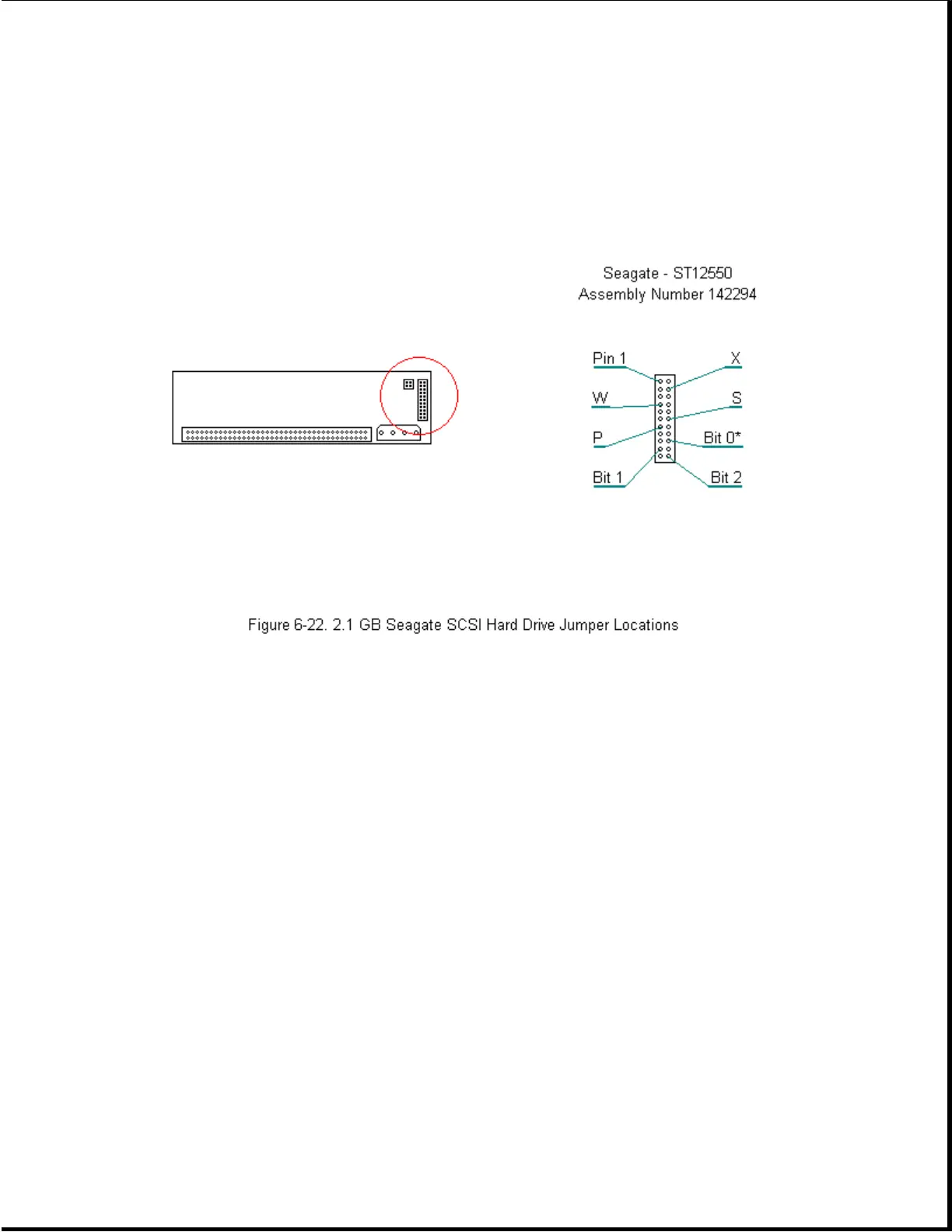

Table 6-20. 2.1 GB Seagate SCSI-2 Hard Drive Jumper Options (Shipped
configuration below)
===========================================================================
Jumper Option Description
===========================================================================
J01
---------------------------------------------------------------------------
1 - 2 ON Terminator Power SCSI Address, Unit Select 1
3-4 OFF
J04
---------------------------------------------------------------------------
1 - 2 OFF Spindle Sync Connector
3 - 4 ON Initiate SDTR Message at Power-On and Reset
5 - 6 OFF Remote LED Connector
7 - 8 OFF Write Protect Disabled
9 - 10 OFF Delayed Motor Start Disabled
11 - 12 ON Spin Up with Start Unit Command
13 - 14 OFF Parity Checking Enabled
