10. The power supply is now disconnected from the computer and can be
lifted out of the chassis.
Installing the Power Supply
To install the power supply, complete the following steps:

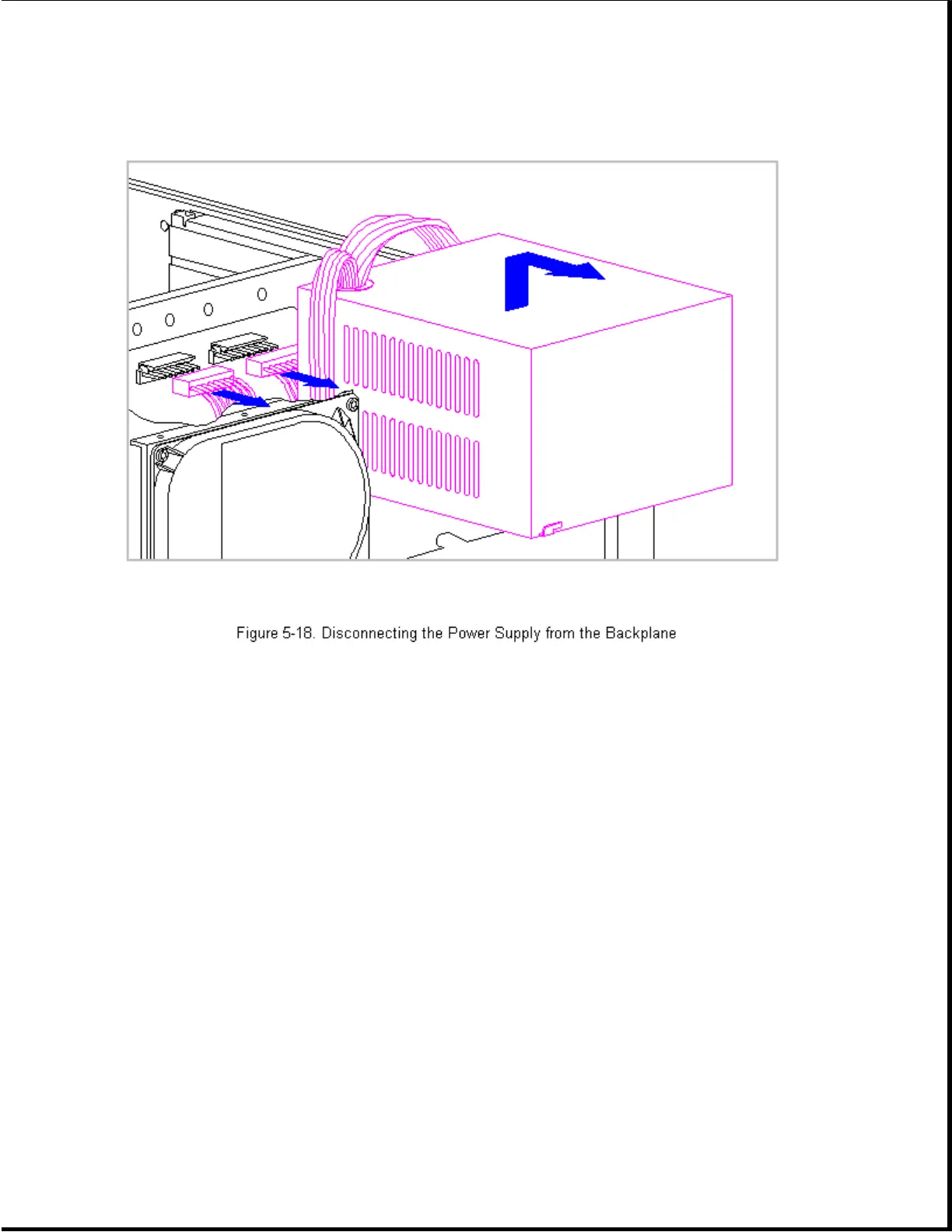

1. Position the power supply in its approximate mounting position and
connect the two power supply cables to the connectors on the backplane
(Figure 5-18).
2. Move the power supply into its mounting position, making certain that
it engages the tabs in the floor of the base pan, and install the four
power supply mounting screws (Figure 5-10).
3. Connect the power supply cables to the mass storage devices (Figures
5-15 through 5-17). These connectors are identical so they cannot be
connected improperly.
4. Route the power switch wires forward and engage the wires in the clips
provided on the floor of the base pan (Figure 5-14).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
