PM1323

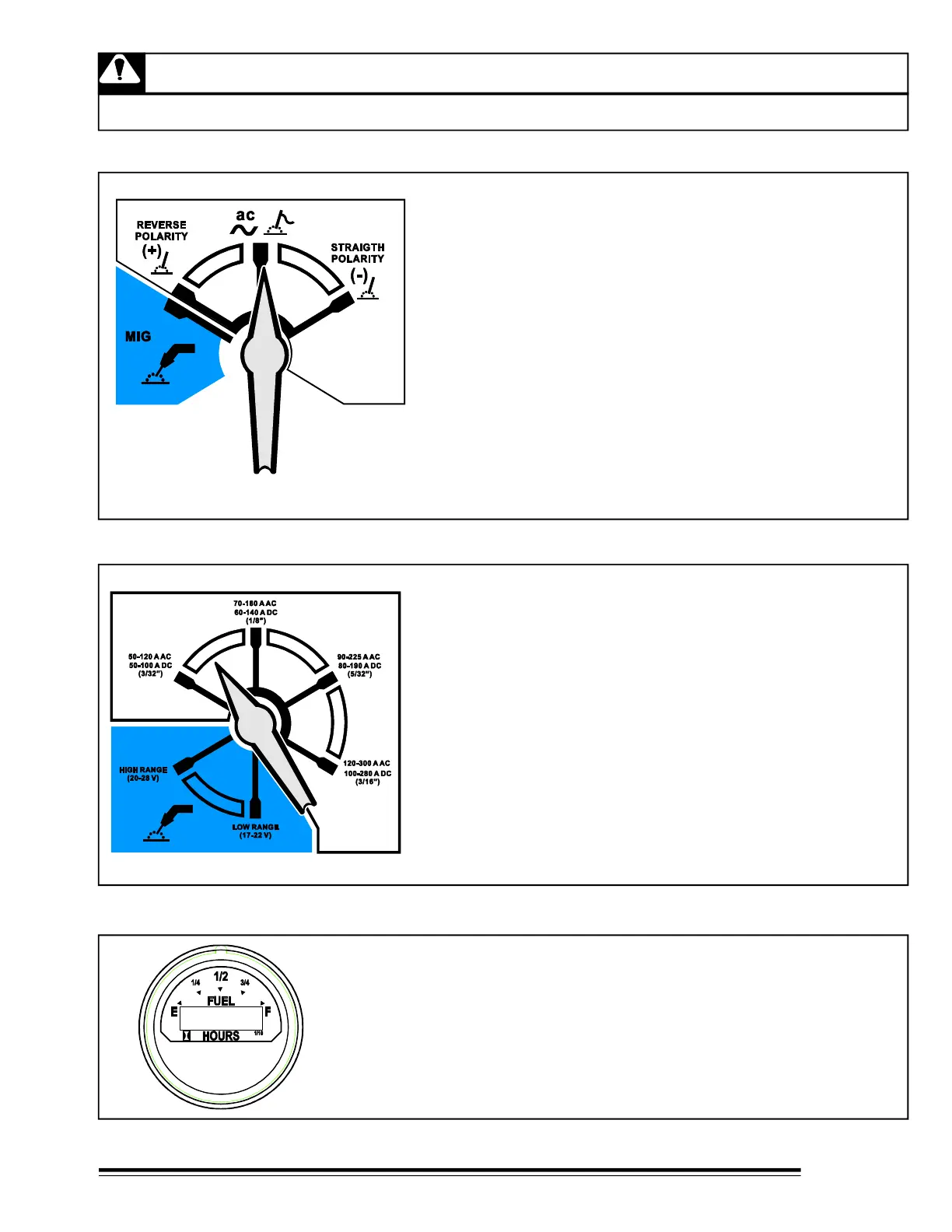

Weld process selector switch AC/DC
Use switch to select type of weld output.
For direct current electrode negative use STRAIG THPOLARITY
position. CD current CC mode.
For direct current electrode positive use REVERSE POLARITY
position. CD current CC mode.
For alternating current use ac position. AC current CC mode.
For CV option, use REVERSE POLARITY position and high
range or low range in coarse range selector. CD current VC
mode (See sec. 4-3).
CAUTION
ARCING can damage switch.Do not change AC/DC polarity switch position while welding.Arcing inside switch can
damage contact, causing switch to fail.
4-2 WELD PROCESS
Coarse range selector switch.
Use to select weld amperage range when weld selector is in CC
mode,or voltage range when weld selector is in CV mode.
4-3 COARSE RANGE SELECTOR
4-4 FUEL/HOUR METER
Hourmeter. Operates when ignition switch is acti-
ve "not necessarily when the motor is running".
Fuel meter. It indicates the level of filling of fuel
tank
8
