Comparc BRONCO 255K XD - SECTION 6 MAINTENANCE & TROUBLESHOOTING (Continued); Exitation Winding Protection; Engine Electrical System Protection

PM1323

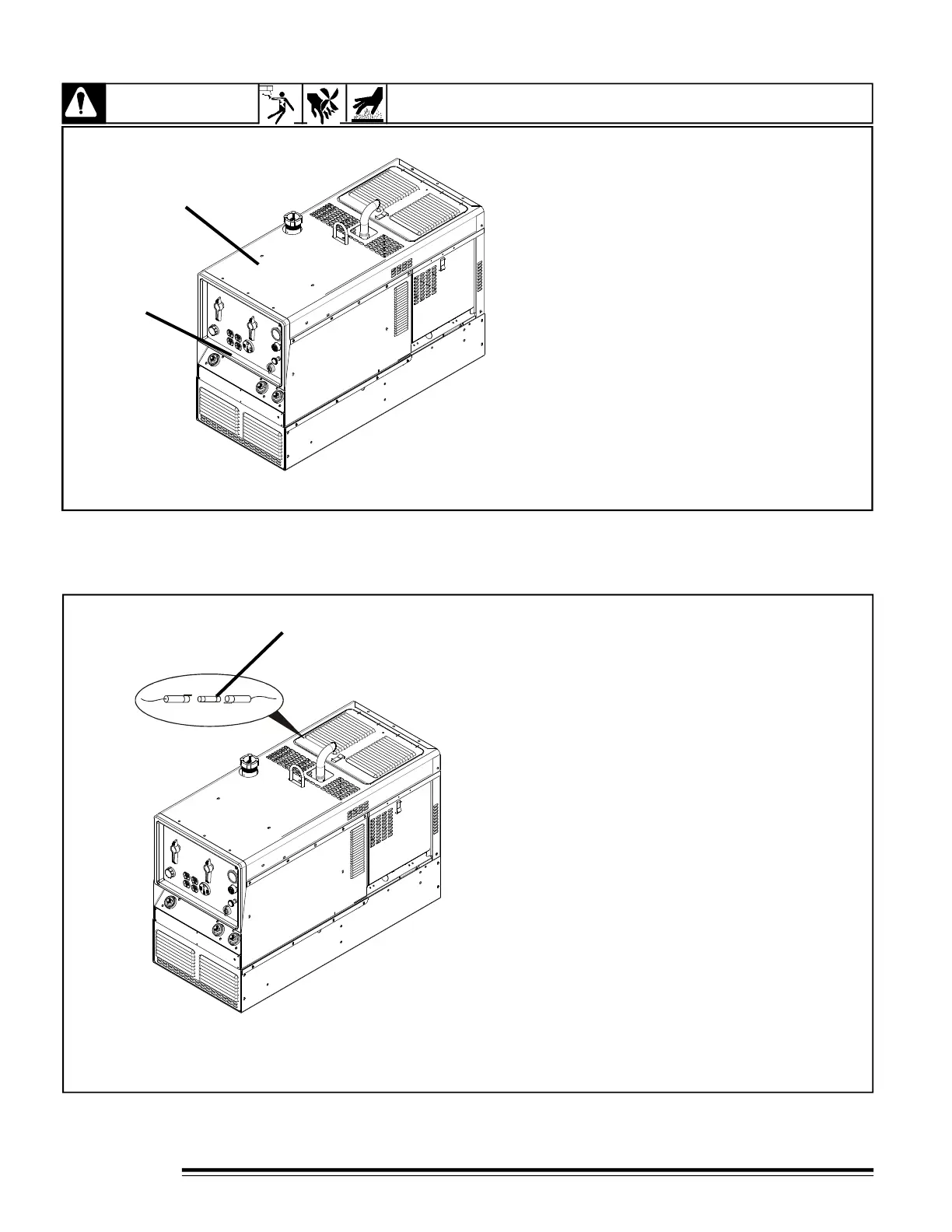

1.- Circuit breaker CB7
Protects the weld exitation winding from
overload. If CB7 opens, weld output stops
or is low.
6-7 EXITATION WINDINGS PROTECTION
WARNING
READ SAFETY BLOCKS at beginning of manual before proceeding.
1.- Fuse F6
The fuse F6 protect the engine electrical
sistem from overload, if F6 is open the
battery no charge.
6-8 ENGINE ELECTRIC SYSTEM PROTECTION
1
2.- Circuit breaker CB8
Protects the generator power exitation
winding from overload. If CB8 opens,
generator power output stops or is low.1
2
19
