PM1323
1
2

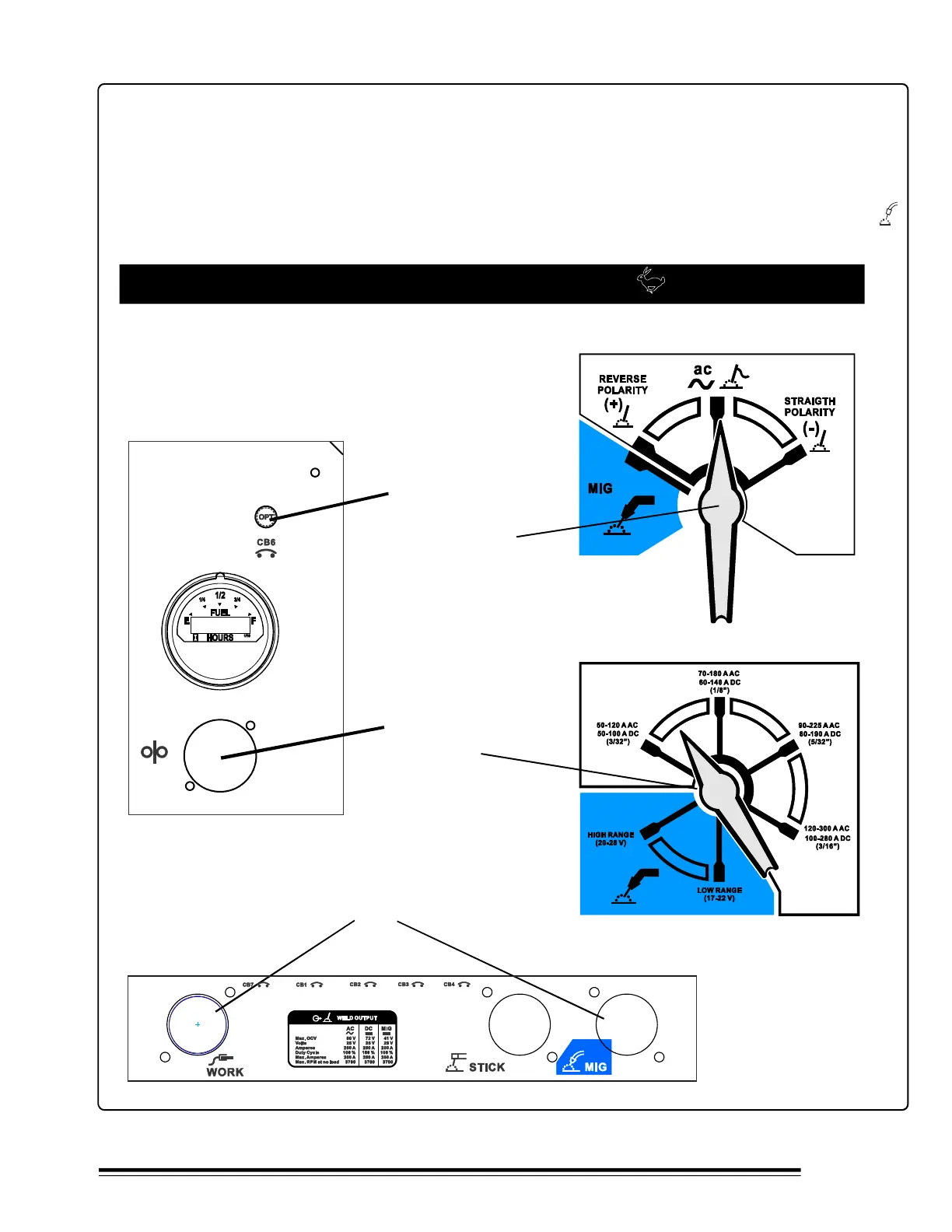

4-7 MIG WELDING OUTPUTS AND SETTINGS CONTROLS
1.- WELD PROCESS. Set this selector in REVERSE POLARITY.
2.- COARSE RANGE. Set this selector in HIGH RANGE or LOW RANGE according to your needs.
3.- CIRCUIT BREAKER CB6. Protects to 24 Vac winding agains overloads on receptacle RC4.
4- RECEPTACLE RMT 14 (RC4) Insert the conector of the wire feeder, and tighten firmly. this reeceptacle
supply 24 Vac to wire feeder.
5.- WELD OUTPUTS. Connect work clamp to WORK terminal. Connect the wire feeder to MIG terminal.
5
IMPORTANT When wire feeder use is required, set engine control on position (See- sec 4)
3
4
10
