3 Installation and Connection
3.1 Installation

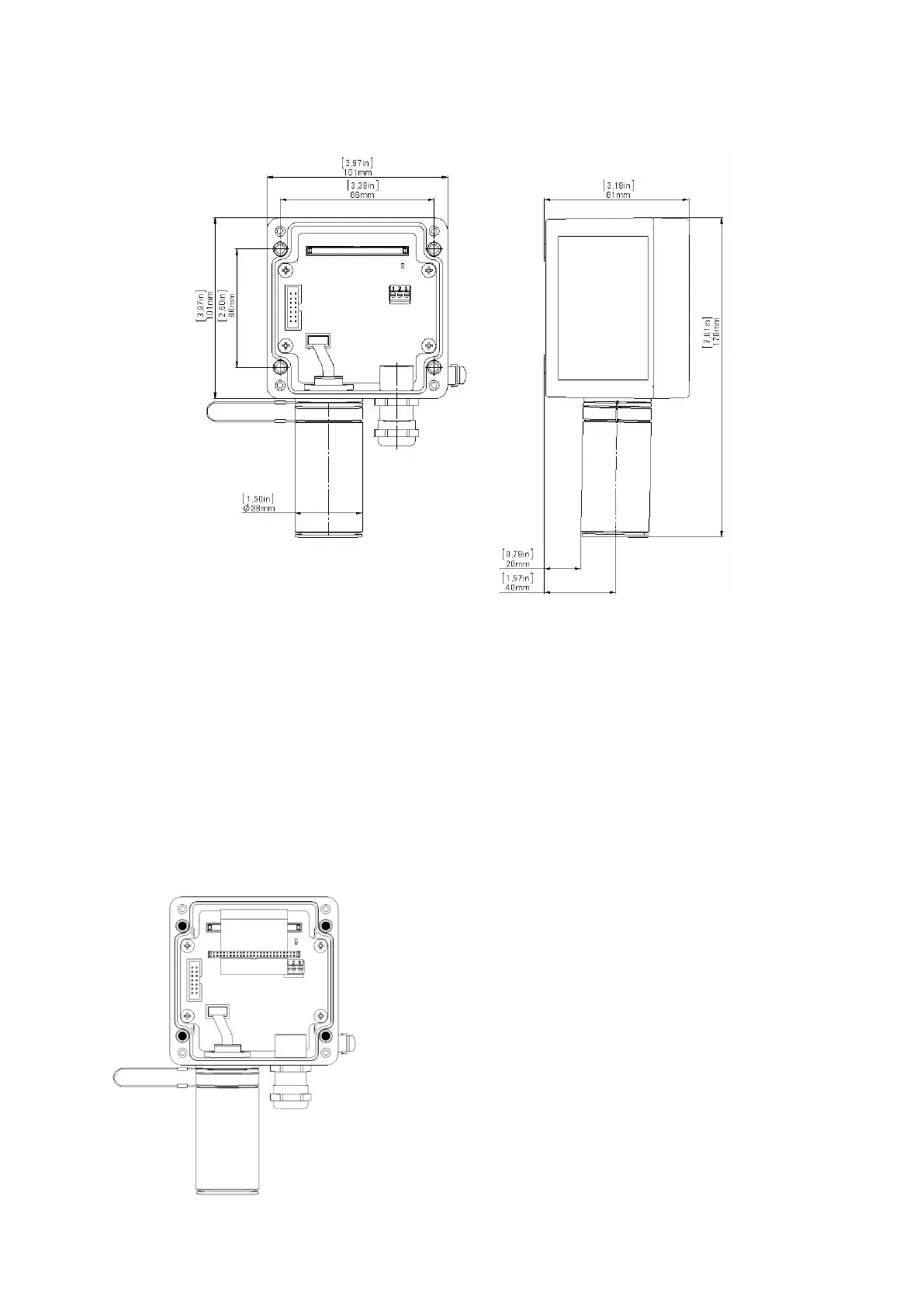

Drilling plan and dimensions Statox 506
Statox 506 should be installed close to a potentially dangerous location or in between a dangerous
location and a workplace. Some parameters may have an impact on the measurement:
Air flow (wind, ventilation, thermal impact)
Specific gas properties such as density
Protection from direct sunlight, splash water, dirt etc.
Take care for good accessibility for maintenance and repair.
Loosen the 4 captive screws. Put the cover on a clean place. In order to ease installation, the flat cable is
not connected ex works.
Fasten the housing to the wall.
Screw specs: Ø ≤ 4.5 mm, head Ø ≤ 6.9 mm.
Install in an upright position with the sensor downwards!
Avoid ingress of dust or humidity.
Connect the cable as shown in chapter 3.2.
Connect the cover to the pcb with the flat cable. The plug is
mechanically coded.
Fasten the cover.
