DMD1050 Satellite Modem Board Web Browser
RESET LATCHED ALARMS
FORCE ALARM TEST
Alarms / Common Menu
Clicking on this button will reset (Clear) all Latched Alarms
Clicking on this button will force alarms.

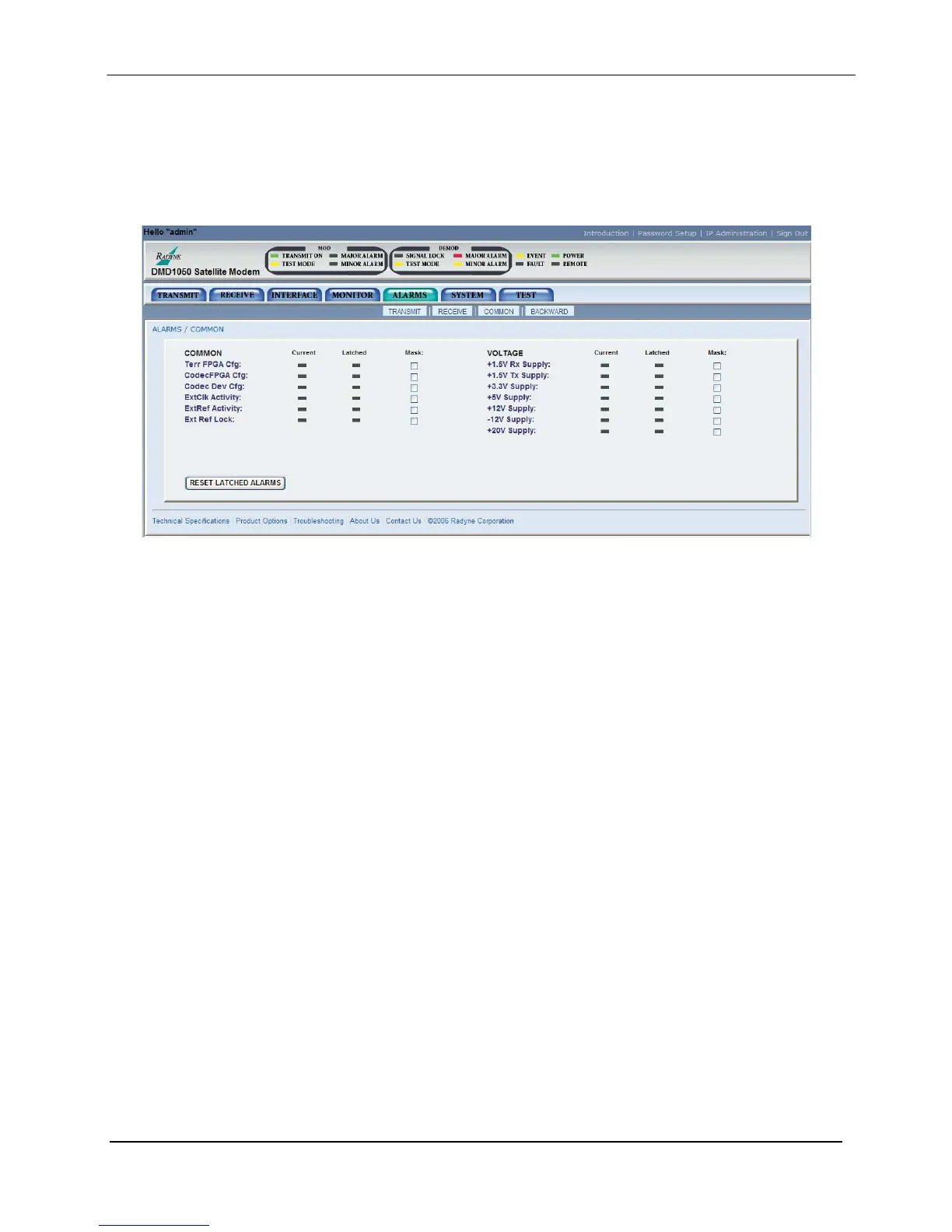

Figure 7-24. Alarms / Common Menu
COMMON ALARMS
Terr FPGA Cfg: {Pass/Fail, Unmasked/Masked}
Indicates an Interface Card FPGA configuration failure.
Codec FPGA Cfg: {Pass/Fail, Unmasked/Masked}
Indicates Turbo Codec Card FPGA configuration failure.
Codec Dev Cfg: {Pass/Fail, Unmasked/Masked}
Indicates Turbo Codec Card ASIC configuration failure.
ExtRef Activity: {Pass/Fail, Unmasked/Masked}
Indicates External Reference Activity failure.
ExtRef Lock: {Pass/Fail, Unmasked/Masked}
VOLTAGE ALARMS
+1.5V RX Supply {Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the 1.5 Volt Rx power bus
located inside the modem.
-1.5V TX Supply {Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the 1.5 Volt Tx power bus
located inside the modem.
MN-DMD1050 7–41
Revision 9
