DMD1050 Satellite Modem Board Web Browser
+3.3V Supply {Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the +3.3 Volt power bus
located inside the modem.
+5V Supply {Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the +5 Volt power bus located
inside the modem.
+12V Supply {Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the +12 Volt power bus located
inside the modem.
+24V Supply {Pass/Fail, Unmasked/Masked}
Displays the measured voltage of the +24 Volt power bus located
inside the modem.
RESET LATCHED ALARMS Clicking on this button will reset (Clear) all Latched
Alarms
Alarms / Backwards Menu

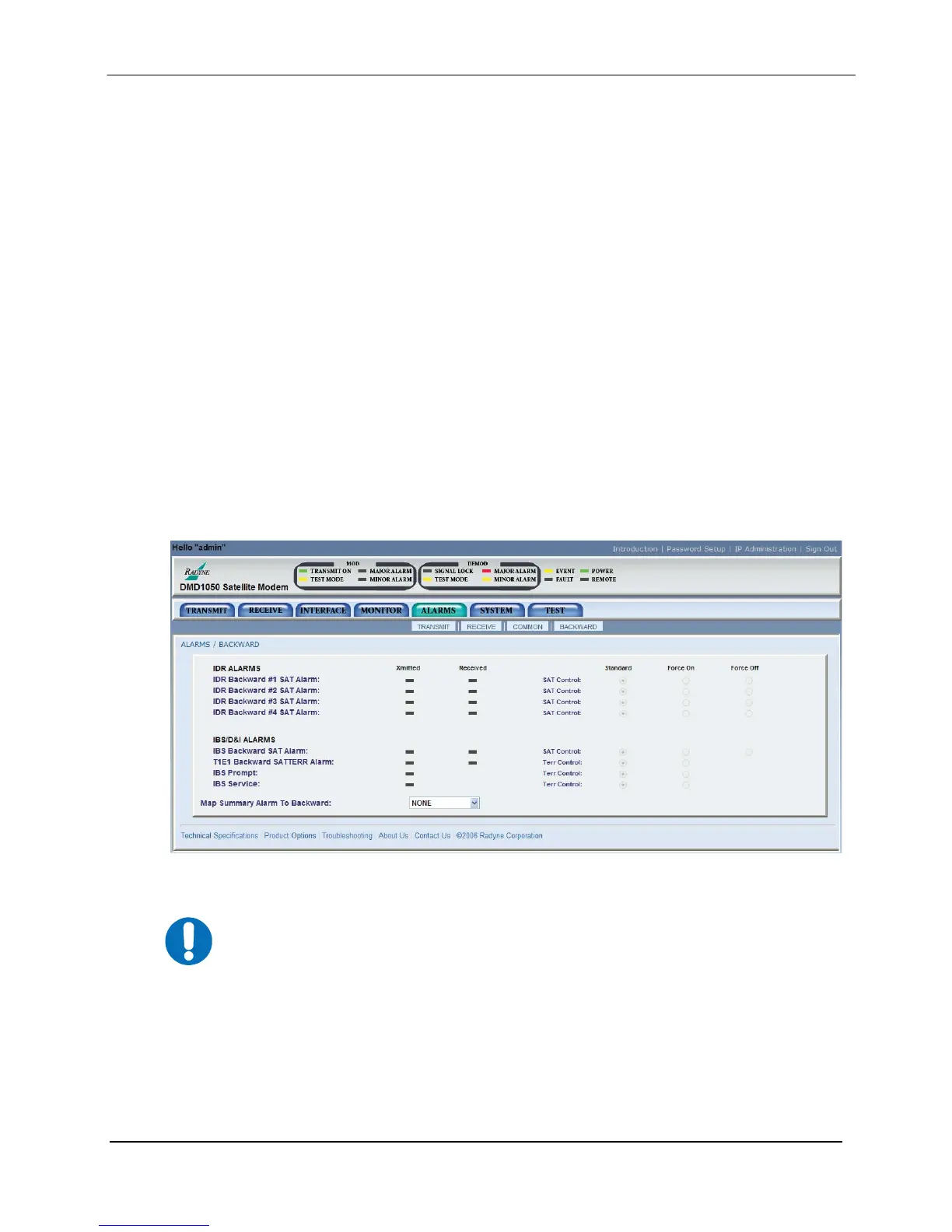

Figure 7-25. Alarms / Backwards Menu
IBS and IDR Backward Alarms are only available via User Interface i.e.
Web Browser, SNMP, Terminal Screens and RLLP. There are no physical
contacts available for the backward alarms.
IDR ALARMS
IDR Backwards #1
SAT Alarm: {Pass/Fail, Unmasked/Masked}
MN-DMD1050 7–42
Revision 9
