I n s t a l l a t i o n l 3 -1 1
3
I n s t a l l a t i o n
C o n n e c t i n g the Af t e r c o ol e r (O pt i on a l)
The aftercooler and optional precooler require a source of city, tower, or chiller water and a
discharge or return line. You can use water at temperatures of 45 to 85°F {7 to 29°C}. But
the water flow should be at least 3 gal/min {11.4 liters/min}. See Appendix B for installa-
tion and water connection instructions for the optional precooler.

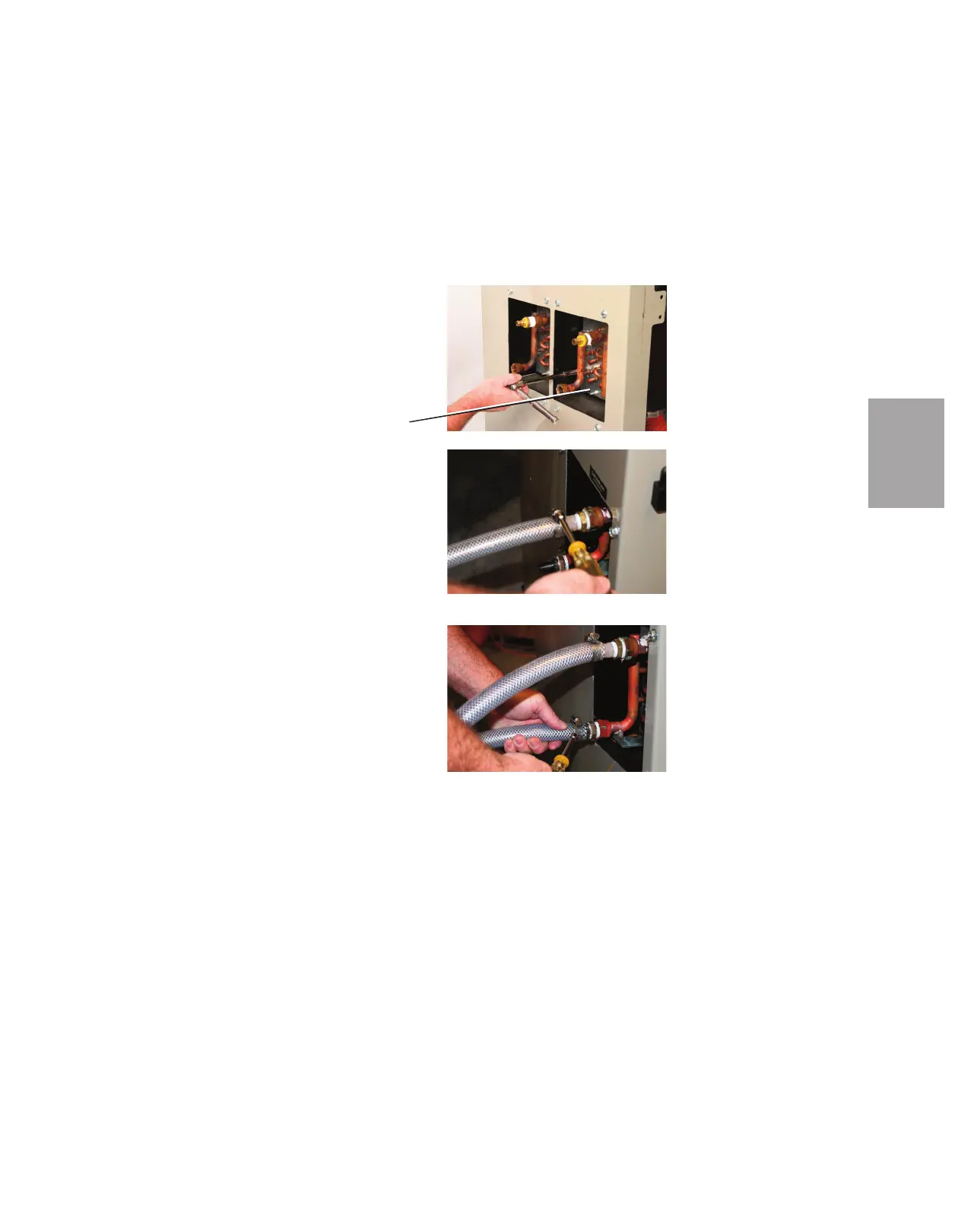

1 Secure the aftercooler assembly in the after-
cooler housing using the six screws.
2 Connect the water supply line to the aftercool-
er inlet. If a manual shut off valve is used, it
should be mounted on
the inlet line.
3 Connect the water discharge or return line to
the aftercooler outlet.
IMPORTANT: Turn the water off when the dryer is not in use to preventcondensation.
✒
TIP: Make the water supply and dis-
charge / return connections with
flexible hoses at least 24 in.
{61 cm} long. This allows you to
easily remove the aftercooler
assembly for cleaning.
✒
TIP: If an optional flow control is also
being installed with the aftercooler,
the manual shut off valve should be
installed on the inlet line for the flow
control.
Aftercooler
