4 - 5 6 l Op e ra ti o n
C o n t r o l Fun c ti o n D es c ri p ti o ns -
S t a n d Al o ne Co n f i g u r a t i o n

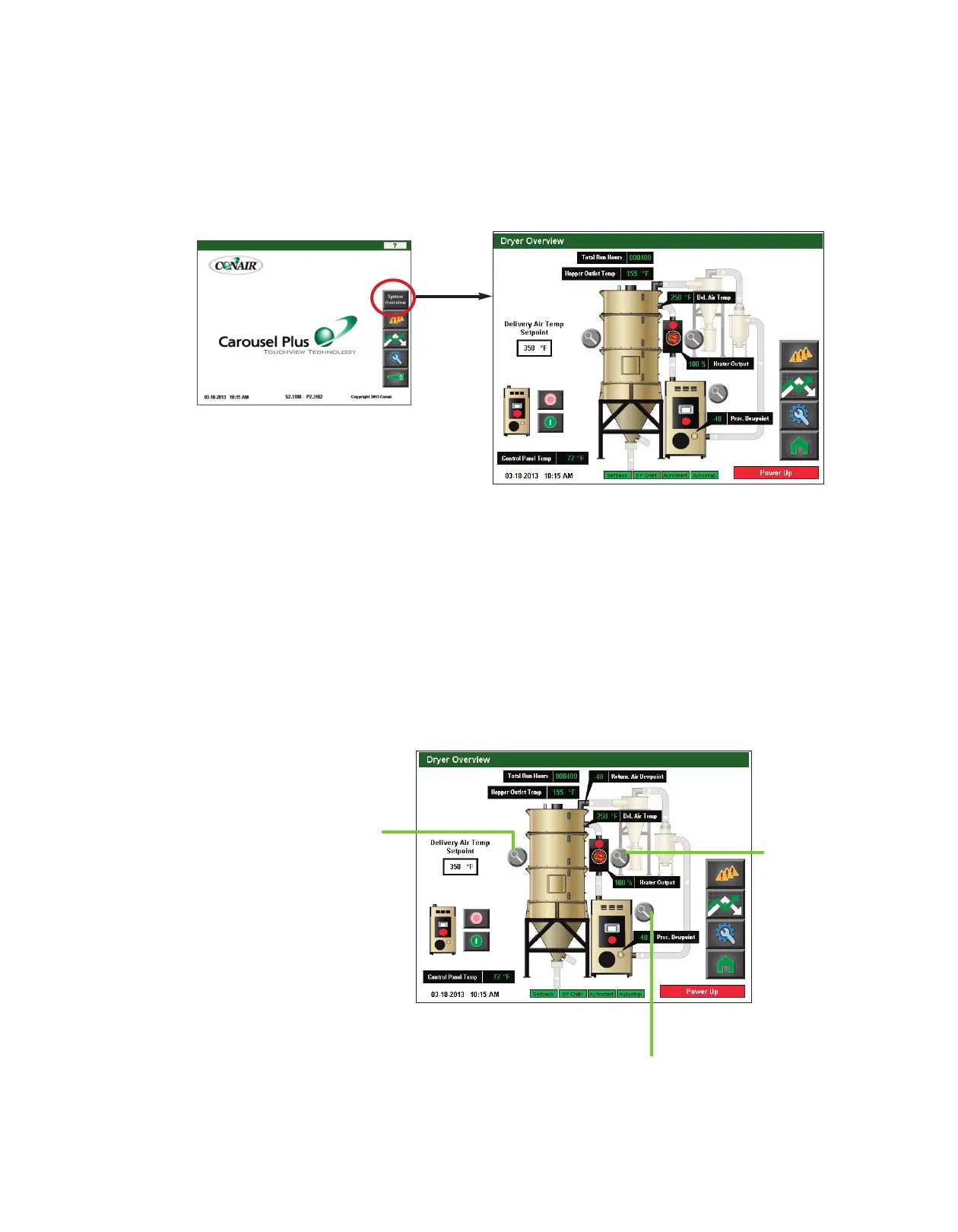

Dryer Overview Screen
To access the Dryer Overview Screen:
1 Press the Dryer Overview button located on the home screen.
The Dryer Overview screen provides the user with the current live information concerning
the delivery air temperature, the process dewpoint, the total run hours, and the ambient tem-
perature.
This screen also allows the user to use the zoom buttons and select the dryer detail informa-
tion or the hopper(s) detail information.
NOTE: On this Overview screen,
live data is displayed. Data is
displayed as colored text inside a
solid black box. Set points boxes
are white with heavy black bor-
ders. Set points can be changed,
if the user has logged in at the
proper security level, by pressing
the set point boxes. This will
launch a pop-up keypad window
that can be used to change the
set point.
See Operation section
entitled, How to Navigate the
Control Screens.
After the new
set point value has been entered,
press the "Enter" key to lock in
the new set point.
✐
DM-II zoom
(if applicable)
Dryer zoom
Delivery
Air
Heater
zoom
NOTE: The dots on the Heater
Pack and dryer (shown as red on
the screen to the right) indicate
current operating status.
Red=stopped
Green=on/running
During the shut down process,
the dot on the dryer stays green
until has cooled down.
Cycling between red and green
on the heater pack is normal.
This indicates that the heater is
turning on and off as necessary.
✐
To Next Page
