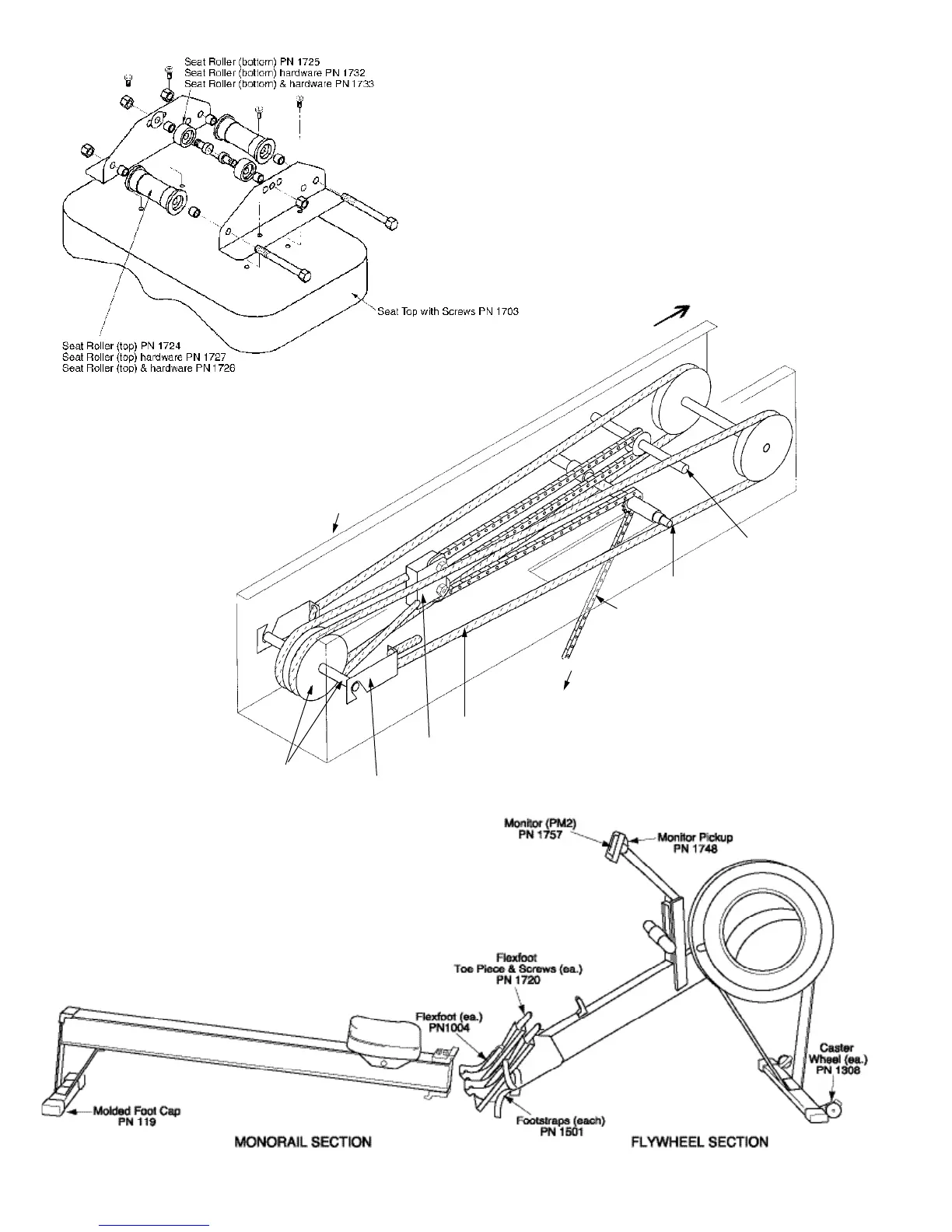

Concept2 INDOOR ROWER - Schematic Diagrams with Part Numbers

2
Seat Carriage
indoor rower parts
Return Mechanism
schematic diagrams
with part numbers
FRONT OF MACHINE
Shock Cord Pulleys (4) PN 1011
and Axles (2) PN 1130
S.C.A.M.s (2) PN 1104
Travelling Pulley Assembly PN 1756
Shock Cord (12.5') PN 1731
Chain Assembly PN 1716
Flywheel Axle PN 1113
and Sprocket PN 1112
Idler Pulley PN 1024
Idler Axle PN 1130
TO HANDLE
FLYWHEEL SIDE
OF MACHINE
