20
2.

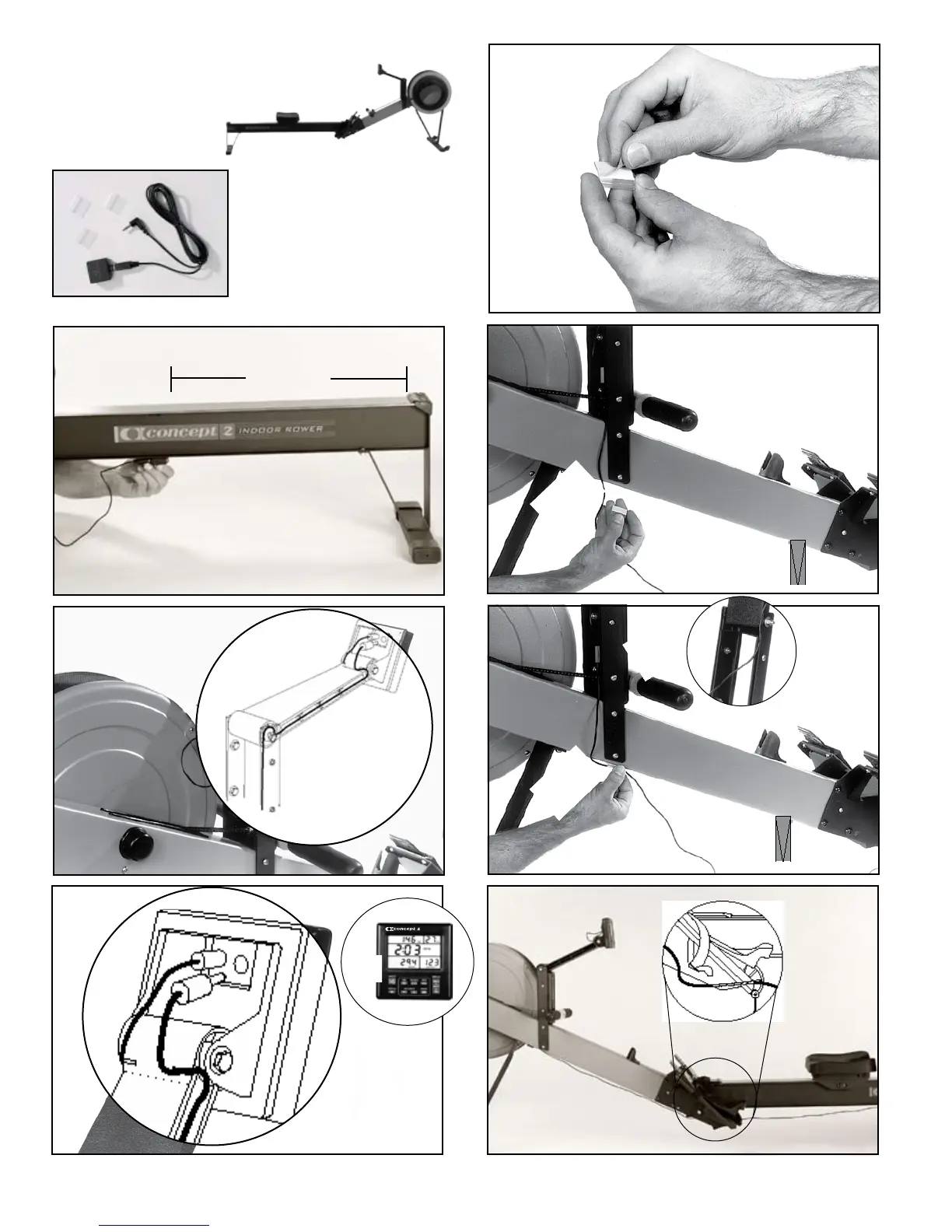

THE OPTIONAL PM2
HEART RATE INTERFACE
Installing on Model C
4.
1.
3.
2.
7.
6.
5.
for machines built after 7/1/95
for machines
built before 7/1/95
NOTE FOR STORAGE: before you disconnect monorail from front end, remove
receiver from VELCRO
©
patch and remove cable from framelock area.
PN 1761
Route wire through
framelock.
21"/53 cm
Placement of wire should be
the mirror image of the monitor
wire on other side of arm.
OFF
