Connect Tech Anvil - Power Connector; 10 G Ethernet (2 Ports)

Anvil Embedded System
Users Guide
www.connecttech.com
Document: CTIM-00066
Revision: 0.00
Page 14 of 30
Date: 2023-04-05

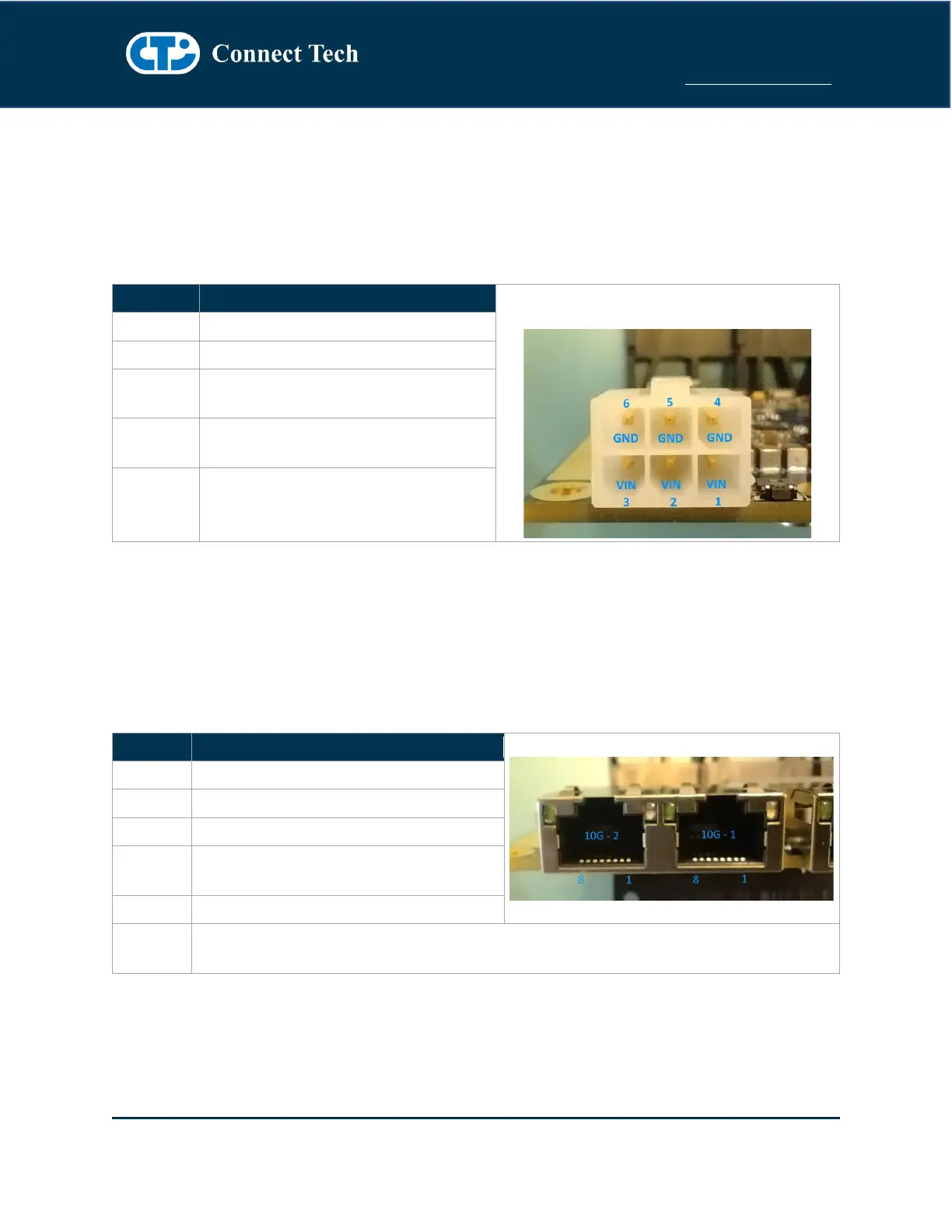

Anvil Embedded System Isolated CAN Connector
Power Connector
Power Input: 10-36V input range
Connectors
Function
Forge Power Supply Connector
Location
P6
Type
Mini Fit Jr 2x3 Right Angled
Connector
Part Number: 39301060
Manufacturer: Molex
Mating
Connector
Receptacle Housing 5557 series
Cable Assembly 45135 series
Pinout
Pin 1-3 are Power Input (VIN) 10-36V
Pin 4-6 are Ground (GND)
10G Ethernet (2 Ports)
Two ports of RJ45 10G BASE-T Ethernet for high-speed networking.
Connectors
Function
10 GBE Network Connectivity
Location
P10
Type
2x 8 pin RJ45 with integrated Magnetics
Connector
Manufacturer: Pulse
Mating
Cable
Standard RJ45 CAT 6a
Pinout
As per the IEEE-802.3 specification
Notes
Both Channels use AQR113 PHYs Originating from MGBE0 and MGBE1 on the AGX Orin™
Module.
