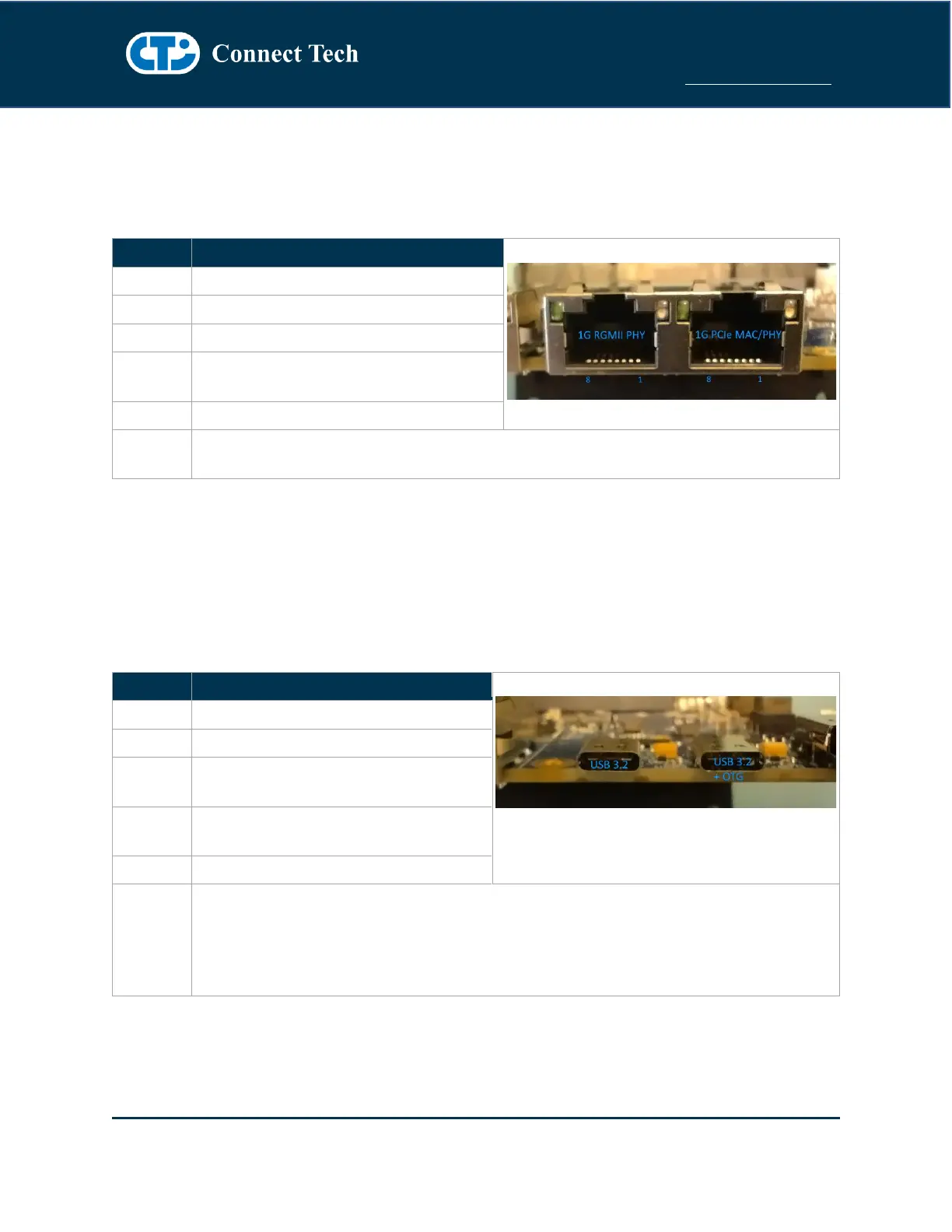

1G Ethernet (2 Ports)
Two ports of RJ45 1G BASE-T Ethernet for networking.
Connectors
Function
GBE Network Connectivity
Location
P9
Type
2x 8 pin RJ45 with integrated Magnetics
Connector
Manufacturer: Pulse
Mating
Cable
Standard RJ45 CAT 5e or better
Pinout
As per the IEEE-802.3 specification
Notes
1G RGMII PHY Sources from the AGX ORIN Module. The 1G PCIe MAC/PHY sources from a
PCIe device (Intel i210 or equivalent).
USB 3.2 (2 Ports)
Two ports of USB 3.2 Type-C interfaces with 3A at 5V output capable per port.
Connectors
Function
USB 3.2 General Purpose Ports
Location
P11A, P11B
Type
2x 26 pin Type C USB Connectors
Connector
Part Number: 632723300011
Manufacturer: Wurth
Mating
Cable
Standard USB 3.0 Type C or better
Pinout
As per the USB 3.2 specification
Notes
One USB port is only a DFP (Downward facing port), the second is capable of both DFP and
UFP (Upward Facing Port). The OTG port (P11A) is used for module Flashing access in
recovery mode. Each USB port is capable of delivering up to 3A at 5V at USB 3.2 Gen 2
(10Gbps) speeds for both ports. Note that alternate modes for power or video are NOT
supported on these USB interfaces. USB devices only.
