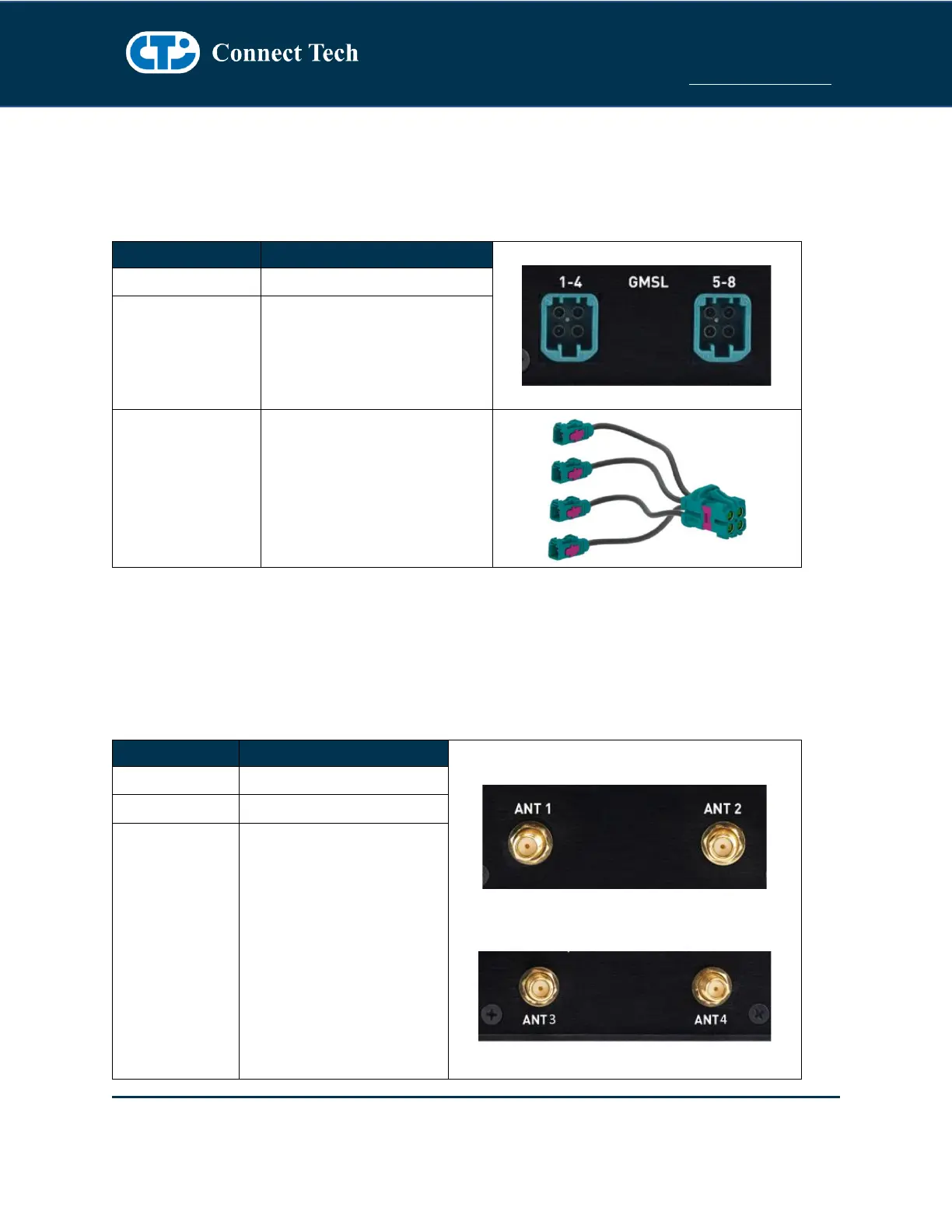

GMSL 1/2 Connector (with an included JCB002)
The The Anvil Embedded System allows GMSL 1 or GMSL 2 through the Quad MATE-AX connectors. The
GMSL to MIPI Deserializers are embedded on the carrier board which use 4-Lane MIPI video per 2
cameras. Additionally, the The Anvil Embedded System outputs +12V Power Over COAX (POC).
Function
Description
Location
Front
Type
GMSL 1/2 Quad Camera
Connectors
Mating Cable
Quad Fakra GMSL Cable
4 Position MATE-AX to 4 x
FAKRA Z-code 50Ω RG174 Cable
CTI P/N: CBG341
Antenna Connectors
The The Anvil Embedded System chassis implements 4x SMA Antenna Connectors (Optional) for the
internal M.2 2230 E-Key (WiFi/Bluetooth) and M.2 3042 B-Key (Cellular).
Function
Description
Front
Back
Location
Front and Rear
Type
SMA RP-FEMALE Connector
Mating
Connector
Antenna Connector
SMA RP-MALE
