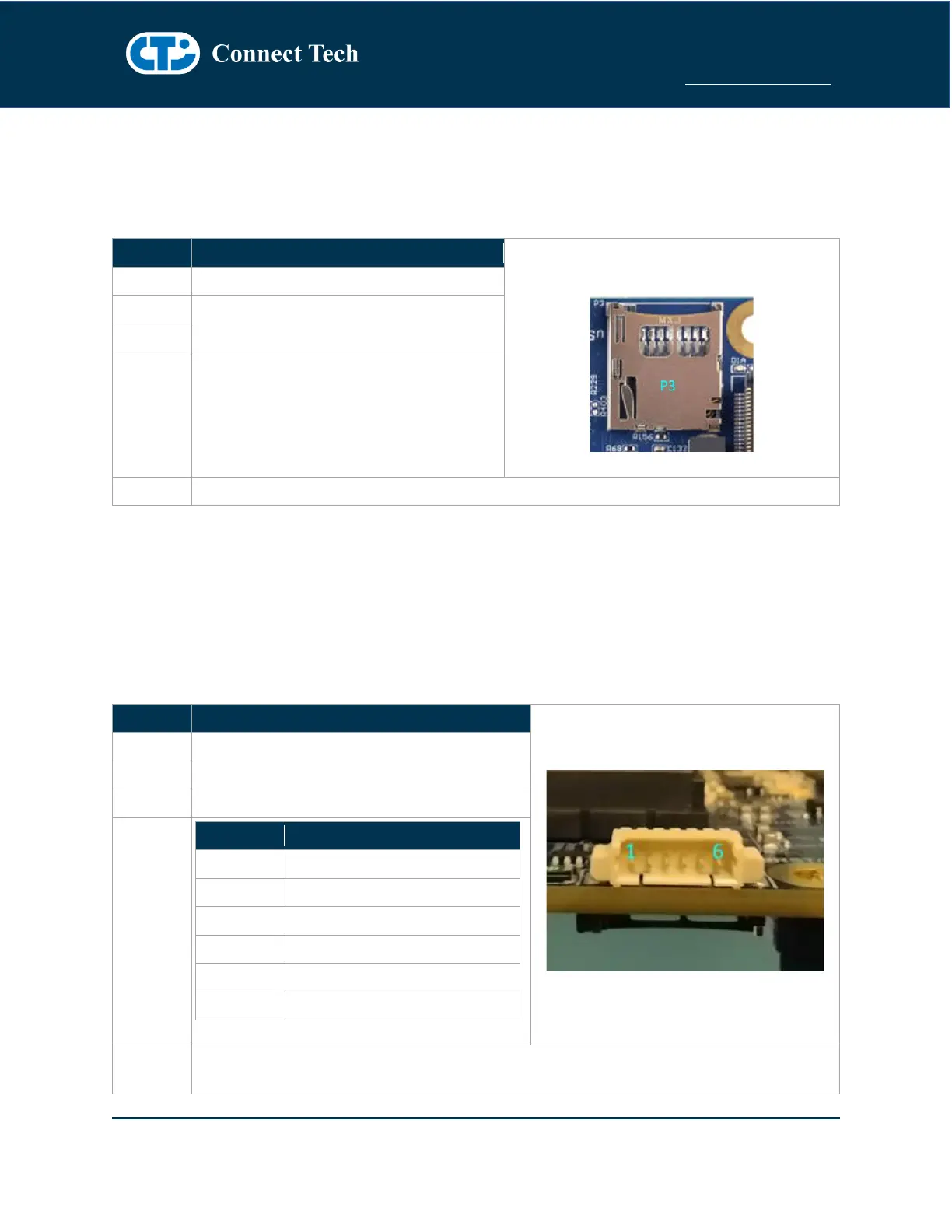

Micro SD Card Slot
The Anvil has one micro SD cards slot.
Connectors
Function
Memory expansion
Location
P3
Type
Push-Push Micro SD cards holder
Connector
502570-0893 from Molex
Pinout
See Micro SD specification
Notes
Supported speed grades DS, HS, SDR12, SDR25, SDR50, SDR104, DDR50.
External Power/Reset/Force Recovery Connector
The Forge has a connector to provide external connections for PWR, RESET and FORCE RECOVERY.
Connectors
Function
External Power/Reset control
Location
P7
Type
6 pin Pico blade
Connector
53261-0671 from Molex
Pinout
Pin #
Description
1
Force Recovery Button
2
GND
3
Reset Button
4
GND
5
Power Button
6
GND
Notes
Note all signals here are active low and have internal 5.0V 10kohm pullups. Connect to
GND to activate.
