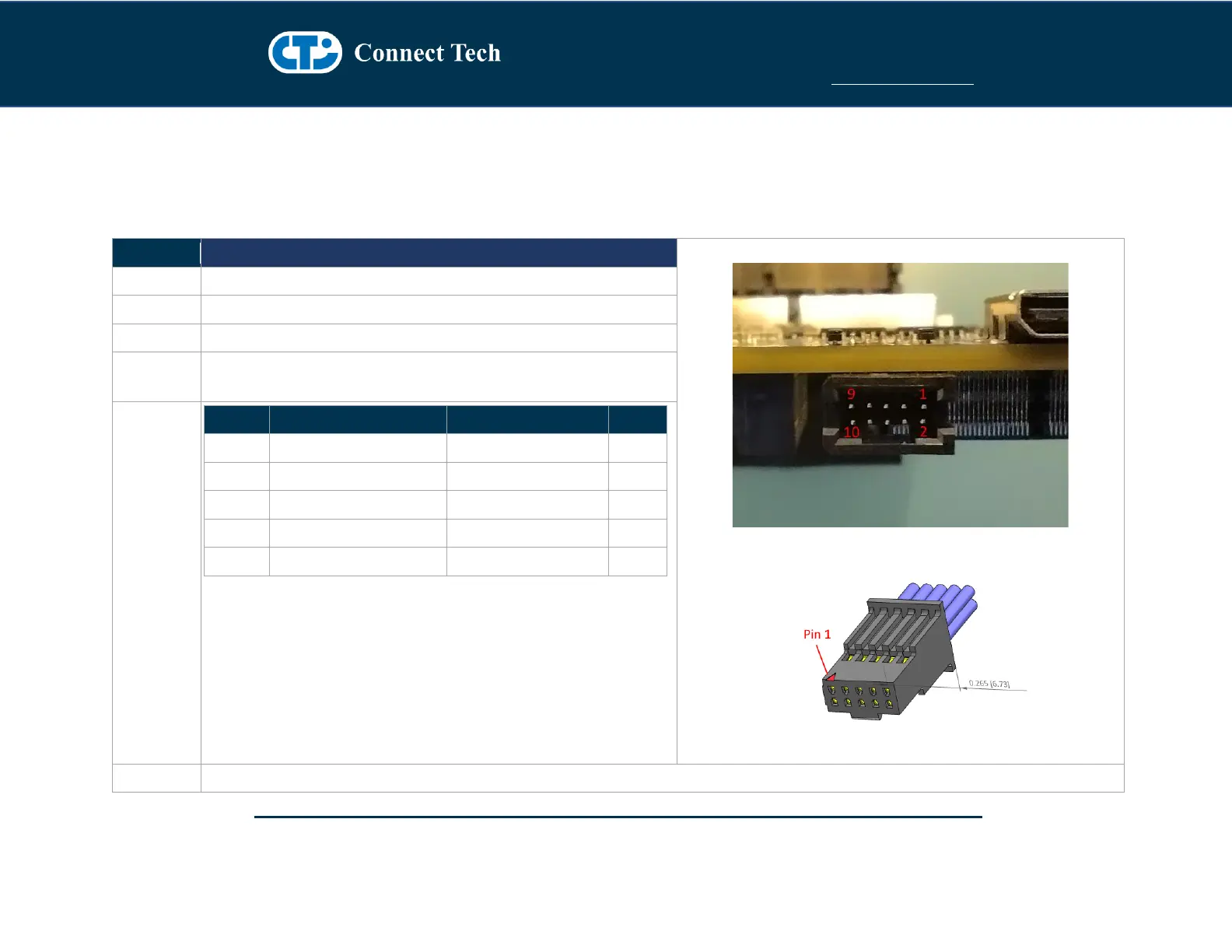

CAN BUS Interfaces
Two non-isolated CAN Bus interfaces are available on
Connectors
Function
CAN Bus Interface
Location
P18
Type
10 pin dual CAN Bus Connector
Connector
Samtec TFML-05 series
Mating
Cable
SFSD-05-28-G-12.00SL
(SL or DL = Friction Lock required for locking fit)
Pinout
Pin #
Description
Description
Pin #
1
CAN0_H
CAN0_L
2
3
GND
GND
4
5
NC
NC
6
7
GND
GND
8
9
CAN1_L
CAN1_H
10
Notes
Connector pinout allows for it to be rotated without causing damage.
