Connect Tech Anvil - Included Mounting Backets

Anvil Embedded System
Users Guide
www.connecttech.com
Document: CTIM-00066
Revision: 0.00
Page 29 of 30
Date: 2023-04-05

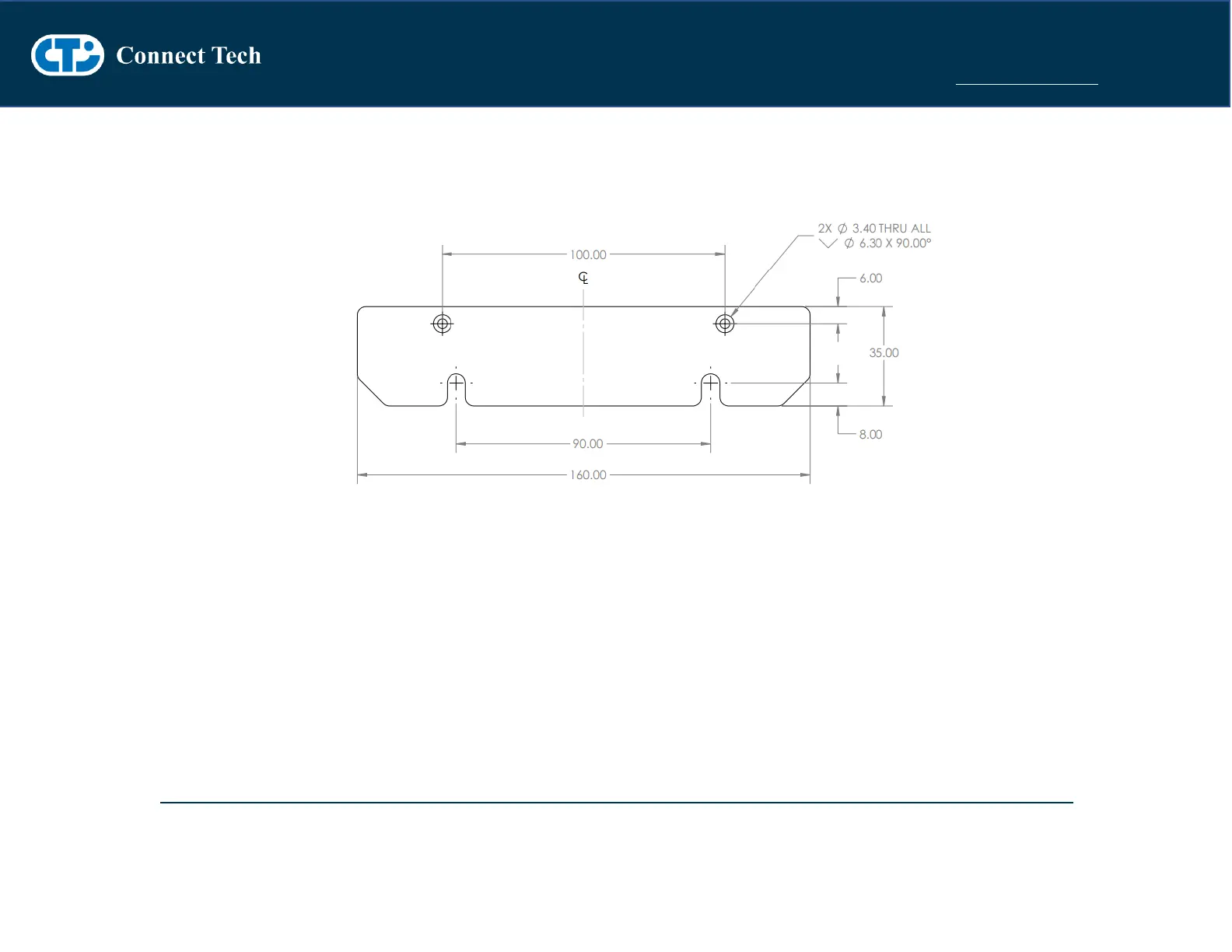

Included Mounting Backets: Each unit comes with rubber feet pre-installed. If required remove the rubber feet first before attaching the
included mounting bracket using the supplied black 6mm M3 screws. Material of the bracket is 12GA aluminum (approx. 2mm thick).
