Consilium PG11 - Page 15

Operating Manual PG11 / PGE11 Page 15

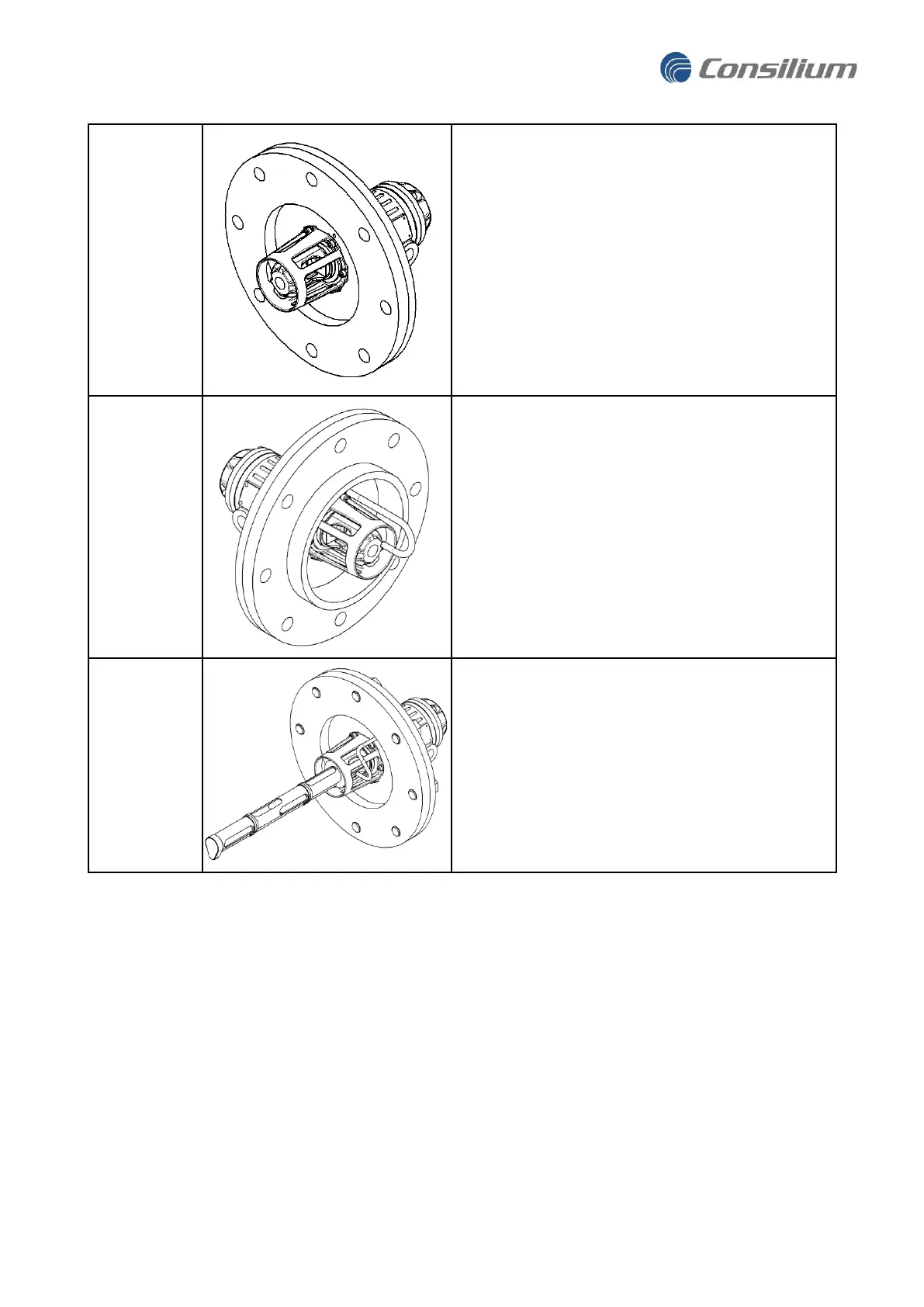

PG11
mounted in
the Duct
flange kit
Detector can easily be removed from the duc t to
perform a Gas test.
Nozzle not used for gas testing.
PG11
mounted in
Duct flange
with gas test
line
connected to
the nozzle
Installed with the Nozzle installed in the front of the
PG11, and a flexible tube connected from the nozzle
to the Duct flange. With the Environment shield
installed this solution works well doing gas with tests
when the air is flowing in the duck. Without the
Environment shield it is more difficult to do the Gas
test since the gas is faster diluted and therefore very
high flow on the test gas is required.
PGE11
Mounted in
Duct Flange
kit. Through
the rigid gas
pipe a gas
test can be
performed
Installed with a rigid gas pipe.
Can be challenging to perform gas tests if there is air
flow in the duct.
