Operating Manual PG11 / PGE11 Page 19
3.6 Sunshade
The PG11 can be fitted with a screen or roof keeping it from being exposed to direct sunlight heating the
detector up, or from snow, sand or similar that can accumulate on the detector. The sunshield is fitted as

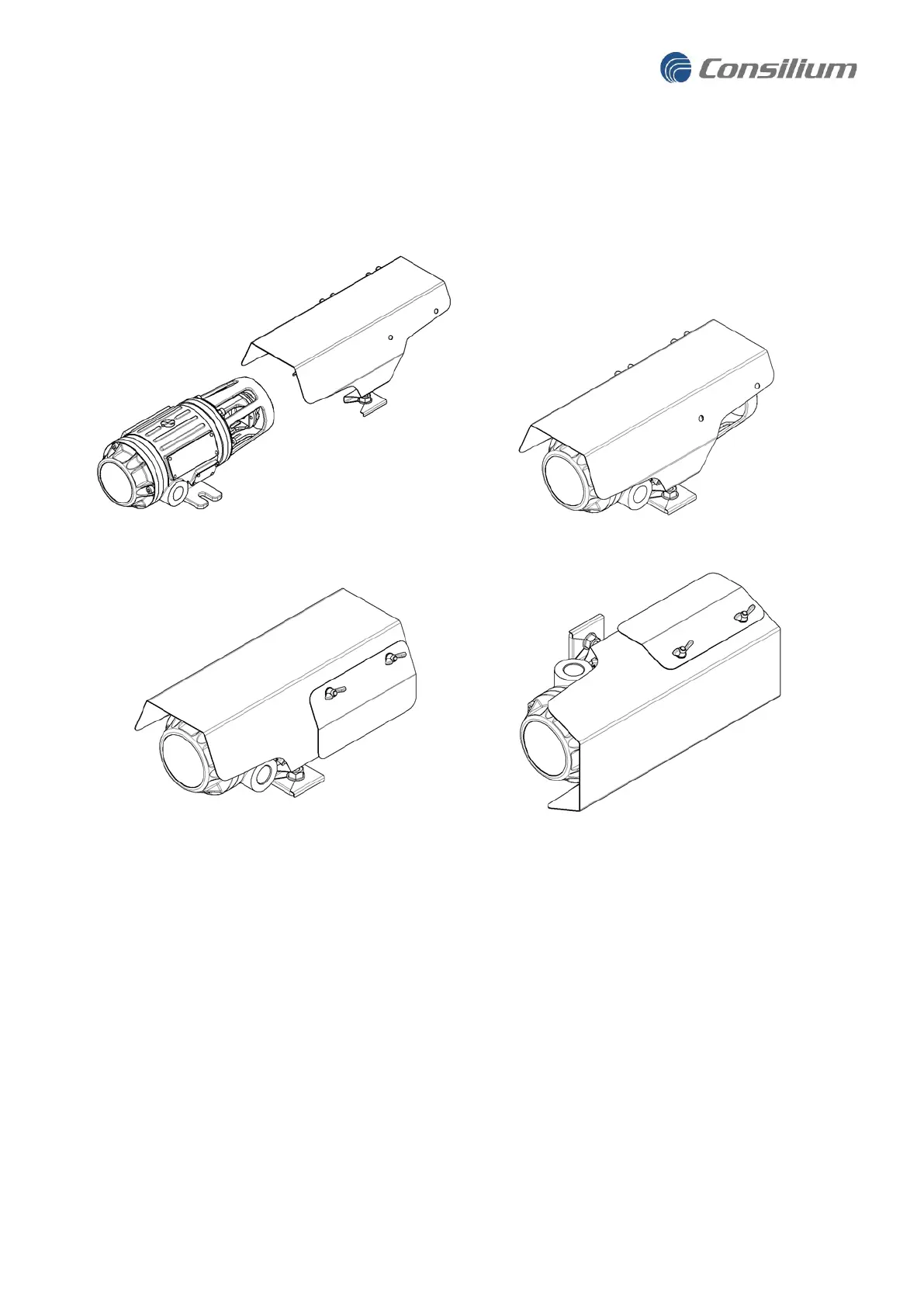

illustrated below. The sunshield is fixed with the same screws as the Detector.
The Sunshade is slided in from the front.
The Sunshade is secured with the same screws as
the Detector mounting.
The accessory Sunshade extension included in the
Sunshade kit can be used to give extra shielding in
some applications, but is normally not used for
horizontal mounting.
For wall or pole mounting it is recommended to use
the Sunshade extension to shield the detector from
direct sunlight, rain and snow.
