Contherm MITRE 4150 - Page 49

MANUALP/4000_SERVICE_0712 July2012
49
4. Pull one end of the inner door
seal to remove from the cabinet
body.
5. To replace, follow the same procedure as above considering the following
items:
a. Length of the seal to cover the whole cabinet border.
b. Clean the cabinet border before putting in a new seal.
c. Apply a thin coat of sealant on the cavity of the inner door seal.
d. Termination of the seal ends should be as tightly bound as possible.
e. Termination should be placed anywhere within the hinge side of the
cabinet border.
f. Check that the entire perimeter of the seal contacts the glass door
when it is closed.

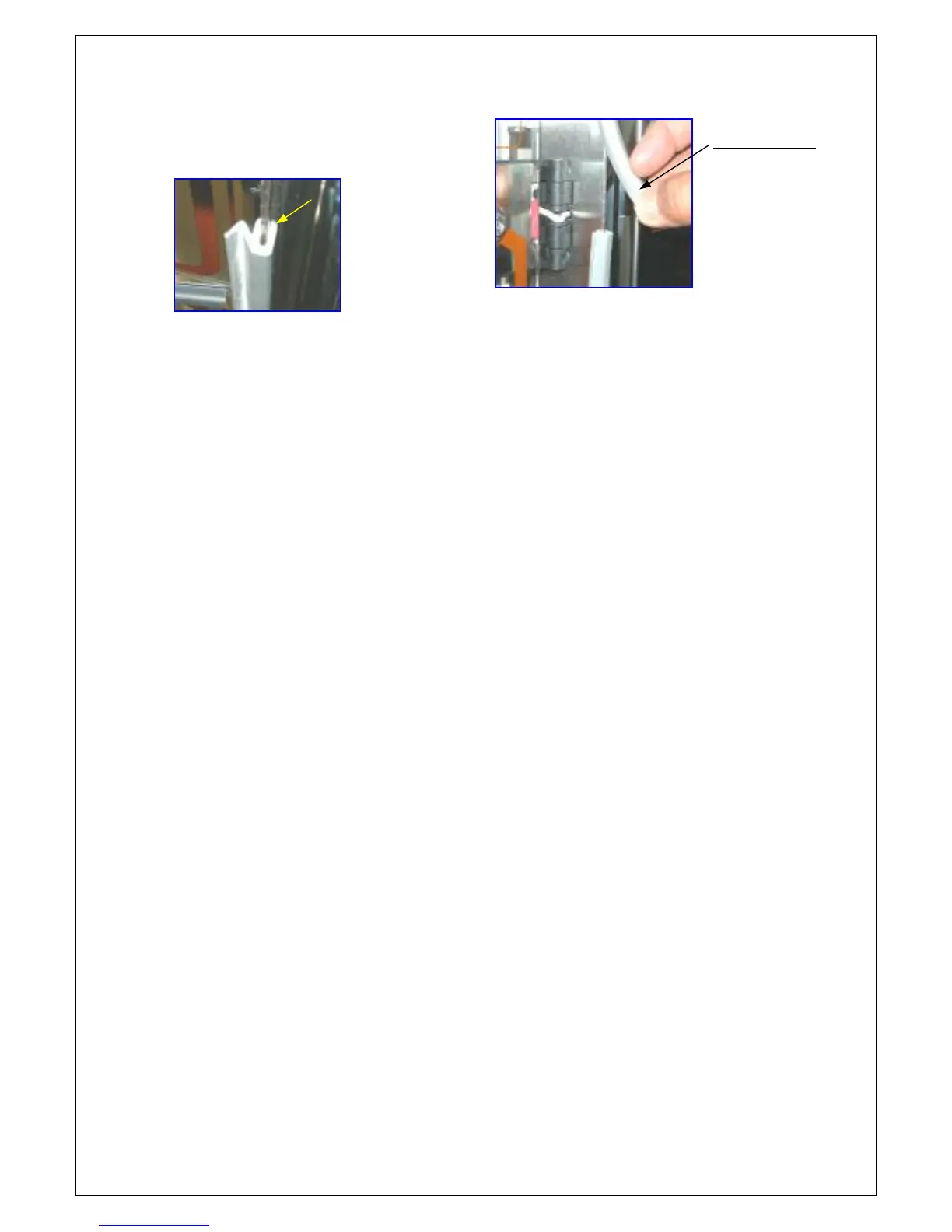

Pull one end of the
inner Door Seal
End to remove
Arrow points to
the cavity of the
inner door seal
that locks on to
the cabinet
border.
