Page 28

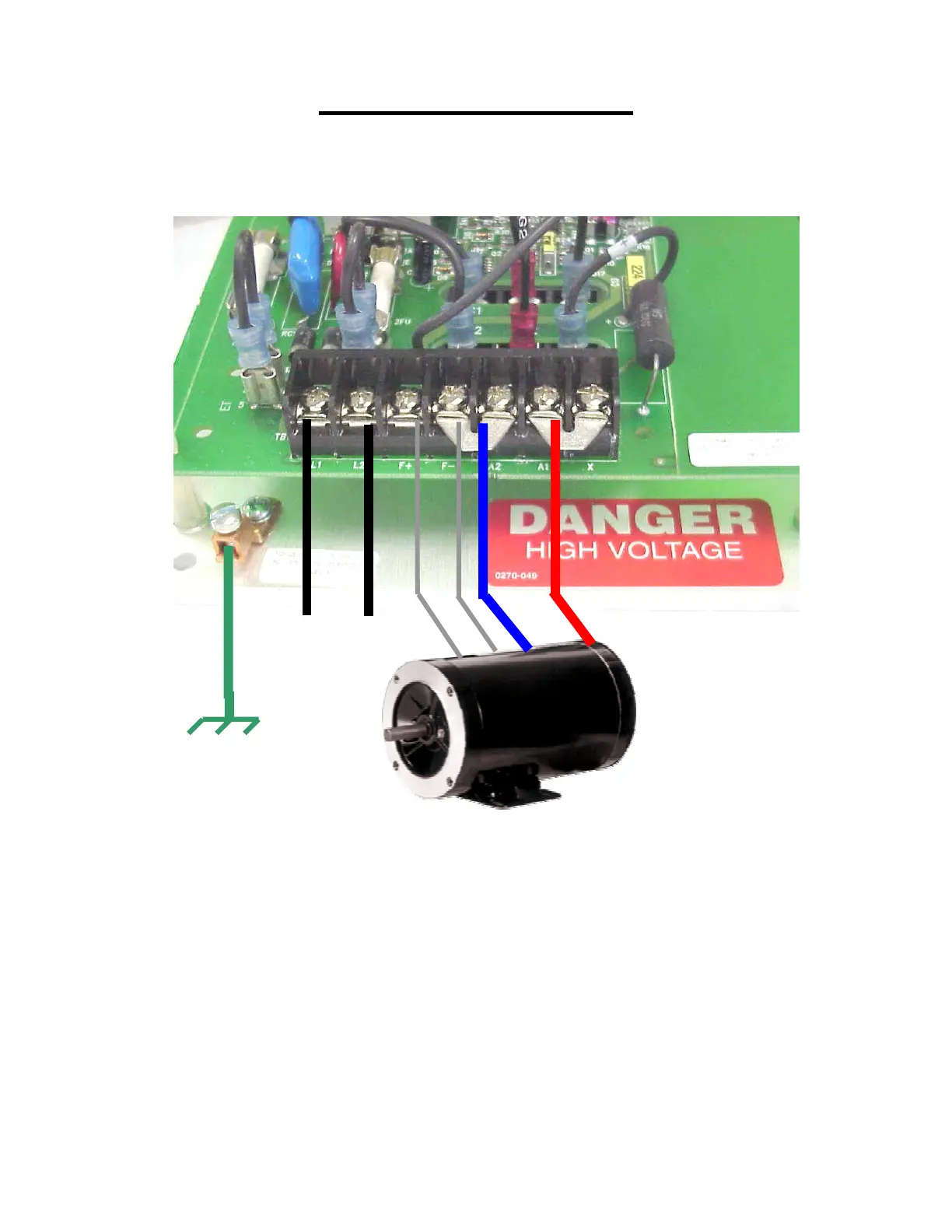

Drive Power Wiring
A+ & A- are the motor Armature leads
F+ & F- are a shunt wound motors Field leads
( they will not be present on
Permanent Magnet or Universal Motors )
Focus 1 Models
F+ F- A- A+
Earth
Connection
AC Line
Input
