Appendix C: Accessing X-600M Over the Internet X-600M Users Manual

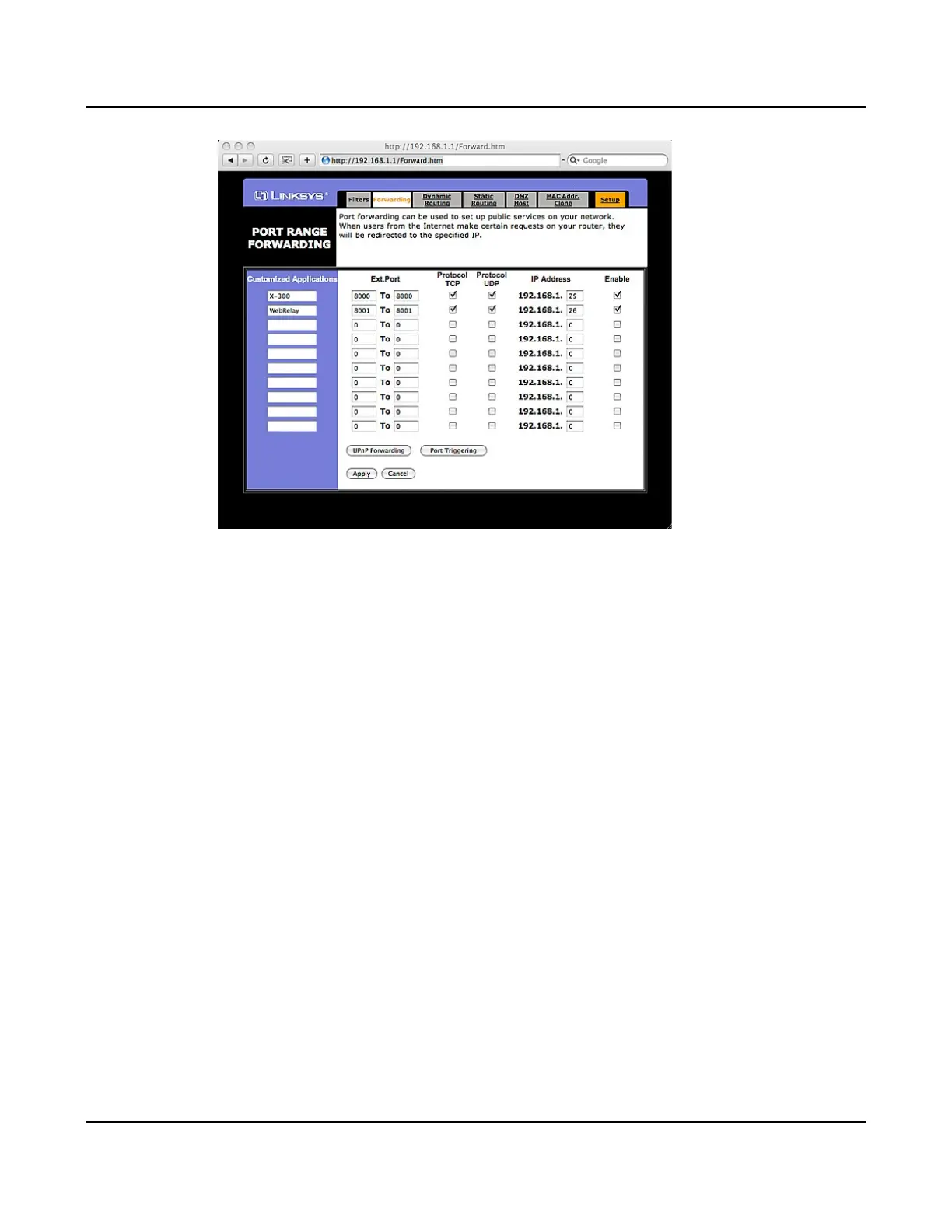

Note: This screen shot is simply an example of a typical router setup page. Router settings will vary.
Accessing Setup Pages
After changing ports, the setup pages are accessed on a local network as described below:
http://(Local IP Address):(Port Number)/setup.html
For example, to access the setup pages when the port is set to 8000, the following command would be
used:
http://192.168.1.25:8000/setup.html
To access the ControlByWeb devices from the Internet, enter the public IP address of the router plus the
port number of the desired device in the following format:
http://(Public IP Address of Router):(Port Number of Device)/setup.html
Using the example above, the following line would be used to access the setup page of X-600M:
http://266.70.164.97:8000/setup.html
Page 118 Xytronix Research & Design, Inc.
Port Range Forwarding
