Service Handbook OEB/OES/OGB/OGS

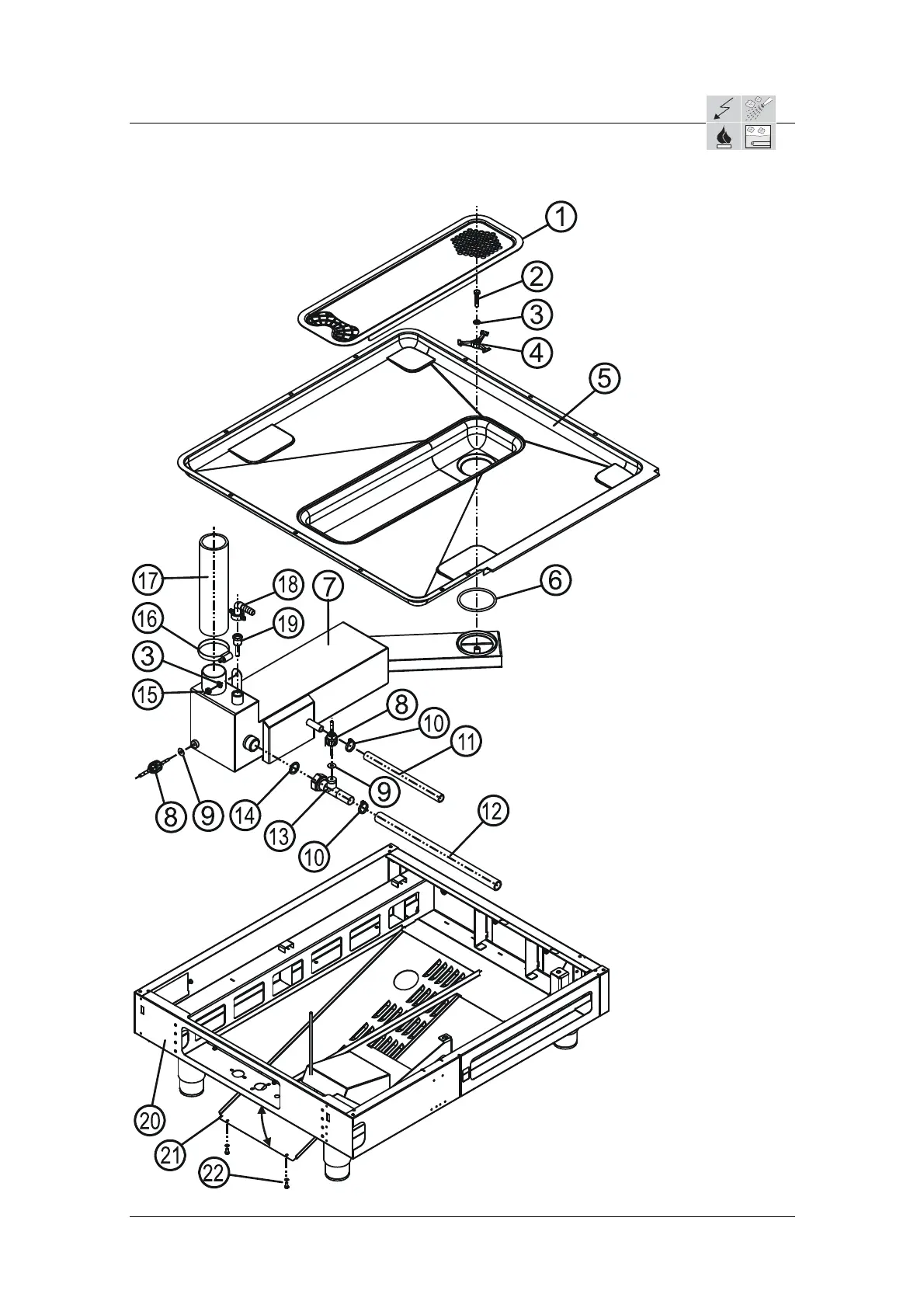

AS/11-2011 6_11e_Condenser removal and installation_b

1 = Cover

Demoisturizing tub

2 = Hexagon screw M6

3 = Washer 6,4

4 = Holder cross

condenser

5 = Oven chamber floor

6 = O-Ring 6015000

7 = Condenser

8 = Thermo couple probe

Standing unit 5002100

Table unit 5002101

9 = Thermo couple probe

seal 6005260

10 = Cable binder 4007087

11 = Hose to unit drip tray

12 = Bypass hose

13 = Bypass gauge pipe

2016007

14 = Copper seal 6015060

15 = Hexagon nut M6 self

locking 8004042

16 = Hose clamp

17 = Breather pipe

18 = Angle hose connection

19 = Insert nozzle

condenser

20 = Outer floor

21 = Floor clap

22 = Screw M5 with washer

Page 3 / 3

Installation Handbook2
Table of Contents4
Control Panels OEB/OES/OGB/OGS14
The Closed System Automatic Steam and Heat Circulation15
Basic Settings (Parallel to Cooking Programmes)16
- Standby Mode for Units with Steam Generator16
- Standby Mode for Units with Direct Injection17
- Outgoing Water Cooling18
- Demoisturizing in a Closed System (Crisp & Tasty)19
- Steam Generator Draining and Rinsing21
- Automatic Cleaning (Optional)23
- Water Flow Plan25
Safety Settings (Parallel to Cooking Programmes)27
- Door Safety Switch and Motor Break27
- Electronic Safety Switches29
- Electrical Safety Switches32
Functioning of the Cooking Programmes34
- Superheated Steam and Steaming over 100°C38
- Cook & Hold46
- Overview Chart: Processes and Probes in Units with Steam Generator47
- Steaming at 100°C47
- Steaming under 100°C47
- Overview Chart: Processes and Probes in Units with Direct Injection48
Gas Technology49
- Error Codes51
- Customer Service - Service Programme52
- Emergency Programme61
- Time Table for Necessary Cleaning Intervals73
- Automatic Flushing of the Steam Generator on Units with Steam Generator75
- Cleaning the Unit76
CONVOTHERM Descaling83
- Oven Descaling in Units with Direct Injection (OES / OGS)84
- Steam Generator Cleaning and Descaling (nur bei OEB und OGB)86
Yearly Maintenance Recommendations95
- Installation Check95
- Checking the Electrical Parts95
- Check and Visual Check98
- Check the Gas Technical Parts99
Installation Checklist100
General118
Steam Generator119
Condenser120
Motor121
Electronic121
- Error Codes128
Electronic Control Board Installation131
- Operation Module (BM) Replacement131
- Control Module (SM) Replacement133
- Arrangement Module Replacement135
- Gas Module (GM) Removal136
Steam Generator Drain Pump (Only OEB and OGB)153
- Safety Thermostat above Unit Ceiling on Table Units156
- Safety Thermostat Behind the Motor Fastening on Standing Units156
- Probe with Stuffing Box Assembly B10 (CTC)157
- Safety Thermostat Probe N8 on Flange Immersion Heater158
- Double Safety Thermostats B8 and B7.2 in Gas Units with Blower Burner159
- Screw in Probes B3, B4, B5 and Oven Probe B6159
Water Level Probe160
Steam Generator-Immersion Heater Replacement (Only OEB)162
Motor / Fan Wheel Installation and Removal163
Pressure Switch Cleaning System Trouble Shooting166
Dummy Operation for P3 - Units168
Condenser Removal and Installation169
Door Latch / Door Contact Switch Removal and Installation172
Using the Water Analysis Unit Article No.: 3019007174
Sealing the Corners on the Door Gasket Frame175
Inner and Outer Door Replacement178
Drip Tray for Overflow Protection182
Convection Heater Removal and Replacement184
Removing and Replacing the Convection Heat Exchanger185
Removing and Replacing the Burners188
Readjusting the Gas Valves191
Disappearing Door Replacement / Adjustment / Spare Part Replacement203
